cyberpower systems

CyberPower OL6KSTF OL6KSTF 2U 6

(No reviews yet) Write a Review
SKU:
18312076
MPN:
ol6kstf
Availability:
Usually ships in 2-3 business days. In stock at our CA, IL warehouses.
Shipping:
$315.79 (Fixed Shipping Cost)
Stock Update:
10/15/2026 03:54:50 PM PST
  • Main
  • Right
  • Rear
  • Left
  • Front
  • Alternate-Image7
  • Alternate-Image6
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
$2,112.95
Stock Update:
10/15/2026 03:54:50 PM PST
Frequently bought together:

Description



This item is brand-new, factory sealed.

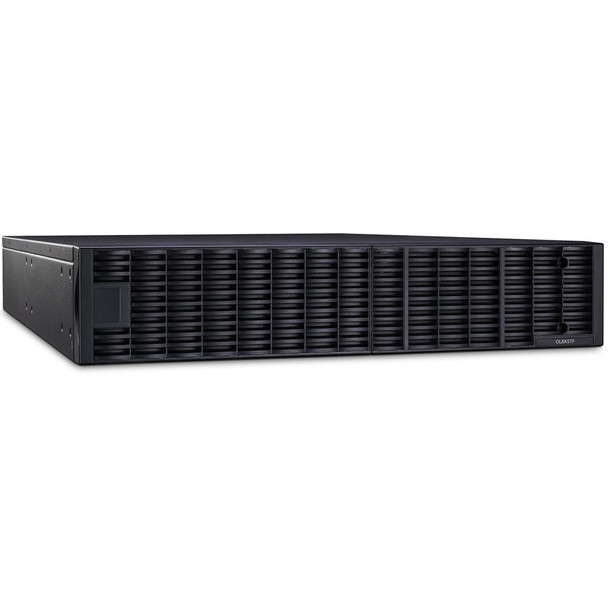

The CyberPower Smart App Online OL6KSTF rack/tower step-down isolation transformer converts 208 V input voltage originating from utility power, a UPS, or a generator to 120 V output. The included 6-foot cord (NEMA L6-30P plug to ROJ) connects the OL6KSTF to input power. Over temperature protection safeguards your OL6KSTF from damage if the internal heat exceeds safe operating parameters. The OL6KSTF has a capacity of 6,000 VA / 6,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.



Package Contents:
  • OL6KSTF Isolation/Step-Down Transformer
  • 6ft NEMA L6-30 Locking Male Plug to 3-wire ROJ (Remove Outer Jacket) Power Cable (L630PHW6FT)
  • 2 x Terminal Block Cable glands
  • Left & Right Rackmount Rails
  • Left & Right Hanging Brackets
  • Input/Output Terminal Block Cover
  • Quick Start Guide
  • Registration Card
  • 2U Rack Mount Ears (Tower Stands)
  • Tower Installation Tie Plate
  • 8 x M5X7L Black Flat Head Screws
  • 12 x M5X12L Black Pan an Head Screws
  • 6 x M5X6L silver pan head Screws
  • 8 x Plastic Washers
  • 12 x Screw Hole Dust Covers
  • 12 x Rubber Pads
  • Safety Instruction Card

Features

Package Contents:
  • OL6KSTF Isolation/Step-Down Transformer
  • 6ft NEMA L6-30 Locking Male Plug to 3-wire ROJ (Remove Outer Jacket) Power Cable (L630PHW6FT)
  • 2 x Terminal Block Cable glands
  • Left & Right Rackmount Rails
  • Left & Right Hanging Brackets
  • Input/Output Terminal Block Cover
  • Quick Start Guide
  • Registration Card
  • 2U Rack Mount Ears (Tower Stands)
  • Tower Installation Tie Plate
  • 8 x M5X7L Black Flat Head Screws
  • 12 x M5X12L Black Pan an Head Screws
  • 6 x M5X6L silver pan head Screws
  • 8 x Plastic Washers
  • 12 x Screw Hole Dust Covers
  • 12 x Rubber Pads
  • Safety Instruction Card



Certifications & Standards:
UL1778 5th Ed.



Additional Information:
  • Audible noise at 1m from surface of unit: 58 dBA
  • Current Rating: 30 A
  • Input Frequency Range: 50 Hz - 60 Hz
  • Input Plug Type: Hardwire Terminal (NEMA L6-30P power cord included)
  • Material of Construction: Metal
  • Maximum Input Current: 30A
  • Mounting Hardware: Yes
  • Over Temperature Protection: Yes
  • Storage Temperature: -4 - 113 °F (-20 - 45 °C)
  • Operating Relative Humidity: 0 - 90 % (non-condensing)
  • Storage Relative Humidity: 0 - 95% (non-condensing)
  • Operating Elevation: 0 - 10000 ft (0 - 3048 m)
  • Storage Elevation: 0 - 50000 ft (0 - 15239 m)
  • On AC WaveForm: Sine Wave
  • Outlets - Total: 7
  • Output Frequency: 50/60 Hz (auto-sensing/configurable)
  • Overload Protection: Circuit Breaker Protected
  • Step Down Thermal Dissipation: 1379 BTU/hr
  • USB Charge Port: No
    • /ul>



    Environmentally Friendly:
    Yes



    Energy Star:
    No



    Compatibility:
    • OL3000RTXL2UHV
    • OL5KRTHD
    • OL6KRT
    • OL6000RT3UPDU
    • OL6KRT3UHW
    • OL6KRTHD
    • OL6KRTHW
    • OL6KRTMB
    • OL8000RT3U
    • OL8000RT3UPDU
    • OL8KRT3UHW
    • OL8KRTHW
    • OL8KRTMB
    • OL10000RT3U
    • OL10000RT3UPDU
    • OL10KRT3HW
    • OL10KRTHW
    • OL10KRTMB



    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)



    Country of Origin:
    China



Specs

Power Description
Input Voltage230 V AC
Output Voltage120 V AC
Maximum Line Current30 A
Physical Characteristics
Form FactorTower/Rack Mountable
Weight (Approximate)95.50 lb
Product ColorBlack
Height3.5"
Color FamilyBlack
Width17.1"
Rack Height2U
Depth24"
Warranty
Limited Warranty3 Year
General Information
Brand NameCyberPower
Manufacturer Website Addresshttps://www.cyberpowersystems.com
Marketing InformationThe CyberPower Smart App Online OL6KSTF rack/tower step-down isolation transformer converts 200 V to 240 V input voltage originating from utility power, a UPS, or a generator to 120 V output.
The OL6KSTF has a capacity of 6,000 VA / 6,000 Watts. It features six (6) NEMA 5-20R receptacles that can support output to NEMA 5-15P and 5-20P plug power cords. A hardwire output terminal block provides a means to connect to an electrical subpanel.
The included 6-foot cord (NEMA L6-30P plug to ROJ) connects the OL6KSTF to input power. Over temperature protection safeguards your OL6KSTF from damage if the internal heat exceeds safe operating parameters.
A Three-Year Warranty ensures that this step-down transformer has passed our highest quality standards in design, assembly, material or workmanship.
Product TypeIsolation/Step-Down Transformer
Product NameOL6KSTF Step-down and Isolation Transformer
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberOL6KSTF
Product ModelOL6KSTF
Product SeriesUPS Hardware
Product LineSmart App Online
Technical Information
Power Rating6000 VA
Output Receptacle Detail6 x NEMA 5-20R
Output Receptacle TypeNEMA 5-20R
Cord Length72"
Input Receptacle TypeHardwired
Environmental Conditions
Maximum Operating Temperature104°F (40°C)
Minimum Operating Temperature32°F (0°C)
