CyberPower ATS PDU44006 10-Outlets PDU

(No reviews yet) Write a Review
SKU:
19154433
MPN:
pdu44006
Availability:
Usually ships the same or next business day. In stock at our CA, IL warehouses.
Shipping:
Calculated at Checkout
Stock Update:
07/28/2026 11:36:42 PM PST
  • Main
  • Right
  • Rear
  • Left
  • Alternate-Image2
  • Alternate-Image1
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
$1,195.95
Buy more, get it as low as $
Stock Update:
07/28/2026 11:36:42 PM PST
Frequently bought together:

Description



This item is brand-new, factory sealed.

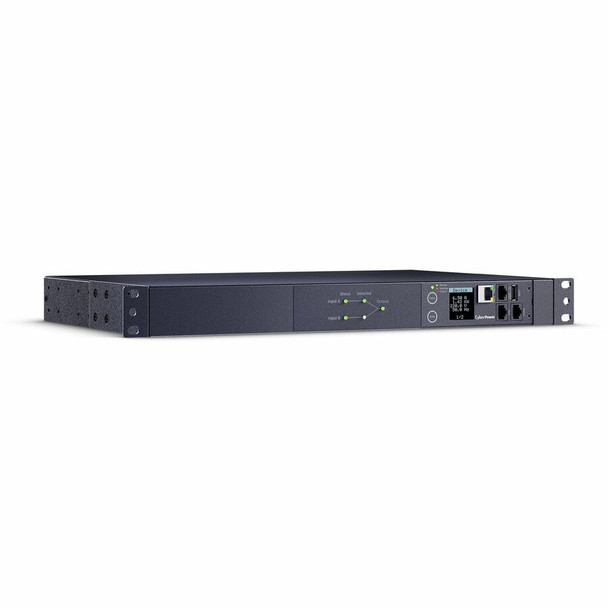

CyberPower PDU44006 Switched ATS PDU, 200-240V, 20A (Derated to 16A), 10 Outlets, 1U Rackmount
  • 200-240V/20A (derated to 16A) Metered ATS Power Distribution Unit (PDU) delivers AC power to servers, equipment, network/telecom devices; AUTOMATIC TRANSFER SWITCH: Dual power cords provide redundant power sources to devices with single power supplies
  • 8 REAR IEC-320 C13, 2 REAR IEC-320 C19 OUTLETS: Can be turned on/off, recycled on demand, at set times for remote rebooting, load shedding, power sequencing, & locking out unauthorized loads; INPUT: Two NEMA L6-20P input plugs with 10 foot power cords
  • SELECTABLE COLOR LCD PANEL: Displays immediate, detailed information on PDU conditions, including amperage, voltage, KW, IP Address, etc.; COMPATIBLE WITH: Sine wave AC power sources; NOT COMPATIBLE WITH: simulated sine wave AC power sources
  • REMOTE AND LOCAL MONITORING: User can track PDU vitals both offsite and onsite; Provides control to turn on/off individual outlets or circuits; AUTOMATIC EVENT NOTIFICATIONS: Provides immediate updates about power events via email, SMS, or SNMP traps
  • 1U RACKMOUNT: With durable metal housing; UPGRADEABLE FIRMWARE: allows users to download firmware updates to programs that run the PDU; 3-YEAR LIMITED WARRANTY
  • Package Dimensions: 21.65 x 15.67 x 4.9 inches
  • Item Weight: 14.5 pounds

Ensure continued operation of critical devices with the CyberPower PDU44006 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management. The PDU44006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44006 is protected by a three-year limited warranty.

Features

UL Listed:
Yes



Certifications & Standards:
  • UL62368
  • FCC Class A
  • cTUVus



Additional Information:
  • Cord Retention Tray/Cord Organizers: Yes
  • Derated Input Current: 16 A
  • Environmental Sensor: Optional, via RJ45
  • External Site Ground Pin: Yes
  • LED Indicators: Source Status
  • Modular Expandability (Cascading): Yes, via RJ45
  • Operating Elevation: 0 - 13123 ft (0 - 4000 m)
  • Storage Elevation: 0 - 49213 ft (0 - 14999 m)
  • Operating Relative Humidity: 0 - 95 % (non-condensing)
  • Outlet Banks: 1
  • Outlets - Total: 10
  • Overload Protection: None
  • Plug Style: Straight (Socket)
  • Power Source Transfer Time: 2-7 ms
  • Source Failure Detection Time: 2-3 ms
  • Total Transfer Time: <10 ms
  • Upgradeable firmware: Yes



Environmentally Friendly:
Yes



Application/Usage:

Data Center
Network Closet



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Specs

Power Description
Input Frequency60 Hz
Input Voltage Range200 V AC - 240 V AC
Input Voltage230 V AC
Output Voltage240 V AC
Output Voltage Range200 V AC - 240 V AC
Input Current20 A
Physical Characteristics
Product MaterialMetal
Form FactorRack
Weight (Approximate)8.30 lb
Cord Length10 ft
Product ColorBlack
Mount TypeRack-mountable
Height1.8"
Color FamilyBlack
Width17.1"
Rack Height1U
Depth8.5"
Warranty
Limited Warranty3 Year
Interfaces/Ports
Network (RJ-45)Yes
General Information
Brand NameCyberPower
Manufacturer Website Addresshttps://www.cyberpowersystems.com
Marketing Information Ensure continued operation of critical devices with the CyberPower PDU44006 Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.
The PDU44006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44006 is protected by a three-year limited warranty.
More from the Manufacturer
Product TypePDU
Product NamePDU44006
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberPDU44006
Product ModelPDU44006
Product SeriesATS
Technical Information
Plug/Connector Detail2 x NEMA L6-20P
Receptacle TypeIEC 60320 C13
Receptacle Detail8 x IEC 60320 C13
PhaseSingle Phase
Plug/Connector TypeNEMA L6-20P
PDU TypeSwitched
Locking ReceptaclesCord Retention Tray
FeaturesLCD Display
Management
Remote Outlet SwitchingYes
Management<ul><li>IPv4</li><li>TCP/IP</li><li>UDP</li><li>SNMPv1</li><li>HTTP</li><li>NTP</li><li>DNS</li><li>Telnet</li><li>DHCP</li><li>SMTP</li><li>FTP</li><li>IPv6</li><li>SNMPv3</li><li>HTTPs</li><li>SSH</li><li>SSL</li><li>TLS</li><li>LDAP(S)</li><li>RADIUS</li><li>Syslog</li><li>CLI</li><li>Windows AD</li></ul>
Environmental Conditions
Maximum Storage Temperature131&deg;F (55&deg;C)
Maximum Operating Temperature113&deg;F (45&deg;C)
Minimum Storage Temperature5&deg;F (-15&deg;C)
Minimum Operating Temperature32&deg;F (0&deg;C)
