cyberpower systems
CyberPower PR1000RTXL2UC New Smart App Sinewave UPS Systems
- SKU:
- 20427083
- MPN:
- pr1000rtxl2uc
- Availability:
- Usually ships the same or next business day. In stock at our GA, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 08/11/2026 03:58:58 AM PST
- Stock Update:
- 08/11/2026 03:58:58 AM PST
Description
This item is brand-new, factory sealed.

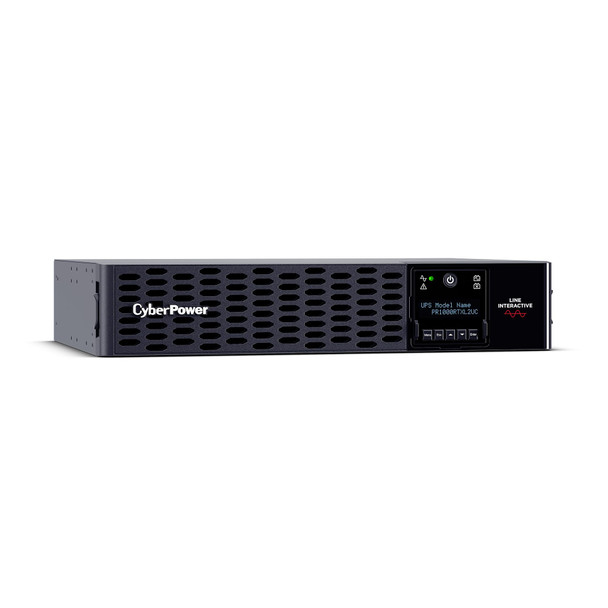

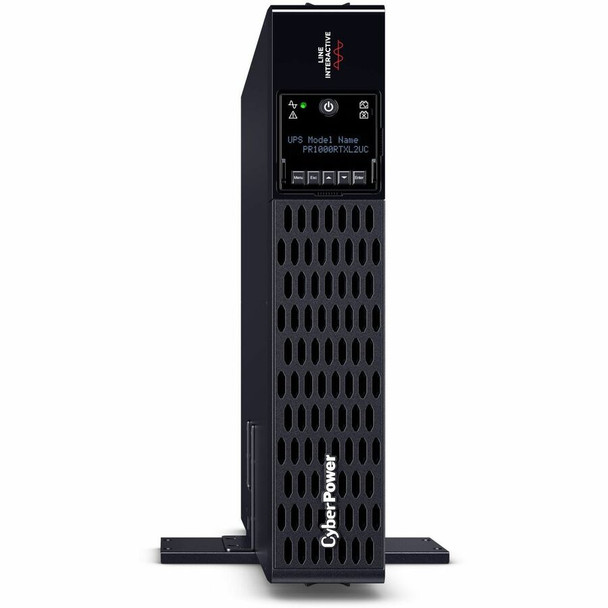

The PR1000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns.

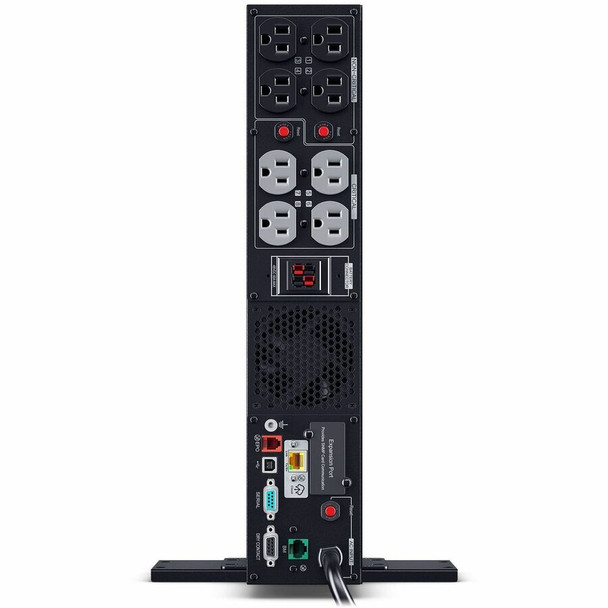

The Smart App Sinewave PR1000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options.
This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring.
With a $400,000 connected equipment guarantee and a threeyear warranty, you can trust CyberPower's commitment to the quality of the PR100RTXL2UC.
Features
UL1778
Additional Information:
Environmentally Friendly:
Yes
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Load Capacity (Watt) | 1000 W |
| Input Frequency |
|
| Output Power Factor | 1 |
| Surge Energy Rating | 2430 J |
| Input Voltage Range |
|
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage |
|
| Load Capacity (VA) | 1000 VA |
| Waveform Type | Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 55.30 lb |
| Product Color | Black |

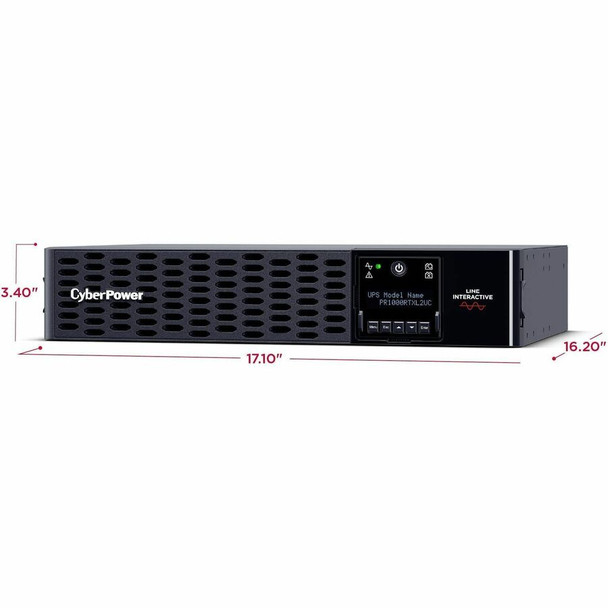

| Height | 3.40" |
| Color Family | Black |
| Width | 17.10" |
| Depth | 16.20" |
| Rack Height | 2U |
| Warranty | |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
| Additional Warranty Information | <p>Connected Equipment Guarantee: Lifetime</p> |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <p><b>LED Indicators:</b></p><ul><li> <b> ? </b>Power On </li><li> Line Mode</li><li> Battery Mode</li><li> Fault</li><li> Night Mode</li><li> Wiring Fault</li></ul> |
| Battery Information | |
| Backup/Run Time (Full Load) | 8 Minute |
| Number of Batteries | 4 |
| Battery Capacity | 7000 mAh |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 20 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Battery Characteristics | Sealed |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Marketing Information | The PR1000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series has sine wave output to eliminate power gaps that can be detected by sensitive equipment and cause unexpected shutdowns. The Smart App Sinewave PR1000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR1000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts the BP48VP2U01 Extended Battery Module (EBM) for expanded runtime during power outages and the RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built in cloud monitoring. With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR100RTXL2UC. More from the Manufacturer |
| Product Type | Line-interactive UPS |
| Product Name | PR1000RTXL2UC Smart App Sinewave UPS Systems |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR1000RTXL2UC |
| Product Model | PR1000RTXL2UC |
| Product Series | Smart App Sinewave |
| Technical Information | |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Number of Critical Load Outlets | 4 |
| EMI/RFI Noise Filter | Yes |
| Number of Battery & Surge Outlets | 8 |
| Surge Suppression | Yes |
| Transfer Time | 6 ms |
| Energy Saving | GreenPower UPS™ Bypass Technology |
| Overload Protection | Yes |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 10 ft |
| Application/Usage |
|
| AVR | Yes |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Operating Humidity | 0% - 95% |
| Thermal Dissipation | 14.24 W |
| Maximum Storage Elevation | 49213 ft |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9843 ft |
