cyberpower systems
Cyberpower Basic Pdu20bhvt12r 12-outlets Pdu - 12 X Iec 60320 C13 - 1u Rack-mountable, Zero U Vertical Rackmount
(No reviews yet)
Write a Review
- SKU:
- 18140014
- MPN:
- pdu20bhvt12r
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/26/2026 09:09:15 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 3 | and pay only $176.02 each 176.02 |
| Buy 4 or above | and pay only $168.01 each 168.01 |
- Stock Update:
- 07/26/2026 09:09:15 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

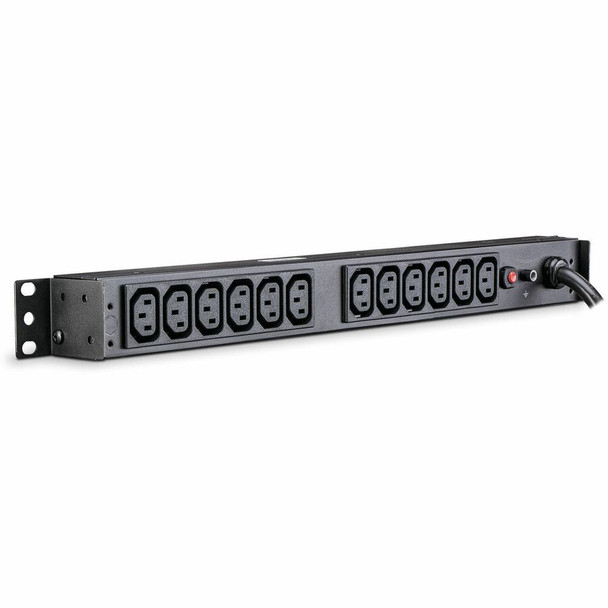

The CyberPower Basic PDU20BHVT12R 12-Outlets PDU provides 208V/230V 20A output. It distributes power to 12 IEC receptacles from a single NEMA L6-20P twist lock plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
Package Contents:
- Basic PDU20BHVT12R 12-Outlets PDU
- Cord Retention Tray
Features
Package Contents:
UL62368
Yes
No
Restriction of Hazardous Substances (RoHS)
- Basic PDU20BHVT12R 12-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
Certifications & Standards:
UL62368
Additional Information:
- Adjustable Mounting Brackets: 2 sets (L-Short, L-Long)
- Cord Retention Tray/Cord Organizers: Yes
- Derated Input Current: 16 A
- External Site Ground Pin: Yes
- Operating Elevation: 0 - 10000 ft (0 - 3048 m)
- Storage Elevation: 0 - 50000 ft (0 - 15239 m)
- Operating Relative Humidity: 0 - 95 % (non-condensing)
- Outlets - Front: 0
- Outlets - Rear: 12
- Outlets - Total: 12
- Overload Protection: 16A
- Plug Style: Straight (Twist Lock)
- USB Charge Port: No
Environmentally Friendly:
Yes
Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Input Voltage Range | 200 V AC - 230 V AC |
| Input Voltage | 230 V AC |
| Output Voltage Range | 200 V AC - 230 V AC |
| Input Current | 20 A |
| Physical Characteristics | |
| Product Material | Metal |
| Weight (Approximate) | 3.70 lb |
| Cord Length | 10 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Color Family | Black |
| Mounting Orientation | Vertical |
| Width | 17.5" |
| Rack Height | 1U |
| Depth | 1.5" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Marketing Information | The CyberPower PDU20BHVT12R, a 12-outlet (rear) rackmount basic power distribution unit (PDU), provides 208V/230V 20A output. It distributes power to 12 IEC-320 C13 receptacles from a single NEMA L6-20P twist lock plug with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, the PDU20BHVT12R has rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray, and is ETL/RoHS certified. A limited lifetime warranty covers defects in materials and workmanship in the product under normal use and conditions. |
| Product Type | PDU |
| Product Name | PDU20BHVT12R 200 - 230 VAC 20A Basic |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU20BHVT12R |
| Product Model | PDU20BHVT12R |
| Product Series | Basic PDU |
| Technical Information | |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 12 x IEC 60320 C13 |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L6-20P |
| PDU Type | Basic |
| Protection Type | Overload Protection |
| Environmental Conditions | |
| Maximum Storage Temperature | 113°F (45°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
