cyberpower systems
Cyberpower Maintenance Bypass Mbp30a5 - Nema L5-30p - 6 X Nema L5-30r - 120 V Ac - 1urack-mountable (mbp30a5)
(No reviews yet)
Write a Review
- SKU:
- 18243363
- MPN:
- mbp30a5
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 04/21/2026 11:44:41 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 or above | and pay only $416.61 each 416.61 |
- Stock Update:
- 04/21/2026 11:44:41 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.

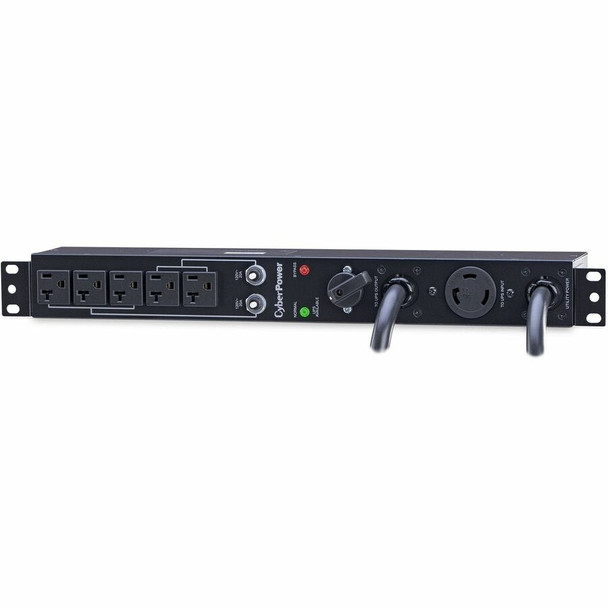

The CyberPower Maintenance Bypass PDU model MBP30A5 is designed to allow seamless transfer of an electrical load from UPS power to utility power for connected equipment. This allows connected equipment to operate seamlessly when performing maintenance, replacing batteries, or installing a new UPS. Set the unit to bypass, perform the updates and return it to normal when done.A 6ft AC cord is connected to utility power; a 3ft AC cord is connected to the output power of the UPS; the UPS draws input power from the MBP via a NEMA L5-30R. When the switch on the front of the MBP30A5 is turned, the power the MBP supplies to connected devices moves from one power source to another with the LED indicating which source is currently active. With a 1U form factor and included mounting hardware, it can fit in a server rack or be mounted to a UPS for a tower configuration.
A 3-year warranty ensures that this manual bypass switch is free of defects in design, assembly, material or workmanship.
Package Contents:
- Maintenance Bypass MBP30A5
- User's Manual
- Registration Card
- 2 x Rackmount Brackets
- 4 x M4X8L Screws
- 4 x M5X12L Screws
Features
Package Contents:

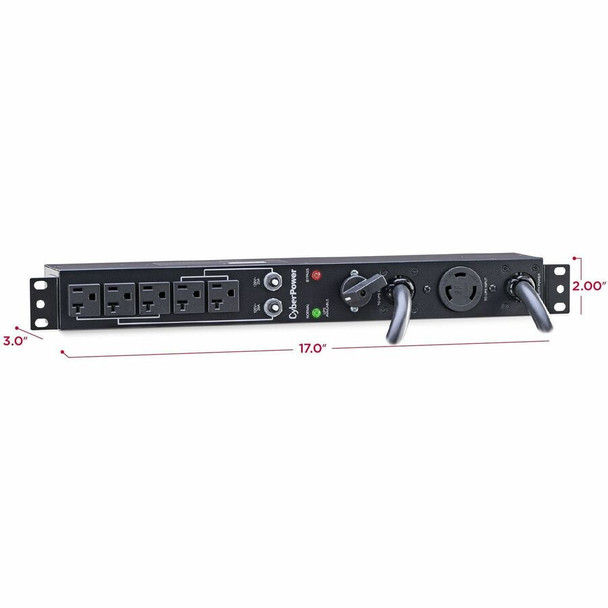

Physical Dimensions - (WxHxD) (cm) : 43.18 x 5.08 x 7.62 (cm) Physical Dimensions - (WxHxD) (in) : 17 x 2 x 3 (in) Physical Dimensions - (WxHxD) (mm) : 432 x 51 x 76 (mm) Weight (kg) : 2.68 Weight (lb) : 5.9 Shipping Dimensions - (WxHxD) (cm) : 24.77 x 6.6 x 50.17 (cm) Shipping - Dimensions (WxHxD, in) : 9.75 x 2.6 x 19.75 (in) Shipping - Dimensions (WxHxD, mm) : 247.65 x 66.04 x 501.65 (mm) Shipping - Weight (kg) : 9.3 Shipping - Weight (lb) : 20.5 Cord Length : 6 ft (1.8 m) Derated Input Current : 24 A Input Plug Type : 2 x NEMA L5-30P Input Voltage Range : 100 VAC - 120 VAC Maximum Input Current : 30A Outlet for UPS Input Power : NEMA L5-30R Plug to UPS Output : NEMA L5-30P Nominal Output Voltage : 120 VAC Outlets - Front : 0 Outlets - Rear : 5 Outlets - Total : 5 Outlet Type COMPUTED : 5 - NEMA 5-20R Overload Protection : None USB Charge Port : No Color : Black Form Factors Supported : 1U Rackmount Material of Construction : Metal Rack Height : 1U UPS Cord Length : 3.3 ft Utility Cord Length : 6 ft Operating Elevation : 0 - 10000 ft (0 - 3048 m) Operating Relative Humidity : 0 - 90 % (non-condensing) Operating Temperature : 32 - 104 °F (0 - 40 °C) Storage Elevation : 0 - 50000 ft (0 - 15239 m) Storage Temperature : -4 - 113 °F (-20 - 45 °C) Environmental : RoHS Compliant Safety : UL60950_1|cUL Extended Warranty Option : WEXT5YR-ACC1A Product Warranty : 3 Year Limited Warranty
Yes
No
Restriction of Hazardous Substances (RoHS)
China
- Maintenance Bypass MBP30A5
- 6-ft. utility cord
- 3.3-ft. UPS cord
- 2 x Rackmount Brackets
- 4 x Flat Head Screws M4X8L
- 4 x Pan Head Screws M5X12L
- User Manual
- Registration Card
Certifications & Standards:
- UL60950_1
- cUL
Additional Information:
Environmentally Friendly:
Yes
Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Input Current | 30 A |
| Physical Characteristics | |
| Weight (Approximate) | 5.90 lb |
| Cord Length | 6 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 2" |
| Color Family | Black |
| Width | 17" |
| Rack Height | 1U |
| Depth | 3" |
| Warranty | |
| Limited Warranty | 3 Year |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Marketing Information | The CyberPower MBP30A5, a 5-outlet (rear), 1U Maintenance Bypass Power Distribution Unit (MBP PDU), provides 100-120 VAC 30A output (derated to 24A) to 5 NEMA 5-20R receptacles. Designed for datacenters and other electrically demanding applications, the MBP30A5 allows the seamless transfer of an electrical load from UPS power to utility power for uninterrupted operation of connected equipment when performing maintenance, replacing batteries, or installing a new UPS. A 6-foot AC cord connects to utility power; a 3.3-foot AC cord connects to the output power of the UPS. The UPS draws input power from the MBP30A5 through a dedicated NEMA L5-30R separate from the outlets for connected devices. When the switch on the front of the MBP30A5 is turned from Normal to Bypass, or from Bypass to Normal, the power that the MBP supplies to connected devices moves from one input power source to another. The LED display indicates which power source is active. Rugged, industrial-grade metal housing protects the MBP30A5. With a 1U form factor, this PDU can be mounted in a standard server rack. Its mounting hardware also enables it to be connected to a UPS for tower configurations. The MBP30A5 is UL and RoHS compliant. A three-year limited warranty covers the PDU for three years and connected equipment for as long as you own the product. |
| Product Type | PDU |
| Product Name | MBP30A5 120 VAC 30A Maintenance Bypass |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | MBP30A5 |
| Product Model | MBP30A5 |
| Product Series | Maintenance Bypass |
| Technical Information | |
| Plug/Connector Detail | 2 x NEMA L5-30R |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 5 x NEMA 5-20R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA L5-30R |
| PDU Type | Hot-swappable |
