cyberpower systems

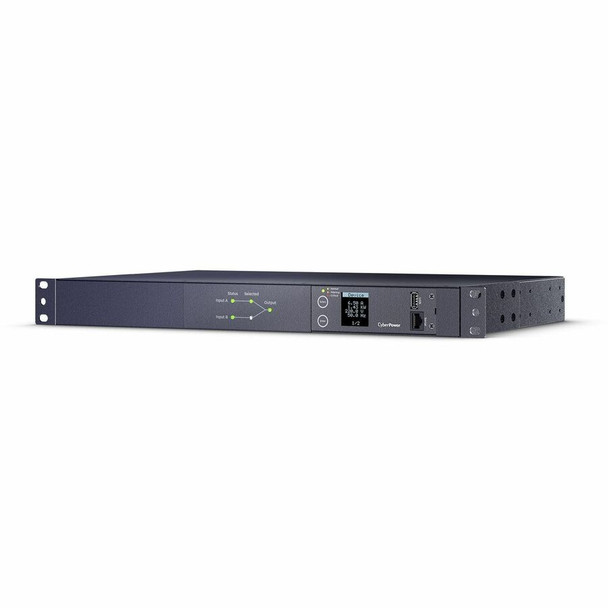

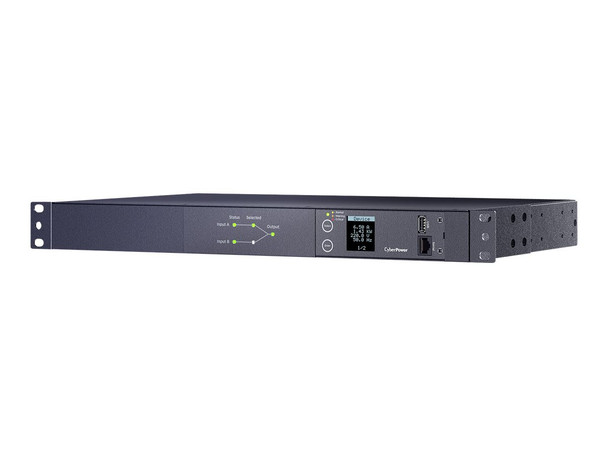

CyberPower Metered ATS PDU PDU24006 10-Outlets PDU

(No reviews yet) Write a Review
SKU:
19292901
MPN:
pdu24006
Availability:
Usually ships the same or next business day. In stock at our CA, IL, NJ warehouses.
Shipping:
Calculated at Checkout
Stock Update:
04/30/2026 11:43:50 PM PST
  • Right
  • Rear
  • Left
  • Alternate-Image2
  • Alternate-Image1
  • Main
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
$595.95
Buy more, get it as low as $
Stock Update:
04/30/2026 11:43:50 PM PST

Description



This item is brand-new, factory sealed.

CyberPower PDU24006 Metered ATS PDU, 200-240V, 20A (Derated to 16A), 10 Outlets, 2U Rackmount
  • 200-240V/20A (derated to 16A) Metered ATS Power Distribution Unit (PDU) delivers AC power to servers, equipment, network/telecom devices; AUTOMATIC TRANSFER SWITCH: Dual power cords provide redundant power sources to devices with single power supplies
  • 8 IEC-320 C13 and 2 IEC-320 C19 REAR OUTLETS: Can be turned on/off, recycled on demand, at set times for remote rebooting, load shedding, power sequencing, & locking out unauthorized loads; INPUT: Two NEMA L6-20P input plugs with 10 foot power cords
  • SELECTABLE COLOR LCD PANEL: Displays immediate, detailed information on PDU conditions, including amperage, voltage, KW, IP Address, etc.; COMPATIBLE WITH: Sine wave AC power sources; NOT COMPATIBLE WITH: simulated sine wave AC power sources
  • REMOTE AND LOCAL MONITORING: User can track PDU vitals both offsite and onsite; Provides control to turn on/off individual outlets or circuits; AUTOMATIC EVENT NOTIFICATIONS: Provides immediate updates about power events via email, SMS, or SNMP traps
  • 1U RACKMOUNT: With durable metal housing; UPGRADEABLE FIRMWARE: allows users to download firmware updates to programs that run the PDU; 3-YEAR LIMITED WARRANTY
  • Package Dimensions: 21.5 x 16 x 4.5 inches
  • Item Weight: 14.02 pounds

Ensure continued operation of critical devices with the CyberPower PDU24006 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. The PDU24006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, upgradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24006 is protected by a three-year limited warranty.

Features

UL Listed:
Yes



Certifications & Standards:
  • UL62368
  • FCC Class A
  • cTUVus



Additional Information:
  • Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 21.46 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 8.45 (in)
  • Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 215 (mm)
  • Weight (kg) : 4.99
  • Weight (lb) : 11
  • Shipping Dimensions - (WxHxD) (cm) : 54.99 x 12.45 x 39.8 (cm)
  • Shipping - Dimensions (WxHxD, in) : 21.65 x 4.9 x 15.67 (in)
  • Shipping - Dimensions (WxHxD, mm) : 549.91 x 124.46 x 398.02 (mm)
  • Shipping - Weight (kg) : 6.35
  • Shipping - Weight (lb) : 14
  • Cord Length : 10 ft (3.0 m)
  • Derated Input Current : 16 A
  • Input Frequency Range : 50 Hz - 60 Hz
  • Input Plug Type : 2 x NEMA L6-20P
  • Maximum Input Current : 20A
  • Nominal Input Voltage : 240 - 200 VAC
  • Phase : Single Phase
  • Plug Style : Straight (Socket)
  • Nominal Output Voltage : 240 - 200 VAC
  • Outlet Banks : 1
  • Outlets - Total : 10
  • Outlet Type COMPUTED : 8 - IEC-320 C13
  • Overload Protection : None
  • Power Source Transfer Time : 2-7 ms
  • Source Failure Detection Time : 2-3 ms
  • Total Transfer Time : <10 ms
  • Hardware Connection Port : Serial (RJ45)
  • LCD : Multifunction LCD
  • LED Indicators : Source Status
  • Upgradeable firmware : Yes
  • Color : Black
  • Cord Retention Tray/Cord Organizers : Yes
  • External Site Ground Pin : Yes
  • Form Factors Supported : 1U Rackmount
  • Material of Construction : Metal
  • Rack Height : 1U
  • Style : Rackmount
  • Operating Elevation : 0 - 13123 ft (0 - 4000 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 113 °F (0 - 45 °C)
  • Storage Elevation : 0 - 49213 ft (0 - 14999 m)
  • Storage Temperature : 5 - 131 °F (-15 - 55 °C)
  • Environmental : RoHS Compliant
  • Safety : UL62368 : FCC Class A : cTUVus
  • Extended Warranty Option : WEXT5YR-PDU1A
  • Product Warranty : 3 Year Limited Warranty

    •

    Environmentally Friendly:
    Yes



    Application/Usage:

    Data Center
    Network Closet



    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)



    Country of Origin:
    China



    Specs

    Power Description
    Input Frequency60 Hz
    Input Voltage Range200 V AC - 240 V AC
    Input Voltage230 V AC
    Output Voltage230 V AC
    Output Voltage Range200 V AC - 240 V AC
    Input Current20 A
    Physical Characteristics
    Product MaterialMetal
    Form FactorRack
    Weight (Approximate)11 lb
    Cord Length10 ft
    Product ColorBlack
    Mount TypeRack-mountable
    Height1.8"
    Color FamilyBlack
    Mounting OrientationHorizontal
    Width17.1"
    Rack Height1U
    Depth8.4"
    Warranty
    Limited Warranty3 Year
    Interfaces/Ports
    Network (RJ-45)Yes
    General Information
    Brand NameCyberPower
    Manufacturer Website Addresshttps://www.cyberpowersystems.com/
    Marketing Information Ensure continued operation of critical devices with the CyberPower PDU24006 Metered ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable.
    The PDU24006 supports inputs between 200-240V and includes (8) IEC C13 and (2) IEC C19 outlets. Dual NEMA L6-20P power cords are plugged into separate power sources (A and B), and information about each power source is provided via LED indicator lights on the front of the unit. Other features include an LCD with selectable background color, ugradeable firmware, and network-grade plugs and outlets. The CyberPower PDU24006 is protected by a three-year limited warranty.
    Product TypePDU
    Product NamePDU24006
    ManufacturerCyberPower Systems, Inc
    Manufacturer Part NumberPDU24006
    Product ModelPDU24006
    Product SeriesMetered ATS PDU
    Technical Information
    Plug/Connector Detail2 x NEMA L6-20P
    Receptacle Type
    • IEC 60320 C13
    • IEC 60320 C19
    Receptacle Detail
    • 8 x IEC 60320 C13
    • 2 x IEC 60320 C19
    PhaseSingle Phase
    Plug/Connector TypeNEMA L6-20P
    PDU TypeMetered
    Locking ReceptaclesCord Retention Tray
    Features
    • LCD Display
    • LED Status Indicator
    Environmental Conditions
    Maximum Storage Temperature131&deg;F (55&deg;C)
    Maximum Operating Temperature113&deg;F (45&deg;C)
    Minimum Storage Temperature5&deg;F (-15&deg;C)
    Minimum Operating Temperature32&deg;F (0&deg;C)
