Cyberpower Metered Pdu20m2f8r 10-outlets Pdu - 10 X Nema 5-20r - 1u Rack-mountable, Zero U Vertical Rackmount
- SKU:
- 18060352
- MPN:
- pdu20m2f8r
- Availability:
- Usually ships the same or next business day. In stock at our CA, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/25/2026 05:22:46 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 - 3 | and pay only $172.23 each 172.23 |
| Buy 4 - 6 | and pay only $169.30 each 169.3 |
| Buy 7 or above | and pay only $166.01 each 166.01 |
- Stock Update:
- 07/25/2026 05:22:46 PM PST
Description
This item is brand-new, factory sealed.

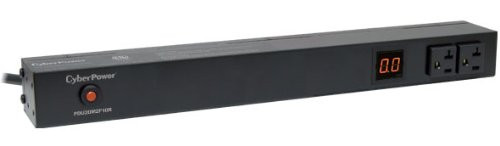

The CyberPower Metered PDU20M2F8R 10-Outlets PDU provides 120V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P plug, with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 15-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
Package Contents:
- Metered PDU20M2F8R 10-Outlets PDU
- Cord Retention Tray
Features
- Metered PDU20M2F8R 10-Outlets PDU
- Cord Retention Tray
- User Manual
- Screw Kit
- Cord Clip Kit
- Horizontal Mounting Brackets
- Vertical Mounting Brackets
- Product Registration Card
Certifications & Standards:
UL62368
Additional Information:
- Adjustable Mounting Brackets: 2 sets (L-Short, L-Long)
- Cord Retention Tray/Cord Organizers: Yes
- Derated Input Current: 16 A
- External Site Ground Pin: Yes
- Meter Readout: Amperage
- Operating Elevation: 0 - 10000 ft (0 - 3048 m)
- Storage Elevation: 0 - 50000 ft (0 - 15239 m)
- Operating Relative Humidity: 0 - 95 % (non-condensing)
- Outlets - Front: 2
- Outlets - Rear: 8
- Outlets - Total: 10
- Overload Protection: 20A
- Plug Style: Straight
- USB Charge Port: No
Environmentally Friendly:
Yes
Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Input Voltage Range | 100 V AC - 125 V AC |
| Input Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 125 V AC |
| Input Current | 20 A |
| Physical Characteristics | |
| Product Material | Metal |
| Weight (Approximate) | 5 lb |
| Cord Length | 15 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Color Family | Black |
| Mounting Orientation | Vertical |
| Width | 17.5" |
| Rack Height | 1U |
| Depth | 2.3" |
| Warranty | |
| Limited Warranty | Lifetime |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Marketing Information | The CyberPower PDU20M2F8R, a 10-outlet (2 front, 8 rear), rackmount metered power distribution unit (PDU), provides 100 – 125 V 20A output. It distributes power to 10 NEMA 5-20R receptacles from a single NEMA 5-20P input with unfiltered electrical pass-through. The current draw for connected equipment is displayed in amps on the front LCD for real-time load monitoring. |
| Product Type | PDU |
| Product Name | PDU20M2F8R 100 - 125 VAC 20A Metered |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU20M2F8R |
| Product Model | PDU20M2F8R |
| Product Series | Metered PDU |
| Technical Information | |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 10 x NEMA 5-20R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-20P |
| PDU Type | Metered |
| Protection Type | Overload Protection |
| Environmental Conditions | |
| Maximum Storage Temperature | 113°F (45°C) |
| Maximum Operating Temperature | 95°F (35°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
