Cyberpower Ol1500rtxl2un 1.5kva Online Ups 2u Sine Wave Lcd 100-125v Rmcard205 Rt 3yr Wty - 1500 Va/1350 W - 100 V Ac, 110 V Ac, 115 V Ac, 120 V Ac, 125 V Ac - 3 Minute - 2u Tower/rack (ol1500rtxl2un)

(No reviews yet) Write a Review
SKU:
18161810
MPN:
ol1500rtxl2un
Availability:
Out of stock
Stock Update:
12/12/2025 03:48:24 AM PST
  • Main
  • Right
  • Rear
  • Left
  • Front
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1
  • Alternate-Image6
  • Alternate-Image5
  • Life-Style
  • Top
  • Bottom
  • Alternate-Image9
  • Alternate-Image8
  • Alternate-Image7
  • Alternate-Image10

Out of stock

Stock Update:
12/12/2025 03:48:24 AM PST

Description



This item is brand-new, factory sealed.

A rack/tower UPS with double conversion topology, the CyberPower Smart App Online OL1500RTXL2UN provides sine wave output to mission-critical applications and equipment requiring seamless power protection. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode. The OL1500RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. This model can use the BP36V60ART2U Extended Battery Module for expanded runtime and faster restoration of full backup power with Fast Charge Technology. The RMCARD205, a remote management card that provides remote management and configuration of the UPS via a standard Web browser, command line interface (CLI), or network management system (NMS) comes pre-installed. The OL1500RTXL2UN comes with a three year warranty and a $400,000 Connected Equipment Guarantee.

Package Contents:
  • OL1500RTXL2UN 1.5KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY
  • User Manual
  • USB Cable
  • Phone Cable
  • Serial Cable
  • Registration Card
  • Mounting Hardware

Features

Package Contents:
  • OL1500RTXL2UN 1.5KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY
  • User Manual
  • USB Cable
  • Phone Cable
  • Serial Cable
  • Registration Card
  • Mounting Hardware



Certifications & Standards:
  • UL 1778
  • CSA C22.2 NO.107.3-05
  • FCC DOC Class B



Additional Information:
  • Replacement Battery Cartridge Quantity: 1
  • Smart Battery Management (SBM) Mode: Yes
  • Circuit Breaker: 15A
  • Cold Start: Yes
  • Input Power Factor: 0.99
  • Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
  • Crest Factor: 3:1
  • ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
  • Harmonic Distortion: < 3% at Linear Load
  • On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
  • Output Power Factor: 0.9
  • Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
  • Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
  • VA by Input Type: 1,500 (1.5 kVA) at 120, 125 V input
  • Watts by Input Type: 1,350 (1.4 kW) at 120, 125 V input
  • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
  • Dry Contacts: Yes
  • Expansion Slot: Yes - RMCARD205 pre-installed
  • LCD: Multifunction LCD
  • LED Indicators: Power On (White)
  • Management Cable: USB Cable
  • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
  • Rotatable LCD Control Panel Option: Yes
  • Serial Port: 1 Serial
  • Upgradeable firmware: Yes
  • Material of Construction: Metal
  • Mounting Hardware: Yes
  • ECO Mode Thermal Dissipation: 207 BTU/hr
  • Operating Elevation: 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity: 0 - 90 % (non-condensing)
  • Operating Temperature: 32 - 104 °F (0 - 40 °C)
  • Storage Elevation: 0 - 50000 ft (0 - 15239 m)



Environmentally Friendly:
Yes



Software Included:
PowerPanel® Business



Energy Star:
Yes



Environmental Compliance:
Restriction of Hazardous Substances (RoHS)



Country of Origin:
China



Specs

Power Description
Load Capacity (Watt)1350 W
Input Frequency
  • 40 Hz
  • 70 Hz
Output Power Factor0.9
Surge Energy Rating1780 J
Input Power Factor0.99
Input Voltage Range
  • 60 V AC - 69 V AC
  • 100 V AC - 125 V AC
Input Voltage120 V AC
Output Voltage
  • 100 V AC
  • 110 V AC
  • 115 V AC
  • 120 V AC
  • 125 V AC
Load Capacity (VA)1500 VA
Waveform TypeSine Wave
Output Frequency
  • 50 Hz
  • 60 Hz
Physical Characteristics
Form FactorRack/Tower
Weight (Approximate)39.60 lb
Product ColorBlack

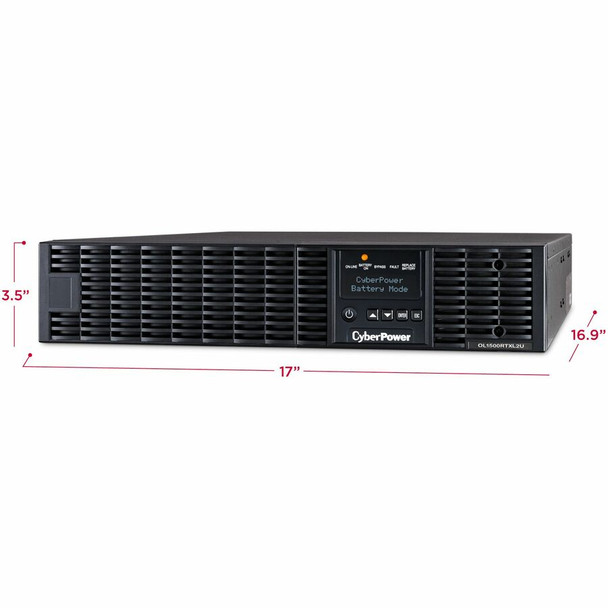

Height3.5"
Color FamilyBlack
Width17"
Rack Height2U
Depth16.9"
Warranty
Directly Connected Equipment Guarantee$400000 Lifetime
Limited Warranty3 Year
Controls/Indicators
Status Indicators<ul> <li>Power On </li> <li>Line Mode </li> <li>Battery Mode </li> <li>Bypass Mode </li> <li>Fault </li> <li>Replace Battery </li> </ul>
Battery Information
Backup/Run Time (Full Load)4 Minute
Number of Batteries3
Battery Capacity9000 mAh
Replaceable BatteryYes
Battery ChemistryLead Acid
Battery Size12V
Backup/Run Time (Half Load)12.50 Minute
Typical Battery Recharge Time4 Hour
Battery CharacteristicsSealed
Display & Graphics
DisplayLCD
General Information
Brand NameCyberPower
Manufacturer Website Addresshttps://www.cyberpowersystems.com/
Marketing InformationPrevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL1500RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL1500RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
More from the Manufacturer
Product TypeDouble Conversion Online UPS
Product NameOL1500RTXL2UN Smart App Online UPS Systems
ManufacturerCyberPower Systems, Inc
Manufacturer Part NumberOL1500RTXL2UN
Product ModelOL1500RTXL2UN
Product SeriesSmart App Online UPS
Technical Information
Receptacle TypeNEMA 5-15R
Receptacle Detail8 x NEMA 5-15R
EMI/RFI Noise FilterYes
Transfer Time0 ns
Crest Factor3:1
Energy SavingECO Mode Efficiency >95%
Overload ProtectionYes
Plug/Connector TypeNEMA 5-15P
Cord Length10 ft
Circuit Breaker Current Rating15 A
Dataline Protection
  • RJ-11
  • RJ-45
Protection TypeShort Circuit
Application/Usage
  • Mission Critical Equipment
  • Network Equipment
  • Generator
Management
Network Management
  • Dry Contact
  • Relay Card
  • SNMP/HTTP Remote Monitoring
Alarm
  • Battery Mode
  • Low Battery
  • Overload
  • UPS Fault
Interfaces/Ports
Modem (RJ-11)Yes
Network (RJ-45)Yes
USBYes
EPO PortYes
Serial PortYes
USB (HID Compliant) PortYes
Environmental Conditions
Operating Humidity0% - 90%
Thermal Dissipation140.09 W
Storage Relative Humidity0% - 95%
Maximum Storage Elevation50000 ft
Sound Emission (A-Weighted)55 dB(A)
Maximum Operating Temperature104&deg;F (40&deg;C)
Storage Temperature-4&deg;F (-20&deg;C) - 113&deg;F (45&deg;C)
Maximum Operating Elevation10000 ft
