cyberpower systems

CyberPower PDU31002 100 - 120 VAC 20A Monitored PDU (PDU31002)

(No reviews yet) Write a Review
SKU:
18269955
MPN:
pdu31002
Availability:
Out of stock
Stock Update:
11/25/2025 03:10:49 PM PST
  • Main
  • Right
  • Left
  • Alternate-Image2
  • Alternate-Image1

Out of stock

Stock Update:
11/25/2025 03:10:49 PM PST

Description



This item is brand-new, factory sealed.

120V (8) 5-20R Out (L)5-20P 12ft Cord 1U 3YR Wty

Package Contents:
  • PDU31002 8 Outlet PDU
  • 2 x Mounting Brackets Short/Long
  • 6 x (M5 x 12) Rack Mounting Screws/Washers
  • Cord Retention Tray
  • 12 x (Flat Head M4 x 8) Bracket Mounting Screws
  • 6 x (M3 x 6) Cord Retention Tray Mounting Screws
  • 12 x Cable Ties
  • RJ45/DB9 Serial Port Connection Cable
  • User's Manual
  • Registration & Software Download Cards
  • Adapter NEMA L5-20R to 5-20P

Features

UL Listed:
Yes



Package Contents:
  • PDU31002
  • Adaptor



Certifications & Standards:
  • UL 60950-1



Additional Information:
  • Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 11.2 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 4.41 (in)
  • Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 112 (mm)
  • Weight (kg) : 2.72
  • Weight (lb) : 6
  • Shipping Dimensions - (WxHxD) (cm) : 49.53 x 6.99 x 25.1 (cm)
  • Shipping - Dimensions (WxHxD, in) : 19.5 x 2.75 x 9.88 (in)
  • Shipping - Dimensions (WxHxD, mm) : 495.3 x 69.85 x 250.95 (mm)
  • Shipping - Weight (kg) : 9.19
  • Shipping - Weight (lb) : 20.25
  • Cord Length : 12 ft (3.7 m)
  • Derated Input Current : 16 A
  • Input Frequency Range : 50 Hz - 60 Hz
  • Input Plug Type : NEMA L5-20P (5-20P Adapter)
  • Maximum Input Current : 20A
  • Power Cord Length : 12 ft (4 m)
  • Circuit Quantity : 1
  • Nominal Output Voltage : 100 - 120 VAC
  • Number of Outlets : 8
  • Outlets - Total : 8
  • Outlet Type COMPUTED : 8 - NEMA 5-20R
  • Overload Protection : None
  • USB Charge Port : No
  • Environmental Sensor : Optional, via RJ45
  • Hardware Connection Port : RJ45
  • LCD : Multifunction LCD
  • Outlet switching : No
  • Protocols : IPv4|TCP/IP|UDP|SNMPv1|HTTP|NTP|DNS|Telnet|DHCP|SMTP|FTP|IPv6|SNMPv3|HTTPs|SSH|SSL|TLS|LDAP(S)|RADIUS|Syslog|CLI|Windows AD
  • Upgradeable firmware : Yes
  • Color : Black
  • Form Factors Supported : Horizontal or Vertical Wallmount
  • Material of Construction : Metal
  • Rack Height : 1U
  • Operating Elevation : 0 - 11483 ft (0 - 3500 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 131 °F (0 - 55 °C)
  • Storage Elevation : 0 - 49213 ft (0 - 14999 m)
  • Storage Temperature : 5 - 140 °F (-15 - 60 °C)
  • Environmental : RoHS Compliant
  • Safety : UL 60950-1
  • Extended Warranty Option : WEXT5YR-PDU1A
  • Product Warranty : 3 Year Limited Warranty

    •

    Energy Star:
    No



    Environmental Compliance:
    Restriction of Hazardous Substances (RoHS)



    Country of Origin:
    China



    Specs

    Power Description
    Input Frequency60 Hz
    Input Voltage Range100 V AC - 120 V AC
    Input Voltage120 V AC
    Output Voltage120 V AC
    Output Voltage Range100 V AC - 120 V AC
    Input Current20 A
    Physical Characteristics
    Weight (Approximate)6 lb
    Product ColorBlack
    Depth4.4"
    Product MaterialMetal
    Form FactorRack
    Cord Length12 ft
    Length4.4"
    Mount TypeRack-mountable
    Height1.8"
    Color FamilyBlack
    Mounting OrientationHorizontal/Vertical
    Width17.1"
    Rack Height1U
    Warranty
    Limited Warranty3 Year
    Interfaces/Ports
    Network (RJ-45)Yes
    General Information
    Brand NameCyberPower
    Manufacturer Website Addresshttps://www.cyberpowersystems.com/

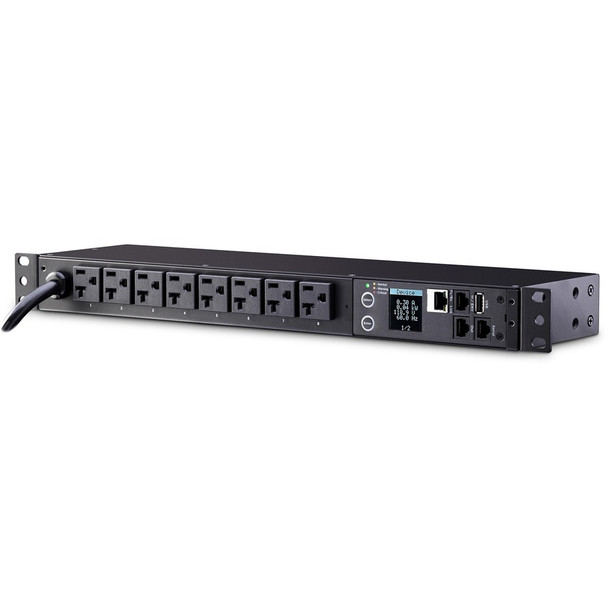

    Marketing InformationThe CyberPower PDU31002 an 8-outlet (front), 1U rackmount monitored power distribution unit (PDU), provides 120V 20A output. PDU31002 distributes power to 8 NEMA 5-20R receptacles from a single twist lock NEMA L5-20P, or, with the included adaptor, NEMA 5-20P plug with unfiltered electrical pass-through. Monitor power status over the network by using the CyberPower management console and the RJ45 Ethernet port for network connection. Monitor power status locally by using the LCD.
    Product TypePDU
    Product NamePDU31002
    ManufacturerCyberPower Systems, Inc
    Manufacturer Part NumberPDU31002
    Product ModelPDU31002
    Product SeriesMonitored PDU
    Technical Information
    Plug/Connector Detail1 x NEMA L5-20P
    Receptacle TypeNEMA 5-20R
    Receptacle Detail8 x NEMA 5-20R
    Plug/Connector TypeNEMA L5-20P
    PDU TypeMonitored
    FeaturesLCD Display
    Management
    Remote Outlet SwitchingNo
    Management<ul> <li>IPv4</li> <li>TCP/IP</li> <li>UDP</li> <li>SNMPv1</li> <li>HTTP</li> <li>NTP</li> <li>DNS</li> <li>Telnet</li> <li>DHCP</li> <li>SMTP</li> <li>FTP</li> <li>IPv6</li> <li>SNMPv3</li> <li>HTTPs</li> <li>SSH</li> <li>SSL</li> <li>TLS</li> <li>LDAP(S)</li> <li>RADIUS</li> <li>Syslog</li> <li>CLI</li> <li>Windows AD</li> </ul>
    Environmental Conditions
    Maximum Storage Temperature140&deg;F (60&deg;C)
    Maximum Operating Temperature131&deg;F (55&deg;C)
    Minimum Storage Temperature5&deg;F (-15&deg;C)
    Minimum Operating Temperature32&deg;F (0&deg;C)
