CyberPower
CyberPower PDU44001G Single Phase 100 - 120 VAC 15A Switched ATS
- SKU:
- 21600718
- MPN:
- pdu44001g
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/23/2026 11:03:52 AM PST
- Stock Update:
- 10/23/2026 11:03:52 AM PST
Description
This item is brand-new, factory sealed.
Ensure continued operation of critical devices with the CyberPower PDU44001G Gigabit Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management.

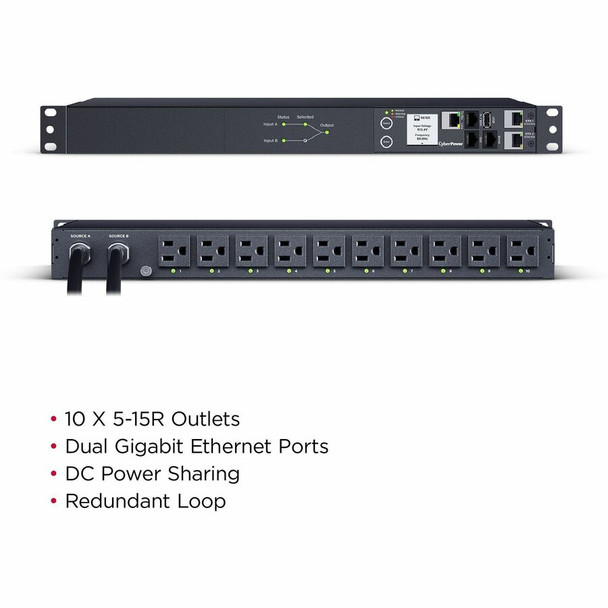

The PDU44001G supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include dual gigabit ethernet ports, DC power sharing, Redundant Loop, an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44001G is protected by a three-year limited warranty.
Features
- UL62368
- cTUVus
Application/Usage:
Data Center
Network Closet
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage | 120 V AC |
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Product Material | Metal |
| Weight (Approximate) | 10.01 lb |
| Cord Length | 9.84 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |

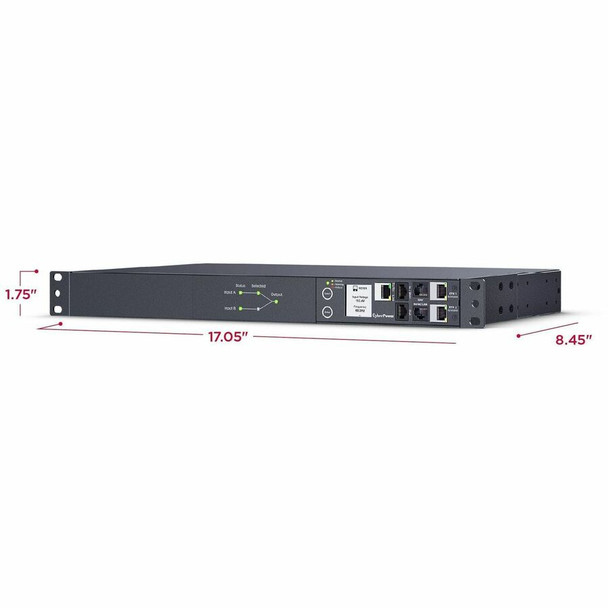

| Height | 1.8" |
| Color Family | Black |
| Mounting Orientation | Horizontal |
| Width | 17.1" |
| Rack Height | 1U |
| Depth | 8.5" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Marketing Information | Ensure continued operation of critical devices with the CyberPower PDU44001G Gigabit Switched ATS PDU. Ideal for data centers and network closets, this unit provides power redundancy to single-corded connected equipment. If power for the primary source exceeds the lower or upper thresholds, or if power fails, the PDU will switch to the secondary power source to ensure continuous operation. The PDU will switch back to the primary power source when incoming power becomes stable. Additionally, this unit offers real time remote and local monitoring and outlet management. The PDU44001G supports inputs between 100-120V and includes (10) NEMA 5-15R outlets. Dual NEMA 5-15P power cords are plugged into separate power sources (A and B), and information about each power source is clearly displayed on the front panel LED indicator lights. Other features include dual gigabit ethernet ports, DC power sharing, Redundant Loop, an LCD with selectable background color, built-in web interface, and power event notifications. The CyberPower PDU44001G is protected by a three-year limited warranty. |
| Product Type | PDU |
| Product Name | PDU44001G |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU44001G |
| Product Model | PDU44001G |
| Technical Information | |
| Plug/Connector Detail | 2 x NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 10 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| PDU Type |
|
| Locking Receptacles | Cord Retention Tray |
| Features |
|
| Management | |
| Remote Outlet Switching | Yes |
| Management | <ul><li>SNMP / HTTP Remote Monitoring</li><li>IPv4</li><li>TCP/IP</li><li>UDP</li><li>SNMPv1</li><li>HTTP</li><li>NTP</li><li>DNS</li><li>Telnet</li><li>DHCP</li><li>SMTP</li><li>FTP</li><li>IPv6</li><li>SNMPv3</li><li>HTTPs</li><li>SSH</li><li>SSL</li><li>TLS</li><li>LDAP(S)</li><li>RADIUS</li><li>Syslog</li><li>CLI</li><li>Windows AD</li></ul> |
| Environmental Conditions | |
| Maximum Storage Temperature | 131°F (55°C) |
| Maximum Operating Temperature | 113°F (45°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
Warranty Information
