cyberpower systems

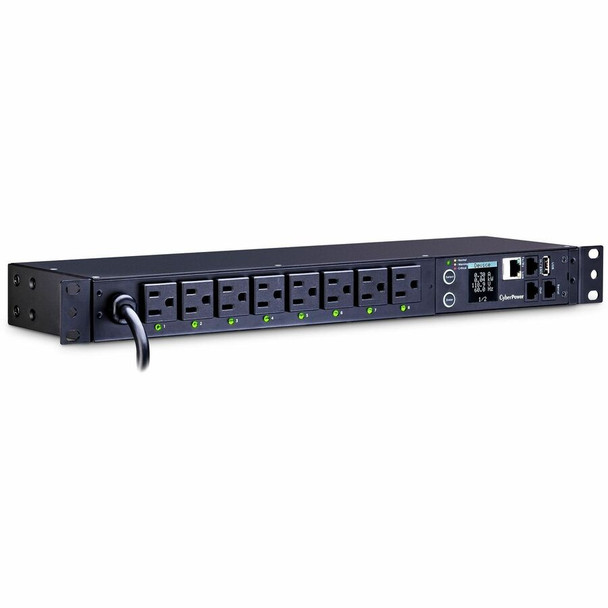

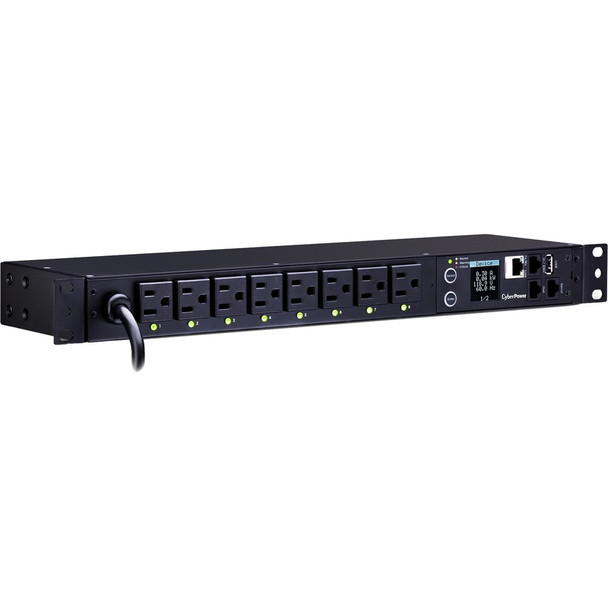

CyberPower PDU81001 Switched Metered-by-Outlet PDU, 100-120V, 15A, 8 Outlets [5-15R], 1U Rackmount
(No reviews yet)
Write a Review
- SKU:
- 18060356
- MPN:
- pdu81001
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 09/29/2026 03:50:41 AM PST
- Stock Update:
- 09/29/2026 03:50:41 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
Streamline capacity planning and power management with the CyberPower PDU81001 switched, metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, automated load shedding, controlled power-cycling and more.The PDU81001 supports inputs between 100-120V and includes eight (8) NEMA 5-15R outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81001 is protected by a three-year limited warranty.
- Provides active metering of each outlet, each circuit and PDU as a whole
- Allows for local and remote on/off switching control of individual outlets
- Provides immediate alerts about power events via email, SMS or SNMP traps
- Connects to your LAN/WAN via standard RJ45 Ethernet connection
- Includes 3-year limited warranty
Package Contents:
- PDU81001 8-Outlet PDU
- 2 x Short Mounting Brackets
- 2 x Long Mounting Brackets
- 12 x M4x8 Screws
- 6 x M5X12 Screws/Washers
- Cord Retention Tray
- 6 x M3x6 Screws
- 12 x Cable Ties
- RJ45/DB9 Serial Cable
- User's Manual
- Registration & Download Cards
Features
UL Listed:
Yes
UL62368
Yes
Restriction of Hazardous Substances (RoHS)
China
Yes
Package Contents:
- PDU81001
- 2 x Short Mounting Brackets
- 2 x Long Mounting Brackets
- 12 x M4x8 Screws
- 6 x M5X12 Screws/Washers
- Cord Retention Tray
- 6 x M3x6 Screws
- 12 x Cable Ties
- RJ45/DB9 Serial Cable
- User's Manual
- Registration & Download Cards
Certifications & Standards:
UL62368
Additional Information:
- Circuit Quantity: 1
- Derated Input Current: 12 A
- Environmental Sensor: Optional, via RJ45
- Number of Outlets: 8
- Operating Elevation: 0 - 11483 ft (0 - 3500 m)
- Storage Elevation: 0 - 49213 ft (0 - 14999 m)
- Operating Relative Humidity: 0 - 95 % (non-condensing)
- Outlets - Total: 8
- Overload Protection: None
- Upgradeable firmware: Yes
- USB Charge Port: No
Environmentally Friendly:
Yes
Application/Usage:
Data Center
Network Closet
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Input Frequency | 60 Hz |
| Power Rating (Watt) | 1800 W |
| Input Voltage Range | 100 V AC - 120 V AC |
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage |
|
| Output Voltage Range | 100 V AC - 120 V AC |
| Input Current | 15 A |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor | Rack |
| Weight (Approximate) | 5.73 lb |
| Cord Length | 12 ft |
| Product Color | Black |
| Mount Type | Rack-mountable |
| Height | 1.8" |
| Color Family | Black |
| Mounting Orientation | Horizontal |
| Width | 17.1" |
| Rack Height | 1U |
| Depth | 4.4" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Marketing Information | Streamline capacity planning and power management with the CyberPower PDU81001 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more. The PDU81001 supports inputs between 100-120V and includes eight (8) NEMA 5-15R outlets. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81001 is protected by a three-year limited warranty. |
| Product Type | PDU |
| Product Name | PDU81001 |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PDU81001 |
| Product Model | PDU81001 |
| Product Series | Switched Metered-by-Outlet PDU |
| Technical Information | |
| Load Capacity (Watt) | 1800 W |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| PDU Type | Switched with Metered-by-Outlet |
| Features | LCD Display |
| Management | |
| Remote Outlet Switching | Yes |
| Management | <ul><li>IPv4</li><li>TCP/IP</li><li>UDP</li><li>SNMPv1</li><li>HTTP</li><li>NTP</li><li>DNS</li><li>Telnet</li><li>DHCP</li><li>SMTP</li><li>FTP</li><li>IPv6</li><li>SNMPv3</li><li>HTTPs</li><li>SSH</li><li>SSL</li><li>TLS</li><li>LDAP(S)</li><li>RADIUS</li><li>Syslog</li><li>CLI</li><li>Windows AD</li></ul> |
| Environmental Conditions | |
| Maximum Storage Temperature | 149°F (65°C) |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Storage Temperature | 5°F (-15°C) |
| Minimum Operating Temperature | 32°F (0°C) |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
