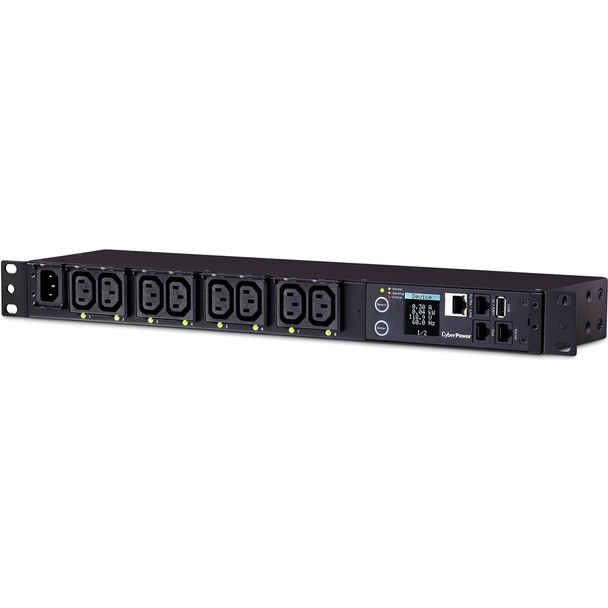

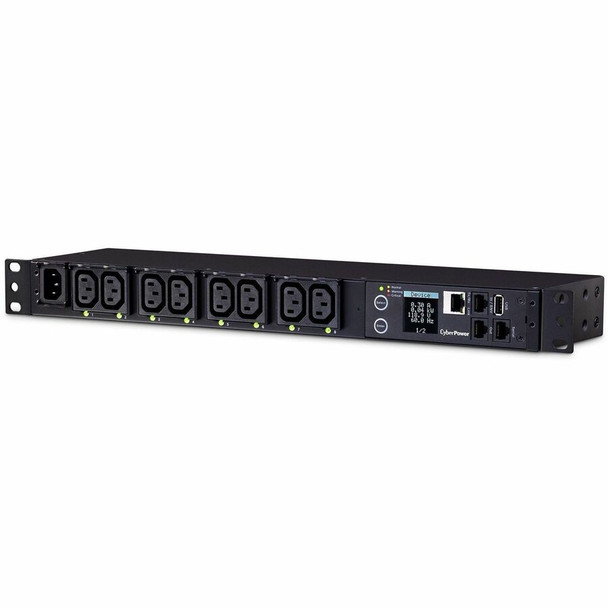

CyberPower PDU81004 Switched Metered-by-Outlet PDU, 100-240V, 15A, 8 Outlets [C13], 1U Rackmount

(No reviews yet) Write a Review
SKU:
18552560
MPN:
pdu81004
Availability:
Out of stock
Stock Update:
09/29/2025 05:40:27 AM PST
  • Right
  • Left
  • Main
  • Alternate-Image2
  • Alternate-Image1

Out of stock

Stock Update:
09/29/2025 05:40:27 AM PST

Description



This item is brand-new, factory sealed.

Streamline capacity planning and power management with the CyberPower PDU81004 switched, metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, automated load shedding, controlled power-cycling and more. The PDU81004 supports inputs between 100-240V and includes eight (8) IEC C13 outlets and a single IEC C14 input power plug. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81004 is protected by a three-year limited warranty.
  • Provides active metering of each outlet, each circuit and PDU as a whole
  • Allows for local and remote on/off switching control of individual outlets
  • Provides immediate alerts about power events via email, SMS or SNMP traps
  • Connects to your LAN/WAN via standard RJ45 Ethernet connection
  • Includes 3-year limited warranty


Package Contents:
  • PDU81004 8-Outlet PDU
  • 2 x Short Mounting Brackets
  • 2 x Long Mounting Brackets
  • 12 x M4x8 Screws
  • 6 x M5X12 Screws/Washers
  • Cord Retention Tray
  • 6 x M3x6 Screws
  • 27 x Cable Ties
  • RJ45/DB9 Serial Cable
  • User's Manual
  • Registration & Download Cards

Features

UL Listed:
Yes



Package Contents:
  • PDU81004
  • 2 x Short Mounting Brackets
  • 2 x Long Mounting Brackets
  • 12 x M4x8 Screws
  • 6 x M5X12 Screws/Washers
  • Cord Retention Tray
  • 6 x M3x6 Screws
  • 27 x Cable Ties
  • RJ45/DB9 Serial Cable
  • User's Manual
  • Registration & Download Cards



Certifications & Standards:

UL62368




Additional Information:
  • Physical Dimensions - (WxHxD) (cm) : 43.31 x 4.45 x 11.2 (cm)
  • Physical Dimensions - (WxHxD) (in) : 17.05 x 1.75 x 4.41 (in)
  • Physical Dimensions - (WxHxD) (mm) : 433 x 44 x 112 (mm)
  • Weight (kg) : 2.1
  • Weight (lb) : 4.63
  • Shipping Dimensions - (WxHxD) (cm) : 25.1 x 6.78 x 50.17 (cm)
  • Shipping - Dimensions (WxHxD, in) : 9.88 x 2.67 x 19.75 (in)
  • Shipping - Dimensions (WxHxD, mm) : 250.95 x 67.82 x 501.65 (mm)
  • Shipping - Weight (kg) : 9.24
  • Shipping - Weight (lb) : 20.38
  • Cord Length : 10 ft (3.0 m)
  • Derated Input Current : 12 A
  • Input Frequency Range : 50 Hz - 60 Hz
  • Input Plug Type : IEC-320 C14
  • Maximum Input Current : 15A
  • Nominal Input Voltage : 100 - 240 VAC
  • Power Cord Length : 10 ft (3 m)
  • Circuit Quantity : 1
  • Nominal Output Voltage : 100 - 120 VAC
  • Number of Outlets : 8
  • Outlets - Total : 8
  • Outlet Type COMPUTED : 8 - IEC-320 C13
  • Overload Protection : None
  • USB Charge Port : No
  • Environmental Sensor : Optional, via RJ45
  • Hardware Connection Port : RJ45
  • LCD : Multifunction LCD
  • Outlet switching : Yes
  • Protocols : IPv4|TCP/IP|UDP|SNMPv1|HTTP|NTP|DNS|Telnet|DHCP|SMTP|FTP|IPv6|SNMPv3|HTTPs|SSH|SSL|TLS|LDAP(S)|RADIUS|Syslog|CLI|Windows AD
  • Upgradeable firmware : Yes
  • Color : Black
  • Form Factors Supported : 1U Rackmount
  • Material of Construction : Metal
  • Rack Height : 1U
  • Operating Elevation : 0 - 11483 ft (0 - 3500 m)
  • Operating Relative Humidity : 0 - 95 % (non-condensing)
  • Operating Temperature : 32 - 140 °F (0 - 60 °C)
  • Storage Elevation : 0 - 49213 ft (0 - 14999 m)
  • Storage Temperature : 5 - 149 °F (-15 - 65 °C)
  • Safety : UL62368
  • Extended Warranty Option : WEXT5YR-PDU1B
  • Product Warranty : 3 Year Limited Warranty

    •

    Application/Usage:

    Data Center
    Network Closet



    Country of Origin:
    China



    Specs

    Power Description
    Input Frequency60 Hz
    Input Voltage Range100 V AC - 240 V AC
    Input Voltage
    • 120 V AC
    • 230 V AC
    Output Voltage Range100 V AC - 120 V AC
    Input Current15 A
    Physical Characteristics
    Product MaterialMetal
    Form FactorRack
    Weight (Approximate)4.63 lb
    Cord Length10 ft
    Product ColorBlack
    Mount TypeRack-mountable
    Height1.8"
    Color FamilyBlack
    Width17.1"
    Rack Height1U
    Depth4.4"
    Warranty
    Limited Warranty3 Year
    Interfaces/Ports
    Network (RJ-45)Yes
    General Information
    Brand NameCyberPower
    Manufacturer Website Addresshttps://www.cyberpowersystems.com/
    Marketing InformationStreamline capacity planning and power management with the CyberPower PDU81004 switched metered-by-outlet PDU. Ideal for data centers and network closets, this unit provides outlet-level power monitoring in real time, along with individual outlet control for remote reboots, load shedding, controlled power-cycling and more.
    The PDU81004 supports inputs between 100-240V and includes eight (8) IEC C13 outlets and a single IEC C14 input power plug. Other features include a rack mount design (1U), built-in web interface (RJ-45 ethernet connection), interactive digital display and power event notifications. The CyberPower PDU81004 is protected by a three-year limited warranty.
    Product TypePDU
    Product NamePDU81004
    ManufacturerCyberPower Systems, Inc
    Manufacturer Part NumberPDU81004
    Product ModelPDU81004
    Product SeriesSwitched Metered-by-Outlet PDU
    Technical Information
    Receptacle TypeIEC 60320 C13
    Receptacle Detail8 x IEC 60320 C13
    PhaseSingle Phase
    Plug/Connector TypeIEC 60320 C14
    PDU Type
    • Switched
    • Metered-by-Outlet
    FeaturesLCD Display
    Management
    Remote Outlet SwitchingYes
    Management<ul><li>IPv4</li><li>TCP/IP</li><li>UDP</li><li>SNMPv1</li><li>HTTP</li><li>NTP</li><li>DNS</li><li>Telnet</li><li>DHCP</li><li>SMTP</li><li>FTP</li><li>IPv6</li><li>SNMPv3</li><li>HTTPs</li><li>SSH</li><li>SSL</li><li>TLS</li><li>LDAP(S)</li><li>RADIUS</li><li>Syslog</li><li>CLI</li><li>Windows AD</li></ul>
    Environmental Conditions
    Maximum Storage Temperature149&deg;F (65&deg;C)
    Maximum Operating Temperature140&deg;F (60&deg;C)
    Minimum Storage Temperature5&deg;F (-15&deg;C)
    Minimum Operating Temperature32&deg;F (0&deg;C)
