Description

This item is brand-new, factory sealed.

Provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility. It features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. System VA: 1500 VA; Backup Time at Half Load: 10 minutes @ 500 Watts; Battery Recharge Time: 8 h; Connected Equipment Guarantee/Warranty: Lifetime $500,000.

Supplies power long enough for equipment to properly shut down when utility power fails.

Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.

Multifunction LCD panel displays immediate, detailed information on the UPS battery and power conditions.

Rapidly charge and power USB devices whether the UPS is providing utility or battery backup power.

Global Product Type:Backup Systems

System VA:1500 VA

Backup Time at Half Load:10 minutes @ 500 Watts

Battery Recharge Time:8 h

Connected Equipment Guarantee/Warranty:Lifetime $500,000

Backup Time at Full Load:2.5 minutes @ 1000 Watts

Connector/Port/Interface:USB

Joules Of Surge Protection:1030 J

Number of Outlets:10

Diagnostics/Alarm/Status Light:Alarm

Diagnostics/Alarm/Status Light:LED

React Time:4 ms

Cord Length:5 ft

Housing Material:Plastic

Color(s):Black

Width:3.9"

Height:10.4"

Depth:14.2"

Alarm(s):Audible

Emergency Power Off (EPO):No

Input Frequency:57-63 Hz

Model Name/Number:PFC Sinewave CP1500PFCLCD

Number of Outlets/Type:6 UPS/Surge

Number of Outlets/Type:6 Surge Only

Weight:24.7 lbs

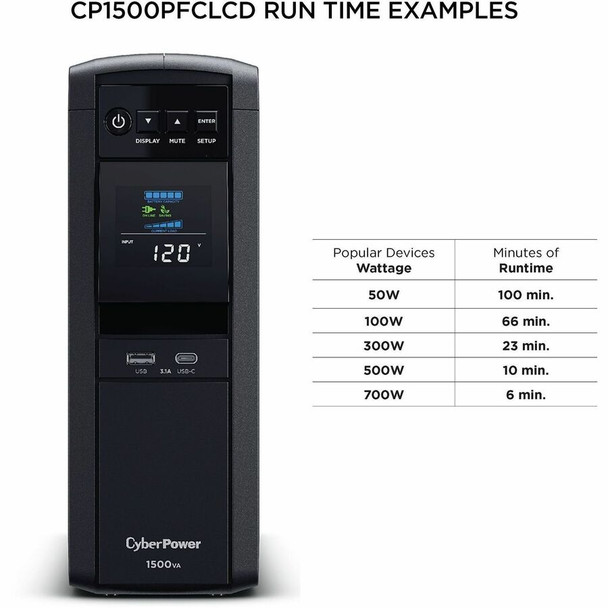

Run Time:100 minutes

Compliance Standards:cUL

Compliance Standards:FCC Class B Certified

Compliance Standards:RoHS

Compliance Standards:UL Listed

Pre-Consumer Recycled Content Percent:0%

Post-Consumer Recycled Content Percent:0%

Total Recycled Content Percent:0%

Disclaimer Statement:Run Time based on a load of 50 watts.

Features

Package Contents:

CP1500PFCLCD UPS 1500VA 1000W PFC compatible Pure sine wave
PowerPanel Personal Edition Software
USB Cable
User Manual
Registration Card
Coax Cable

Certifications & Standards:

UL1778
cUL 107.3
FCC DOC Class B

Additional Information:

Active PFC Compatible : Yes

Energy Saving : GreenPower UPS™ Bypass Technology

Energy Star Certified : Yes

UPS Topology : Line Interactive

Battery Quantity : 2

Battery Size : 12 V / 9 Ah

Battery Type : Sealed Lead-Acid Battery

Hot Swappable : No

Replacement Battery Cartridge : RB1290X2 (for serial numbers beginning with CXX)

Replacement Battery Cartridge Quantity : 1

Runtime at Full Load : 2.5 min

Runtime at Half Load : 10 min

Typical Recharge Time : 8 Hours

User Replaceable Battery : Yes

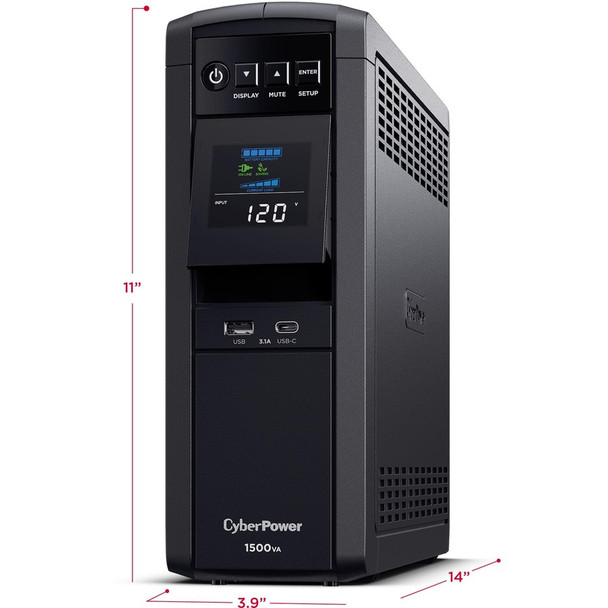

Physical Dimensions - (WxHxD) (cm) : 9.91 x 27.94 x 35.56 (cm)

Physical Dimensions - (WxHxD) (in) : 3.9 x 11.0 x 14.0 (in)

Physical Dimensions - (WxHxD) (mm) : 99 x 279 x 356 (mm)

Weight (kg) : 11.29

Weight (lb) : 24.9

Shipping Dimensions - (WxHxD) (cm) : 19.69 x 36.83 x 44.45 (cm)

Shipping - Dimensions (WxHxD, in) : 7.75 x 14.5 x 17.5 (in)

Shipping - Dimensions (WxHxD, mm) : 196.85 x 368.3 x 444.5 (mm)

Shipping - Weight (kg) : 12.7

Shipping - Weight (lb) : 28.0

Circuit Breaker : 15 A

Cord Length : 5 ft (1.5 m)

Input Frequency Range : 57 Hz - 63 Hz

Input Plug Type : NEMA 5-15P

Input Voltage Range : 88 VAC - 144 VAC

Nominal Input Voltage : 120 VAC

Plug Style : Right Angle - 45° Offset

Automatic Voltage Regulation : Single Boost

On AC WaveForm : Sine Wave

On Battery Frequency : 60 Hz ± 1%

On Battery Voltage : 120 VAC ± 5%

On Battery Waveform : Sine Wave

Outlets - Battery & Surge Protected : 6

Outlets - Surge-Only Protected : 6

Outlets - Total : 12

Outlets - Widely Spaced : 2

Outlet Type COMPUTED : 12 - NEMA 5-15R

Output Power Factor : 0.7

Overload Protection : Internal Circuitry Limiting

Typical Transfer Time : 4 ms

Under/Over-Voltage Correction : +11.5%

USB Charge Port : Yes

USB Charge Port Amperage : 3.1 Amps (Shared)

USB Charge Port Quantity : 2

USB Charge Port Standard : Type A

USB Charge Port Type COMPUTED : 1 Type A

VA : 1500 VA

Watts : 1000 W

EMI/RFI Filtration COMPUTED : Yes

Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible

Surge Suppression (Joules) : 1445 J

EMI/RFI Filtration COMPUTED : Yes

Network Protection RJ45 : 1-in / 1-Out (10/100/1000) + PoE Compatible

Surge Suppression (Joules) : 1445 J

Audible Alarms : Battery Mode

Emergency Power Off (EPO) Port : No

HID Compliant USB Port : Yes

LCD : Multifunction LCD

LED Indicators : Power On

Management Cable : USB Cable

Serial Port : 1 Dry Contact

SNMP / HTTP Remote Monitoring : Yes - with optional RMCARD205

Software (Free Download) : PowerPanel® Business

Color : Black

Form Factor : Mini-Tower

Material of Construction : Plastic

Operating Elevation : 0 - 10000 ft (0 - 3048 m)

Operating Relative Humidity : 0 - 95 % (non-condensing)

Operating Temperature : 32 - 104 °F (0 - 40 °C)

Storage Temperature : 5 - 113 °F (-15 - 45 °C)

Environmental : RoHS Compliant

Safety : UL1778

CEG Amount : $500000

Connected Equipment Guarantee : Lifetime

Extended Warranty Option : WEXT5YR-U2A

Product Warranty : 3 Year Limited Warranty

Environmentally Friendly:
Yes

Software Included:
PowerPanel® Business

Energy Star:
Yes

Environmental Compliance:
Restriction of Hazardous Substances (RoHS)

Country of Origin:
Philippines

Specs

Power Description
Load Capacity (Watt)	1000 W
Input Frequency	50 Hz 60 Hz
Output Power Factor	0.7
Surge Energy Rating	1445 J
Input Voltage Range	88 V AC - 144 V AC
Input Voltage	120 V AC
Circuit Breaker	Yes
Output Voltage	120 V AC
Load Capacity (VA)	1500 VA
Waveform Type	Sine Wave
Output Frequency	60 Hz
Physical Characteristics
Form Factor	Mini-tower
Weight (Approximate)	24.90 lb
Product Color	Black
Height	11"
Color Family	Black
Width	3.9"
Depth	14"
Warranty
Directly Connected Equipment Guarantee	$500000 Lifetime
Limited Warranty	3 Year
Controls/Indicators
Status Indicators	<ul> <li>Power On</li> <li>Wiring Fault</li> </ul>
Battery Information
Backup/Run Time (Full Load)	2.50 Minute
Number of Batteries	2
Battery Capacity	9000 mAh
DC System Voltage	12 V DC
Replaceable Battery	Yes
Battery Chemistry	Lead Acid
Hot Swappable	No
Battery Size	12V
Backup/Run Time (Half Load)	10 Minute
Typical Battery Recharge Time	8 Hour
Battery Characteristics	Sealed
Display & Graphics
Display	LCD
General Information
Brand Name	CyberPower
Manufacturer Website Address	https://www.cyberpowersystems.com/
Marketing Information	A mini-tower UPS with line interactive topology, the CyberPower PFC Sinewave CP1500PFCLCD provides battery backup (using sine wave output) and surge protection for desktop computers, workstations, networking devices, and home entertainment systems requiring active PFC power source compatibility. The CP1500PFCLCD features an advanced multifunction control panel with a color LCD to quickly confirm status and alerts at-a-glance. The screen tilts for easy viewing when the UPS is placed in a low position such as under a desk. Two USB charge ports (one Type-A and one Type-C) power portable devices such as mobile phones and tablets, even during a utility power failure. The CP1500PFCLCD uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CP1500PFCLCD comes with a three-year warranty (including coverage of batteries) and a $500,000 Connected Equipment Guarantee. More from the Manufacturer
Product Type	Line-interactive UPS
Product Name	CP1500PFCLCD PFC Sinewave UPS Systems
Manufacturer	CyberPower Systems, Inc
Manufacturer Part Number	CP1500PFCLCD
Product Model	CP1500PFCLCD
Product Series	PFC Sinewave UPS
Technical Information
Receptacle Type	NEMA 5-15R USB Type A
Receptacle Detail	12 x NEMA 5-15R 2 x USB Type A
Energy Saving	GreenPower UPS™ Bypass Technology
Overload Protection	Yes
Plug/Connector Type	NEMA 5-15P
Cord Length	5 ft
Dataline Protection	RJ-45
EMI/RFI Noise Filter	Yes
Number of Surge-only Outlets	6
Number of Battery & Surge Outlets	6
Transfer Time	4 ms
AVR	Yes
Management
Network Management	SNMP/HTTP Remote Monitoring
Alarm	Low Battery Overload Fault On Battery Battery Mode
Interfaces/Ports
USB	Yes
EPO Port	No
Serial Port	Yes
USB (HID Compliant) Port	Yes
Environmental Conditions
Maximum Operating Temperature	104°F (40°C)
Minimum Operating Temperature	32°F (0°C)
Storage Temperature	5°F (-15°C) - 113°F (45°C)
Maximum Operating Elevation	10000 ft
