CyberPower OL1KRM Smart App Online Double Conversion Rackmount UPS
(No reviews yet)
Write a Review
- SKU:
- 21369452
- MPN:
- ol1krm
- Availability:
- Usually ships the same or next business day. In stock at our CA, GA, IN warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 11/02/2026 05:13:24 AM PST
- Stock Update:
- 11/02/2026 05:13:24 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
CyberPower Essential Online UPS. Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower Essential Online OL1KRM is a rack mounted UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.
The OL1KRM offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.
Features
Certifications & Standards:
UL 1778
Yes
Restriction of Hazardous Substances (RoHS)
UL 1778
Additional Information:
- Active PFC Compatible: Yes
- Parallel Expansion (Max. Units): 0
- Replacement Battery Cartridge Quantity: 1
- Backfeed Protection: Yes
- Cold Start: Yes
- Synchronization-Window (Selectable): ±0.5Hz - ±5Hz
- Maintenance Bypass: No
- On AC WaveForm: Sine Wave
- On Battery Waveform: Sine Wave
- Management Cable: USB Cable, Serial Cable
- Removable LCD Control Panel Option: No
- Rotatable LCD Control Panel Option: No
- Software (Free Download): PowerPanel® Business
- Upgradeable firmware: Yes
- Material of Construction: Metal
- Mounting Hardware: Yes
- Audible noise at 1m from surface of unit: 18.1 dBA to 42.8 dBA (0 to 100% load)
- Bypass: Internal Bypass (Automatic and Manual)
- Circuit Breaker: 14
- Dry Contacts: No
- Dual Power Inputs: No
- ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
- Expansion Slot: Yes - with optional RMCARD205 or RELAYIO500
- Harmonic Distortion: < 3% at Linear Load
- Input Frequency Range: 40 Hz - 70 Hz
- Plug Style: Straight
- Overload Protection: Line Mode: 102% to 130% load for 12s - bypass
- Online Thermal Dissipation: 245 BTU/hr
- Serial Port: 1 Serial
- SNMP / HTTP Remote Monitoring: Yes - with optional RMCARD205
- Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Load Capacity (Watt) | 800 W |
| Input Frequency |
|
| Output Power Factor | 0.8 |
| Surge Energy Rating | 710 J |
| Input Power Factor | 0.99 |
| Input Voltage Range |
|
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage |
|
| Load Capacity (VA) | 1000 VA |
| Waveform Type | Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 10.20 lb |
| Product Color | Silver |
| Height | 3.41" |
| Color Family | Silver |
| Width | 17.05" |
| Depth | 11.22" |
| Rack Height | 2U |
| Warranty | |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | Power On (White) |
| Battery Information | |
| Backup/Run Time (Full Load) | 4 Minute |
| Number of Batteries | 2 |
| Battery Capacity | 7000 mAh |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 11.50 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Battery Characteristics | Sealed |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Marketing Information | CyberPower Essential Online UPS. Prevent business interruptions and safeguard mission-critical enterprise network equipment. The CyberPower Essential Online OL1KRM is a rack mounted UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode. The OL1KRM offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output. With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality. More from the Manufacturer |
| Product Type | Double Conversion Online UPS |
| Product Name | Essential Online OL1KRM 1000VA Rack-mountable UPS |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL1KRM |
| Product Model | OL1KRM |
| Product Line | Essential Online |
| Technical Information | |

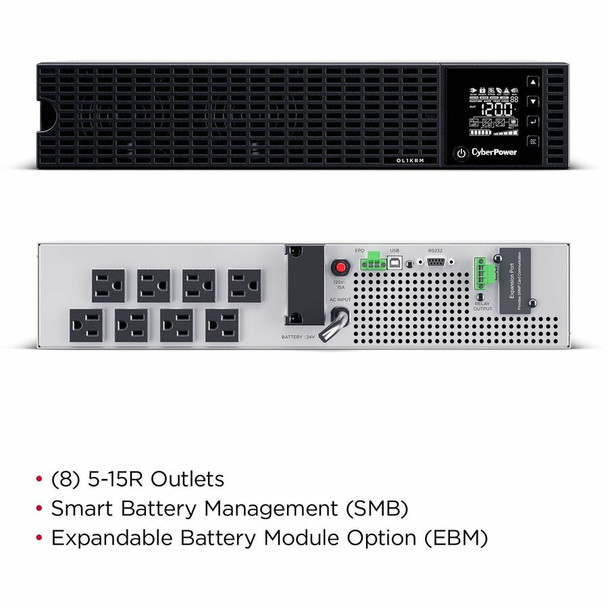

| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 8 x NEMA 5-15R |
| Energy Saving | ECO Mode Efficiency >96% |
| Overload Protection | Yes |
| Phase | Single Phase |
| Plug/Connector Type | NEMA 5-15P |
| Cord Length | 10 ft |
| EMI/RFI Noise Filter | Yes |
| Application/Usage |
|
| Features |
|
| Surge Suppression | Yes |
| Transfer Time | 0 ns |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Interfaces/Ports | |
| Expansion Slot Detail | Yes - with optional RMCARD205 or RELAYIO500 |
| USB | Yes |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Operating Humidity | 0% - 0.9% |
| Thermal Dissipation | 29.01 W |
| Storage Relative Humidity | 0% - 1% |
| Maximum Storage Elevation | 49213 ft |
| Sound Emission (A-Weighted) | 18.1 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9843 ft |
