Cyberpower Systems OL2K2RTHD Online Rackmount UPS 2200VA
(No reviews yet)
Write a Review
- SKU:
- 21347181
- MPN:
- ol2k2rthd
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 09/10/2026 09:38:19 PM PST
- Stock Update:
- 09/10/2026 09:38:19 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
The OL2K2RTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205.

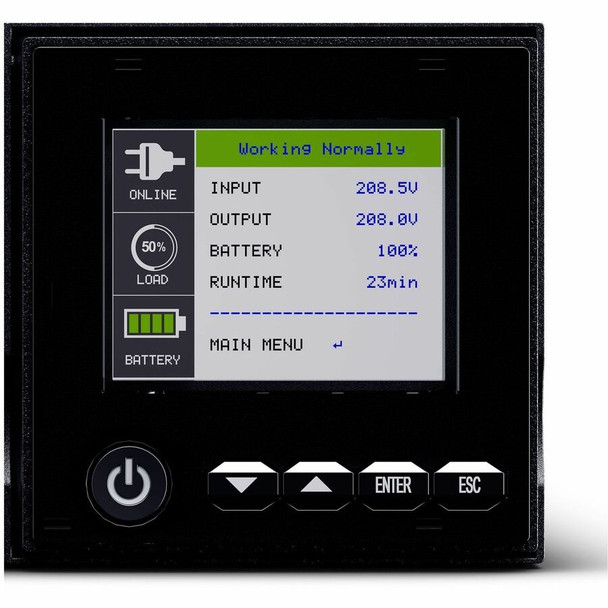

For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration.
The OL2K2RTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.82. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation.
The optional BP36VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year warranty (including batteries) and a $400,000 Connected Equipment Guarantee.
Features
Certifications & Standards:
UL1778
Yes
Restriction of Hazardous Substances (RoHS)
UL1778
Additional Information:
- Backfeed Protection: No
- Battery Equalization Technology: Yes
- Bypass: Internal Bypass (Automatic and Manual)
- Circuit Breaker: 20 A
- Cold Start: Yes
- Dry Contacts: Yes
- ECO Mode Voltage Regulation: ±10%, ±15% (configurable)
- Front Panel Color: Black
- Harmonic Distortion: < 3% at Linear Load
- Input Frequency Range: 40 Hz - 70 Hz
- Replacement Battery Cartridge Quantity: 1
- Outlets - Total: 7
- USB Charge Port: No
- Removable LCD Control Panel Option: No
- Rotatable LCD Control Panel Option: Yes
- Management Cable: USB Cable
- Smart Battery Management (SBM) Mode: Yes
- Serial Port: 1 Serial
- Software (Free Download): PowerPanel® Business
- Material of Construction: Metal
- ECO Mode Thermal Dissipation: 176 BTU/hr
- Online Thermal Dissipation: 497 BTU/hr
- Maintenance Bypass: Yes
- Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
- Mounting Hardware: Yes
- Operating Relative Humidity: 0 - 90 % (non-condensing)
- Storage Relative Humidity: 0 - 95% (non-condensing)
Energy Star:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Load Capacity (Watt) | 1800 W |
| Input Frequency |
|
| Output Power Factor | 0.82 |
| Surge Energy Rating | 710 J |
| Input Power Factor | 0.99 |
| Input Voltage Range |
|
| Input Voltage | 120 V AC |
| Circuit Breaker | Yes |
| Output Voltage |
|
| Load Capacity (VA) | 2200 VA |
| Waveform Type | Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Rack/Tower |
| Weight (Approximate) | 38.58 lb |
| Product Color | Black |
| Height | 3.40" |
| Color Family | Black |
| Width | 17.05" |
| Depth | 14.96" |
| Rack Height | 2U |
| Warranty | |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
| Additional Warranty Information | <p>Three-year warranty (including batteries)</p> |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | Power On (White) |
| Battery Information | |
| Backup/Run Time (Full Load) | 3.10 Minute |
| Number of Batteries | 3 |
| Battery Capacity | 9000 mAh |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 10.30 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Battery Characteristics | Sealed |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Marketing Information | The OL2K2RTHD features double-conversion topology for seamless power protection, individual outlet control, and an optional RMCARD205. For monitoring, this UPS offers a new state-of-the-art, multi-function, color TFT LCD screen that is simple to set up and easy to use. The color-coded alerts provide clear status of the UPS and the screen orientation rotates automatically when placed into a tower configuration. The OL2K2RTHD ensures maximum efficiency and capacity output with a Power Factor rating (PF) of 0.82. The energy-saving GreenPower UPS™ ECO Mode enables more than 96% efficiency while reducing power consumption and thermal dissipation. The optional BP36VL2U01 Extended Battery Module (EBM) expands runtime and up to ten EBMs can be connected in a daisy-chain to the UPS for more backup power. Plus, it's backed by our three-year warranty (including batteries) and a $400,000 Connected Equipment Guarantee. More from the Manufacturer |
| Product Type | Dual Conversion Online UPS |
| Product Name | Smart App Online UPS OL2K2RTHD 2200VA Rack/Tower UPS |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL2K2RTHD |
| Product Model | OL2K2RTHD |
| Product Series | Smart App Online UPS |
| Technical Information | |
| Receptacle Type | NEMA 5-20R |
| Receptacle Detail | 6 x NEMA 5-20R |
| Energy Saving | ECO Mode Efficiency >96% |
| Overload Protection | Yes |

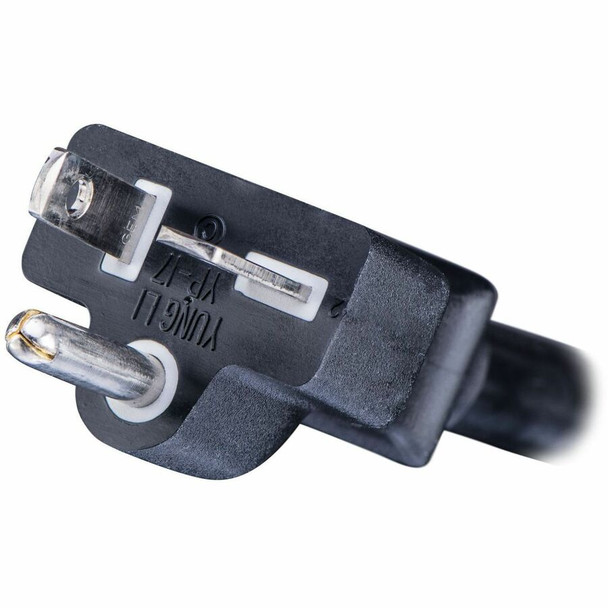

| Plug/Connector Type | NEMA 5-20P |
| Cord Length | 10 ft |
| EMI/RFI Noise Filter | Yes |
| Features |
|
| Surge Suppression | Yes |
| Transfer Time | 0 ns |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Alarm | Battery Mode |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 145.66 W |
| Storage Relative Humidity | 0% - 95% |
| Maximum Storage Elevation | 49213 ft |
| Sound Emission (A-Weighted) | 57.1 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9843 ft |
