Description
This item is brand-new, factory sealed.

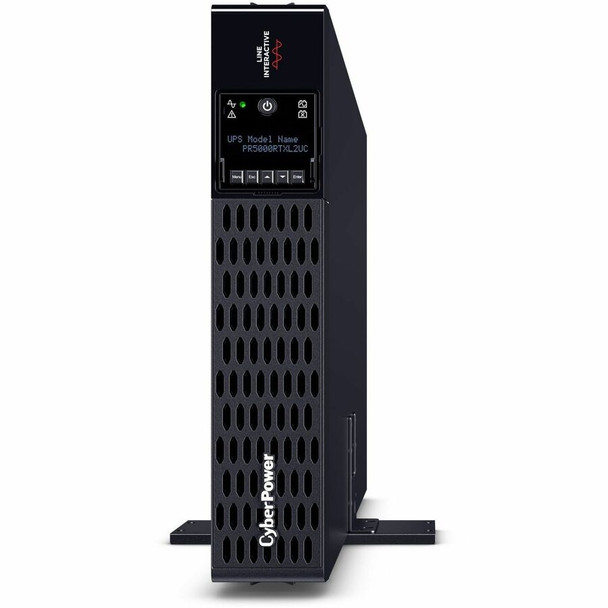

CyberPower PR5000RTXL2UC Smart App Sinewave UPS Battery Backup and Surge Protector, 5000VA/5000W, 2U Rack/Tower, AVR, Built?in Cloud Monitoring, EBM?Ready, UL Certified- 5000VA/5000W Smart App Sinewave UPS: Provides pure sine wave battery backup for servers, networking hardware, storage systems, and other sensitive electronics. Supports Active PFC and conventional power supplies. Remote management available with the optional RMCARD205 (sold separately).

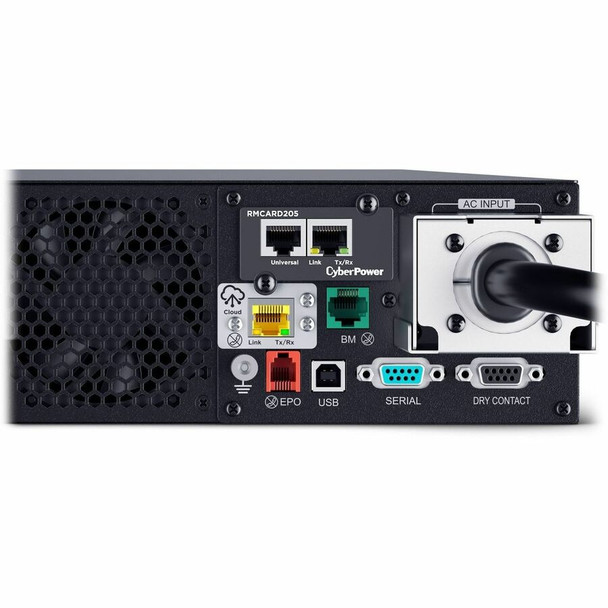

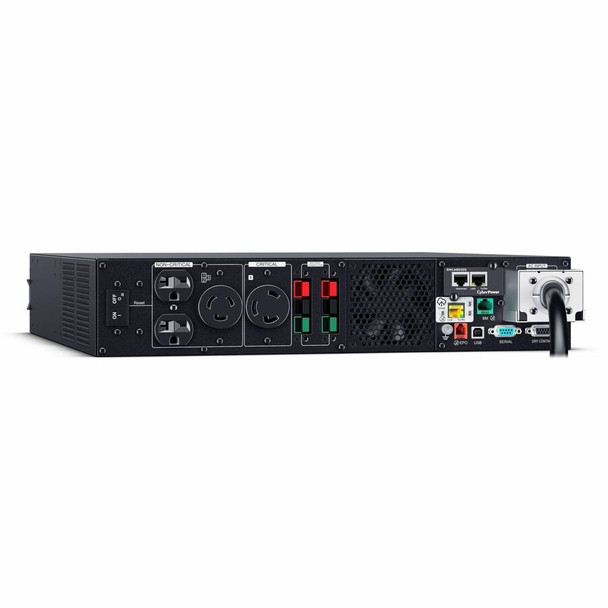

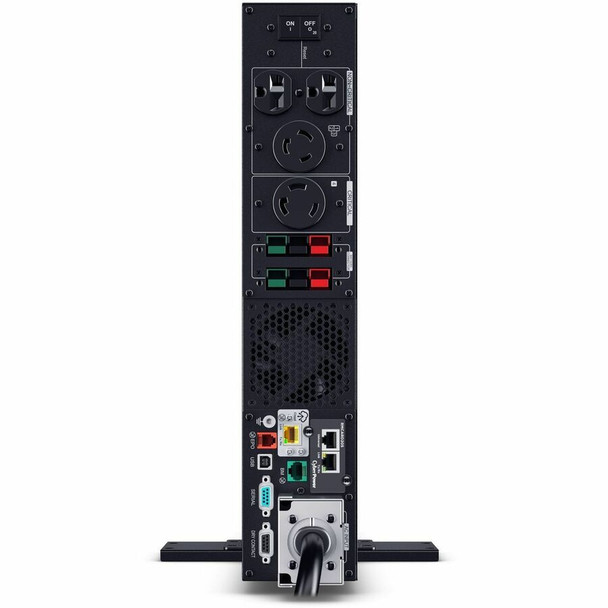

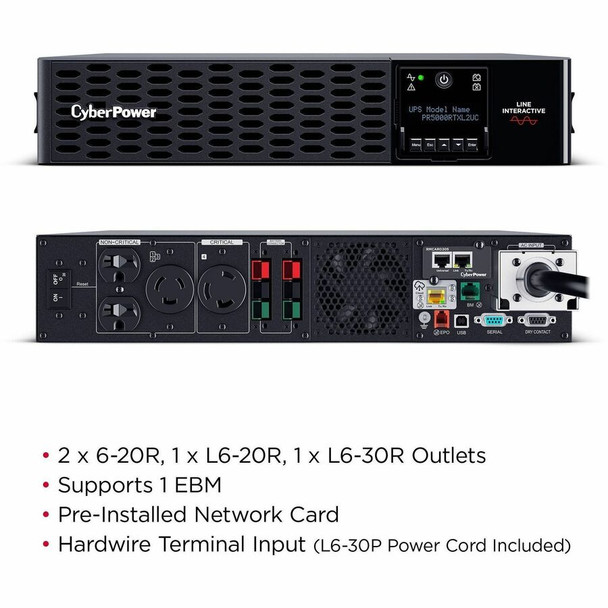

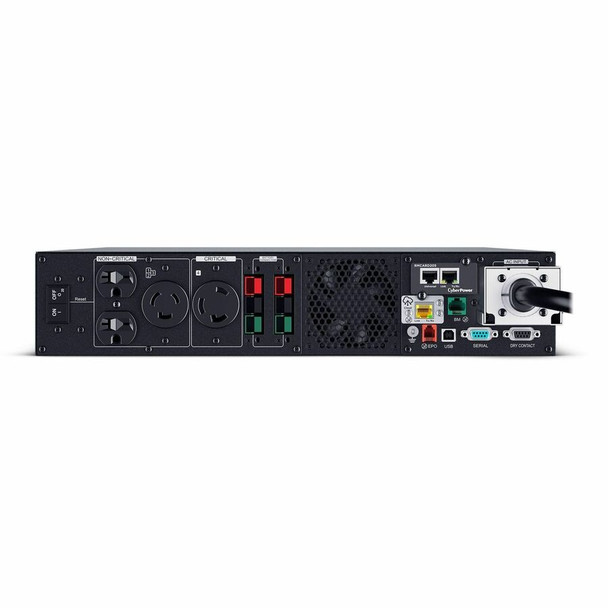

- MULTIPLE HIGH?CAPACITY OUTPUTS: Equipped with 26?20R, 1L6?20R, and 1L6?30R outlets to deliver reliable battery backup and surge protection for enterprise IT equipment. INPUT: Hardwire terminal block with L6?30P power cord included.
- ROTATABLE MULTIFUNCTION LCD PANEL: Tiltable, rotatable LCD provides real?time UPS status, configuration options, and control management. EBM?READY: Supports extended runtimes with compatible battery modules (sold separately). BUILT?IN CLOUD MONITORING enables remote visibility and alerts.
- AUTOMATIC VOLTAGE REGULATION (AVR): Corrects minor voltage fluctuations without switching to battery, helping extend battery life and maintain continuous uptime. UL?CERTIFIED to meet or exceed safety and performance standards.
- 3?YEAR WARRANTY INCLUDING BATTERIES: Backed by a full 3?year warranty, plus a $400,000 Connected Equipment Guarantee and FREE PowerPanel Business Edition software for advanced monitoring and management.
- Voltage: 239 Volts
- Amperage: 29
- Form Factor: Rack / Tower
- Input Voltage: 239 Volts
- Maximum Power: 5000 Watts
- Surge Protection Rating: 2430 Joules
- Output Current: 41.67 Amps
- Output Voltage: 120 Volts (AC)
- Power Plug Type: No Plug
- Connector Type: Hardwire Terminal (NEMA L6-30P power cord included
- Number of Outlets: 4
- Output Wattage: 5000 Watts
- Wattage: 5000 watts
- Lower Temperature Rating: 32 Degrees Fahrenheit
- Upper Temperature Rating: 104 Degrees Fahrenheit
- Specification Met: UL

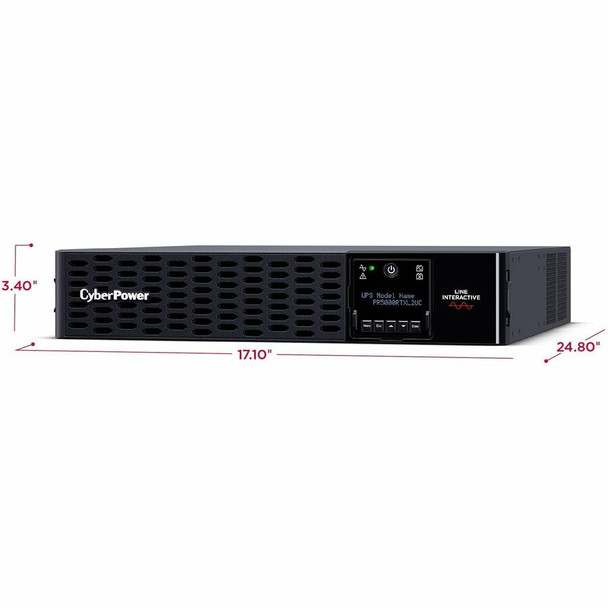

- Item Dimensions D x W x H: 24.8"D x 17.1"W x 3.4"H
- Item Weight: 104.2 Pounds
- Item Dimensions: 24.8 x 17.1 x 3.4 inches
- Battery Cell Type: Other Than Listed
- Enclosure Material: Metal
- Color: Black
- Enclosure Material: Metal
- Brand: CyberPower
- Model Number: PR5000RTXL2UC
- UPC: 649532938681
- Manufacturer: Cyber Power Systems, Inc.
- Mfr Part Number: PR5000RTXL2UC
- Unit Count: 1.0 Count
- Warranty Description: 3 Year Limited Warranty
The PR5000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS designed for demanding enterprise environments that require reliable power protection, line?interactive topology, and extended battery backup. CyberPowers Smart App Sinewave series delivers pure sine wave output to eliminate power gaps that sensitive servers, networking hardware, and storage systems can detecthelping prevent unexpected shutdowns and equipment damage. Engineered for long?term performance, the PR5000RTXL2UC enhances battery life with battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor voltage fluctuations without switching to battery power. The improved chassis design features a toolless front panel, captive screws for quick battery access, and a color?coded rear panel to simplify installation and maintenance. An innovative rotatable and tiltable LCD panel provides clear visibility and access to 47 different configuration and status settings, including UPS diagnostics, setup options, and control management. For extended runtime during outages, this model supports compatible Extended Battery Modules (EBMs). It also works with the optional RMCARD205 network management card for full remote monitoring and control through a standard web browser or network management system. Built?in cloud monitoring adds an additional layer of remote visibility and alerting. Backed by a $400,000 Connected Equipment Guarantee and a three?year warranty, the PR5000RTXL2UC reflects CyberPowers commitment to delivering dependable, enterprise?grade power protection.
Package Contents:
- Smart App Sinewave PR5000RTXL2UC 5000VA Tower/Rack Convertible UPS
- L6-30P Power Cord
Features
Package Contents:
Active PFC Compatible : Yes User Replaceable Battery : Yes Adjustable Voltage Range : 131 - 302 VAC Cold Start : Yes Automatic Voltage Regulation : Double Boost Output Power Factor : 1 Output Voltage : 200 - 240 VAC Overload Protection : On Battery: Internal Circuitry Limiting LED Indicators : Power On Management Cable : USB Cable, EPO Cable Rotatable LCD Control Panel Option : Yes Serial Port : 1 RS232 Software (Free Download) : PowerPanel® Business Upgradeable firmware : Yes Material of Construction : Metal Mounting Hardware : Yes AC Mode Thermal Dissipation : 230.7 BTU/hr Audible noise at 1m from surface of unit : 38.5 dBA to 68.5 dBA (0% to 100% load)
PowerPanel Business
No
Restriction of Hazardous Substances (RoHS)
- Smart App Sinewave PR5000RTXL2UC 5000VA Tower/Rack Convertible UPS
- L6-30P Power Cord
Certifications & Standards:
CE
Additional Information:
Software Included:
PowerPanel Business
Energy Star:
No
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Load Capacity (Watt) | 5000 W |
| Input Frequency |
|
| Output Power Factor | 1 |
| Surge Energy Rating | 2430 J |
| Input Voltage Range |
|
| Input Voltage | 230 V AC |
| Circuit Breaker | Yes |
| Output Voltage |
|
| Load Capacity (VA) | 5000 VA |
| Waveform Type | Sine Wave |
| Output Frequency |
|
| Physical Characteristics | |
| Form Factor | Tower/Rack Convertible |
| Weight (Approximate) | 104.19 lb |
| Product Color | Black |
| Height | 3.39" |
| Color Family | Black |
| Width | 17.09" |
| Depth | 24.80" |
| Rack Height | 2U |
| Warranty | |
| Directly Connected Equipment Guarantee | $400000 Lifetime |
| Limited Warranty | 3 Year |
| Controls/Indicators | |
| Status Indicators | <p><b>LED Indicators:</b></p><ul><li>Power On</li></ul> |
| Battery Information | |
| Backup/Run Time (Full Load) | 1.70 Minute |
| Number of Batteries | 8 |
| Battery Capacity | 9000 mAh |
| Replaceable Battery | Yes |
| Battery Chemistry | Lead Acid |
| Hot Swappable | Yes |
| Battery Size | 12V |
| Backup/Run Time (Half Load) | 8.30 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Battery Characteristics | Sealed |
| Display & Graphics | |
| Display | LCD |
| General Information | |
| Brand Name | CyberPower |
| Manufacturer Website Address | https://www.cyberpowersystems.com |
| Marketing Information | The PR5000RTXL2UC is a Smart App Sinewave rack/tower convertible UPS with line-interactive topology, surge protection, and battery backup. CyberPower's Smart App Sinewave series creates a sine wave output devoid of power gaps which could cause unexpected shutdowns of sensitive equipment. The Smart App Sinewave PR5000RTXL2UC improves battery life through battery equalization technology and Automatic Voltage Regulation (AVR), which corrects minor power fluctuations without switching to battery power. The enhanced chassis design with an easy-to-access toolless front panel, captive screws for battery panel access, and color-coded rear panel make battery changes and installations simple and fast. The PR5000RTXL2UC also has an innovative LCD panel that rotates 90°, tilts for a better viewing angle, and provides information on 47 different settings including UPS stats, UPS setup and control management, and testing options. This model accepts one BP48VP2U04 Extended Battery Module (EBM) for expanded runtime during power outages and includes RMCARD205 network management card for remote management and control via a standard web browser or network management system. Includes built-in cloud monitoring. With a $400,000 connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to the quality of the PR5000RTXL2UC. More from the Manufacturer |
| Product Type | Line-interactive UPS |
| Product Name | Smart App Sinewave PR5000RTXL2UC 5000VA Tower/Rack Convertible UPS |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | PR5000RTXL2UC |
| Product Model | PR5000RTXL2UC |
| Product Line | Smart App Sinewave |
| Technical Information | |
| Receptacle Type |
|
| Receptacle Detail |
|
| Number of Critical Load Outlets | 1 |
| Phase | Single Phase |
| EMI/RFI Noise Filter | Yes |
| Surge Suppression | Yes |
| Transfer Time | 4 ms |
| Energy Saving | GreenPower UPS Bypass Technology |
| Overload Protection | Yes |
| Plug/Connector Type |
|
| Cord Length | 10 ft |
| Features |
|
| AVR | Yes |
| Management | |
| Network Management |
|
| Alarm | Battery Mode |
| Interfaces/Ports | |
| USB | Yes |
| EPO Port | Yes |
| Serial Port | Yes |
| USB (HID Compliant) Port | Yes |
| Environmental Conditions | |
| Thermal Dissipation | 1312.61 W |
| Storage Relative Humidity | 0% - 95% |
| Maximum Storage Elevation | 49213 ft |
| Sound Emission (A-Weighted) | 68.5 dB(A) |
| Maximum Operating Temperature | 104°F (40°C) |
| Minimum Operating Temperature | 32°F (0°C) |
| Storage Temperature | 5°F (-15°C) - 113°F (45°C) |
| Maximum Operating Elevation | 9843 ft |
