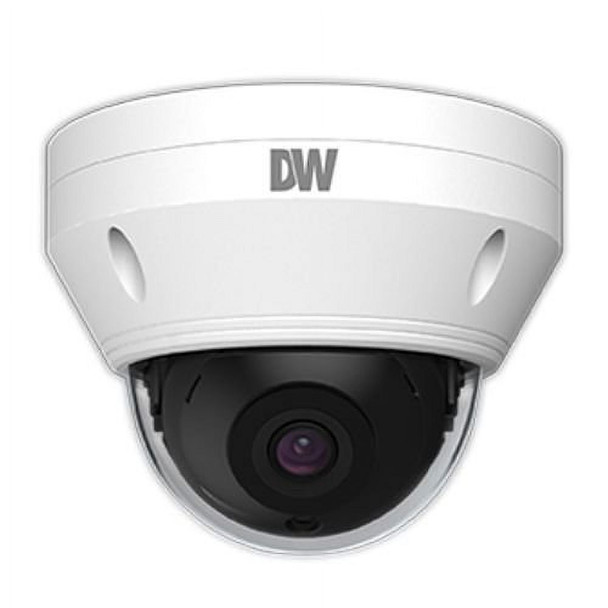

Digital Watchdog, Inc DWC-VSDG04Bi Megapix V-class Vandal Dome 4 Megapixel 2.8mm Fixed Lens True D&n T-wdr 164ft Smart Ir Multiple Codecs [h.265 H.264 Mjpeg ] With Simultaneous Dual Stream Video Analy
- SKU:
- 21487044
- MPN:
- dwc-vsdg04bi
- Availability:
- Usually ships the same or next business day. In stock at our OH warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 05/07/2026 02:54:35 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | Add to cart for pricing 1 |
- Stock Update:
- 05/07/2026 02:54:35 AM PST
Description
This item is brand-new, factory sealed.
Line crossing
Once a pre-defined line is crossed from either direction, an event notification will be sent.
Perimeter intrusion
Once a pre-defined area is set, any crossing of the lines towards the area, out of the area, or both, will trigger an alarm.
Video tampering detection - abnormal color detection
When the camera's color reproduction is changed, an event notification will be sent.
Video tampering detection - scene change
When the camera is moved, and the Field of View (FoV) is different, an event notification will be sent.
Video tampering detection - video blur
When a sudden blur or loss in visibility is detected, an event notification will be sent.
Smart IR™
Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail.
True Wide Dynamic Range (WDR)
Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image.
H.265 codec support
High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality.
Features
Yes
Impact Protection Rating:
IK10
Features:
Back Light Compensation (BLC)
Highlight Compensation (HLC)
3D Digital Noise Reduction
Noise Reduction
Human Detection
Mirror
Auto Gain Control
White Balance
Auto Flip
Removable IR Cut-off Filter
Privacy Masking
Day/Night
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Ingress Protection Rating:
IP67
Specs
| Power Description | |
| Input Voltage | 12 V DC |
| Power Source Type |
|
| Physical Characteristics | |
| Form Factor | Dome |
| Weight (Approximate) | 1.43 lb |
| Product Color | White |
| Durability |
|
| Color Family | White |
| Warranty | |
| Limited Warranty | 5 Year |
| Display & Graphics | |
| Image Sensor Size | 1/3" |
| Effective Camera Resolution | 4 Megapixel |
| Image Sensor Type | CMOS |
| Field of View | Horizontal Field of View (HFOV) 94° |
| Color Supported | Color |
| General Information | |
| Brand Name | Digital Watchdog |
| Manufacturer Website Address | http://www.digital-watchdog.com |
| Marketing Information | Line crossing Once a pre-defined line is crossed from either direction, an event notification will be sent. Perimeter intrusion Once a pre-defined area is set, any crossing of the lines towards the area, out of the area, or both, will trigger an alarm. Video tampering detection - abnormal color detection When the camera's color reproduction is changed, an event notification will be sent. Video tampering detection - scene change When the camera is moved, and the Field of View (FoV) is different, an event notification will be sent. Video tampering detection - video blur When a sudden blur or loss in visibility is detected, an event notification will be sent. Smart IR™ Smart IR™ adjusts the image for IR cameras to prevent excessive illumination on objects that are in the front of the scene and offers a clear image in B/W without any loss of detail. True Wide Dynamic Range (WDR) Cameras with True Wide Dynamic Range (WDR) technology have advanced sensors that can process a wider range of lighting, dark and bright in the same image. H.265 codec support High-Efficiency video codec standards deliver 25% to 50% better data compression while maintaining video quality. |
| Product Type | Network Camera |
| Product Name | MEGApix 4MP vandal dome IP camera with fixed lens and IR |
| Manufacturer | Digital Watchdog |
| Manufacturer Part Number | DWC-VSDG04BI |
| Product Model | DWC-VSDG04Bi |
| Product Line | MEGAPIX |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/2 Second |
| Technical Information | |
| Night Vision Type | Infrared |
| HD Recording | Yes |
| Recording Formats | 2K |
| Night Vision | Yes |
| Night Vision Distance | 100 ft |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Video | |
| Maximum Frame Rate | 30 fps |
| Maximum Video Resolution | 2560 x 1440 |
| Video Formats |
|
| Lens | |
| Maximum Aperture | f/1.6 |
| Lens Type | Fixed |
| Lens Included | Yes |
| Maximum Focal Length | 2.80 mm |
| Network & Communication | |
| Remote Management | Yes |
| Connectivity Technology | Wired |
| Environmental Conditions | |
| Maximum Operating Humidity | 95% |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
