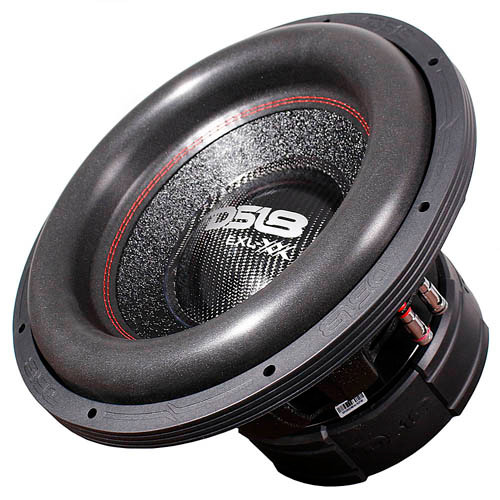

Ds18 Audio EXLXX15.4DHE Ds18 4000w 15" 4 Ohm High Excursion 4 Oh EXLXX15.4DHE

This item is brand-new, factory sealed.

• POWERFUL BASS YOU CAN COUNT ON - EXL-XX15.4DHE delivers impressive 4000W Max Power with 2000W RMS at Dual 4+4 Ohm, once you hear it you'll finally realize what big, rich bass sounds like.
• DUAL VOICE COIL (DVC) - Provides multiple options and flexibility to wire Parallel, Series, or Independent.
• UNMATCHED ENGINEERING - The EXL series of subwoofers come with Three-inch black aluminum voice coil for high power handling and great efficiency to ensure top quality.
• High Excursion surround for a very high amount of xmax.
• NEVER STOP INNOVATING ATTITUDE - DS18 stands out from other brands with our progressive designs and unwavering commitment to delivering the most technologically up-to-date products on the market

• Package Dimensions: 18.5 x 18 x 18 inches
• Item Weight: 49.9 pounds
• Manufacturer: DS18

DS18 EXL-XX15.4DHE High excursion is now the standard in all big bass applications and we want to bring the experience of low frequency bass and high power to every user at a great price point. Specifications Nominal Diameter 15Nominal Impedance 4+4 ohmsRMS Power Handling 2000WMAX Power Handling 4000WSensitivity (1w/1m) 88 dBFrequency Response 20-1.5KHzRecommended Lo Pass Crossover 80 HzMotor: VC Diameter 3 / 75.6mmVC Former Material Black AluminumWinding Material CCAWCone Material PaperDust Cap Material Glass FiberSurround Material FoamBasket Material AluminumBasket Color/Finish BlackMagnet Material FerriteMagnet Weight 306 OzDisplacement Volume 3.26LThiele Small Parameters Equivalent Vol Vas 29.965LExcursion(one way) Xmax 42 mmFree Air Resonance Fs 35.6 HzMechanical Factor Qms 7.098Electrical Factor Qes 0.68Total Factor Qts 0.62Moving Mass Mms 410.638 gCompliance Cms 0.027 mm/NBl Factor BL 19.865VC Inductance Le 11.25 mHDiaphragm Area Sd 804.25 cmDc Resistance Re 3.6 + 3.6 ohmsEfficiency Bandwidth Product EBP 52.3Measurements Overall Diameter 15.59 / 396mmOverall Depth 10.24 / 260mmFront Mount Baffle Cutout 13.98 / 355mmMounting Depth 8.86 / 225mmMotor Diameter 8.86 / 225mm
