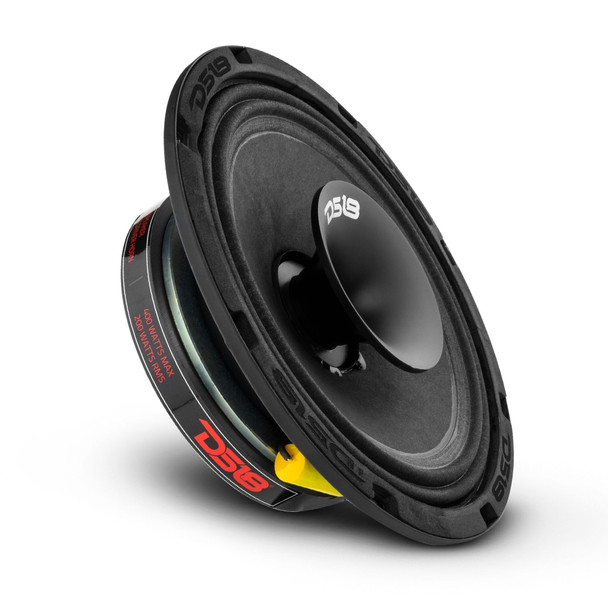

DS18 Audio PRO-HY8.4MSL Pro 8-in Shallow Coaxial Hybrid Mid-range Loudspeaker PROHY8.4MSL

This item is brand-new, factory sealed.

* 8-in Shallow Hybrid Coaxial Mid-Range w/Driver * RMS Power: 200 Watts(400 Watts Peak) * Impedance: 4 Ohm * Ferrite & Neodymium Magnets * With Grill * 94dB * SKU: PRO-HY8.4MSL * Nominal Diameter: 8-in / 203.2mm * Nominal Impedance: 4 Ohm * RMS Power Handling: 200W * MAX Power Handling: 400W * Sensitivity (1w/1m): 94dB * Frequency Response: 100Hz - 20Khz * Recommended HI Pass Crossover: 120Hz * Number of ways: 2 ways * Pair or Single: Single * Grill Included: Yes Woofer Specifications * Voice Coil Diameter: 1.5-in / 38.6mm * Voice Coil Former Material: KSV * Winding Material: CCAW * Cone Material: Paper * Surround Material: Cloth * Basket Material: Steel * Basket Color/Finish: Glossy Red * Magnet Material: Ferrite * Magnet Weight: 29.5 Oz * Displacement Volume: Thiele & Small Parameters * Equivalent Volume Vas: 7.42L / 0.262ft3 * Excursion (one way) Xmax: 2mm * Free Air Resonance Fs: 108Hz * Mechanical Factor Qms: 6.418 * Electrical Factor Qes: 0.759 * Total Factor Qts: 0.704 * Mechanical Mass Mms: 18.575g * Mechanical Compliance Cms: 111.62 mm/N * BL Factor BL: 7.206 * Voice Coil Inductance Le: 19.20mH * Cone Area Sd: 216.424 Cm2 * DC Resistance Re: 3.2 ohm * Mechanical Mass w/o air Mmd: 16.744g Driver Specifications * Voice Coil Diameter: 1-in / 25.4mm * Voice Coil Former Material: Kapton * Winding Material: CCAW * Diaphragm Material: Titanium * Magnet Material: Neodymium * Horn Diameter: 3-in / 76.2mm Speaker Measurement * Overall Diameter: 8.62-in / 219mm * Overall Depth: 4-in / 102.5mm * Front Mount Baffle Cutout: 7.12-in / 181mm * Mounting Depth: 3.11-in / 79mm * Motor Diameter: 5.27-in / 134mm Shipping Info * Gross Single Unit Weight: 5.75 * Single Unit Box Dimensions L x W x H (Inches): 9 x 9 x 4.75 * Quantity of Units in Master Carton: 8 * Gross Master Carton Weight: 49 * Master Carton Dimensions L x W x H (Inches): 18.5 x 18.5 x 10.25 DS18 PRO-HY8.4MSLPerfect audio is possible with the PRO-HY8.4MSL! We've taken our Pro-Audio midrange and merged it seamlessly with a high-intensity driver, and packaged it into a shallow and slim design. With 400W MAX power handling and 200W RMS power handling, the PRO-HY8.4MSL gets extremely LOUD with remarkable clarity. Thanks to the frequency response range of 100Hz to 20KHz, the PRO-HY8.4MSL-inTs excel in reproducing crystal-clear audio with astonishing depth and precision. With its sleek dimensions of 8.62 inches in width and a mounting depth of 3.11 inches, this speaker is incredibly versatile, fitting effortlessly into a wide range of applications. One of the standout features of this speaker is its titanium diaphragm driver. Titanium is known for its exceptional stiffness-to-weight ratio, resulting in fast and accurate response across a wide frequency range. The magnet used in the driver is made of neodymium this allows the driver to efficiently convert electrical signals into sound waves, contributing to its overall performance and power handling capabilities. To further optimize the driver's performance, a 3-inch horn diameter is incorporated. The horn aids in directing and focusing the sound waves, ensuring maximum dispersion and projection. Prepare to be blown away by the power, clarity, and precision of the PRO-HY8.4MSL.
