Startech IT

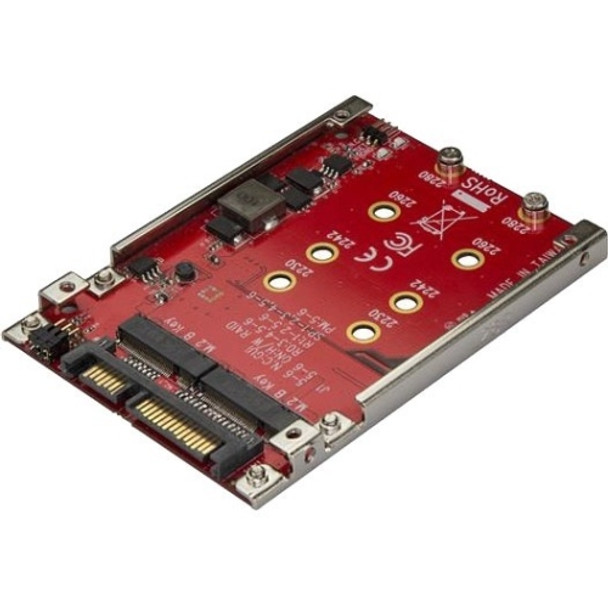

Dual-Slot M.2 to SATA Adapter - M.2 SATA Adapter for 2.5" Drive Bay - M.2 Adapter - M.2 SSD Adapter - M.2 NGFF SSD Adapter - RAID (s322m225r)
- SKU:
- 18060927
- MPN:
- s322m225r
- Availability:
- Usually ships the same or next business day. In stock at our IL warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 11/13/2025 06:05:01 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 or above | and pay only $57.08 each 57.08 |
- Stock Update:
- 11/13/2025 06:05:01 PM PST
Description
This item is brand-new, factory sealed.
Create high-performance storage with configurable RAID, by installing two M.2 SATA SSDs into a 2.5" SATA interface. Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5" drive bay, and increase your storage options by configuring a powerful RAID array.
Build a RAID array to enhance system performance
The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another.
Maximize file transfer speeds
The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.
Easy installation
This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn't require any extra software or drivers, to get you up and running quickly.
The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Features
- Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID
- 2 x Sets of Drive-mounting Hardware
- 4 x Adapter-mounting Screws
- 1 x Quick-start Guide
TAA Compliant:
Yes
Additional Information:
- Drive Connectors: 2 - M.2 (SATA, B-Key, NGFF)
- Host Connectors: 1 - SATA Data & Power Combo (7+15 pin)
- Operating Temperature: +5°C to +50°C (+41°F to +122°F)
- Storage Temperature: -25°C to +70°C (-13°F to +158°F)
- Humidity: 15% to 90%
- Interface: SATA
- Number of Drives: 2
- Compatible Drive Types: M.2 (SATA, B-Key, NGFF)
- Drive Installation: Fixed
- Supported Drive Height(s): 2230; 2242; 2260;2280
- Chipset ID: ASMedia - ASM1092R
- Maximum Data Transfer Rate: 6 Gbps
- TRIM Support: Yes
- S.M.A.R.T. Support: Yes
- Type and Rate: SATA III (6 Gbps)
- Port Multiplier: Yes
- Hardware Raid Supported: Yes
- Supported RAID Modes: RAID 0 (Striped Disks); RAID 1 (Mirrored Disks); JBOD - (Just a Bunch of Disks); BIG (Spanning or Concatenation)
Environmentally Friendly:
Yes
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Country of Origin:
Taiwan
Specs
| Physical Characteristics | |
| Product Material | Steel |
| Weight (Approximate) | 1.45 oz |
| Product Color | Red |
| Height | 0.3" |
| Color Family | Red |
| Width | 2.8" |
| Depth | 3.9" |
| Warranty | |
| Limited Warranty | 2 Year |
| General Information | |
| Brand Name | StarTech.com |
| Manufacturer Website Address | http://www.startech.com |
| Marketing Information | Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 SATA drives instead of a SATA platter drive, in a single 2.5" drive bay, and increase your storage options by configuring a powerful RAID array. Build a RAID array to enhance system performance The dual M.2 to SATA adapter supports multiple RAID modes, including RAID 0, 1, or spanning, helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independently of one another. Maximize file transfer speeds The M.2 SATA SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SATA SSDs in place of a platter drive reduces your data transfer bottlenecks, giving you file transfer speeds of up to 6Gbps. The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs. Easy installation This open-frame adapter is easy to install as it comes with all the necessary installation hardware and doesn't require any extra software or drivers, to get you up and running quickly. The S322M225R is backed by a StarTech.com 2-year warranty and free lifetime technical support. More from the Manufacturer More from the Manufacturer |
| Product Type | M.2 to SATA Adapter |
| Product Name | Dual-Slot M.2 Drive to SATA Adapter for 2.5" Drive Bay - RAID |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | S322M225R |
| Packaged Quantity | 1 Each |
