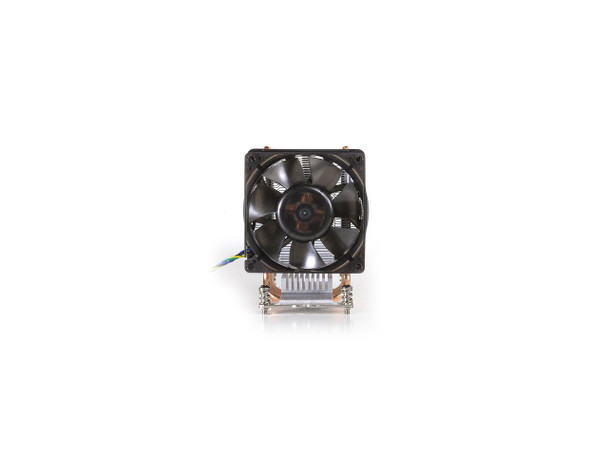

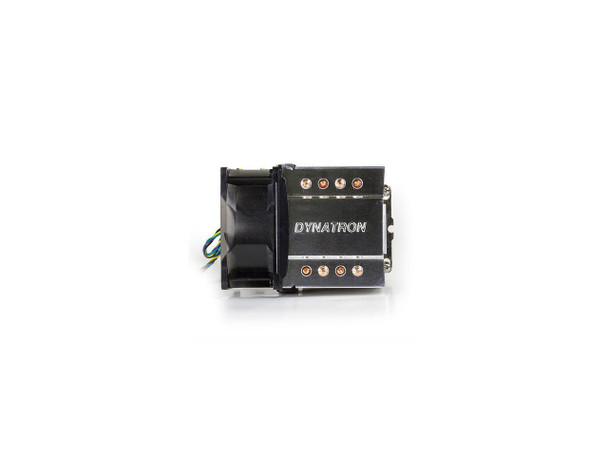

Dynatron A19 Cooling Fan/Heatsink

This item is brand-new, factory sealed.

Specifications

• Mfr Part Number: A19
• Feature:
  • ?Supports AMD Socket AM4 CPU
  • 80x80x38mm powerful fan with PWM function
  • Heatpipe Contact CPU technology heatpipe CPU cooler
  • Supports up to TDP 165 Watts
  • Recommended for 3U Server & Up, Workstation
• CPU Support: AMD
• CPU Socket: AM4
• Solution: 3U Server and Up, Workstation
• Dimensions: 107.5 x 78 x 110 mm
• Weight: 550 g
• Material: Aluminum Stacked Fin with Heat Pipes directly contact CPU
• Fan Dimension: 80 x 80 x 38 mm
• Speed:
  • At Duty Cycle 20%: 100010% RPM
  • At Duty Cycle 50%: 200010% RPM
  • At Duty Cycle 100%: 3800 RPM
• Bearing: Double Ball
• Rated Voltage: 12V
• Power:
  • At Duty Cycle 20%: 2.2 W
  • At Duty Cycle 50%: 3.6 W
  • At Duty Cycle 100%: 7.9 W
• Air Flow:
  • At Duty Cycle 20%: 13.8 CFM
  • At Duty Cycle 50%: 30.78 CFM
  • At Duty Cycle 100%: 65.4 CFM
• Noise Level:
  • At Duty Cycle 20%: 16.0 dBA
  • At Duty Cycle 50%: 31.5 dBA
  • At Duty Cycle 100%: 43.4 dBA
• Air Pressure:
  • At Duty Cycle 20%: 0.42 mm-H2O
  • At Duty Cycle 50%: 2.45 mm-H2O
  • At Duty Cycle 100%: 9.75 mm-H2O
• Lead Wire Pin Out:
  • Pin1- (-)
  • Pin2- (+)
  • Pin3- (Techometer/Signal output)
  • Pin4- (PWM)
