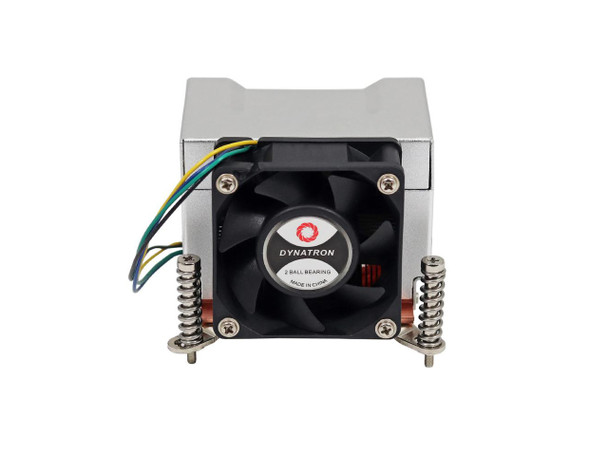

Dynatron Q5DYN Q5 2U Active CPU Cooler for LGA1700

This item is brand-new, factory sealed.

Recommend for Intel Alder Lake S Processor, Socket LGA 1700, 60 x 60 x 25 mm Fan with PWM function, Copper Base & Aluminum Fins with Heatpipes Embedded , Active Cooler for 2U Server and Up, Support CPU Power up to 150 Watts Heat Dissipation. CPU Support
Intel CPU Socket
Socket LGA 1700 Material
Copper Base and Aluminum Fins with Heat Pipe embedded Solution
2U Server and Up Rated Voltage
12V Bearing
2 Ball Bearing Speed
At Duty Cycle 0 to 20%: 1600 +/- 200 RPM
At Duty Cycle 50%: 4000 +/- 10% RPM
At Duty Cycle 100%: 8000 RPM Power
At Duty Cycle 0 to 20%: 1.20 W
At Duty Cycle 50%: 2.28 W
At Duty Cycle 100%: 7.20 W Air Flow
At Duty Cycle 0 to 20%: 9.28 CFM
At Duty Cycle 50%: 23.21 CFM
At Duty Cycle 100%: 46.41 CFM Air Pressure
At Duty Cycle 0 to 20%: 0.76 mm-H2O
At Duty Cycle 50%: 4.76 mm-H2O
At Duty Cycle 100%: 19.04 mm-H2O Acoustical Noise
At Duty Cycle 0 to 20%: 18 dBA
At Duty Cycle 50%: 37.89 dBA
At Duty Cycle 100%: 52.94 dBA Lead Wir Pin Out
Pin1- (-)
Pin2- (+)
Pin3- (Techometer/Signal output)
Pin4- (PWM)Item Dimension (L inchxW inchxH inch)
5 x 5 x 4

Weight
1.45 lb

Warranty Information
1 year
