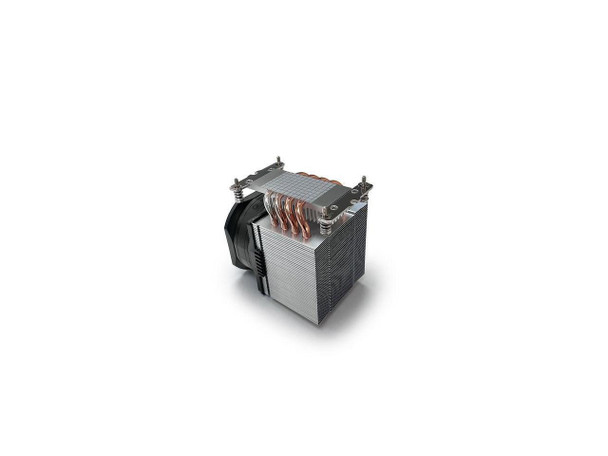

Dynatron A56 A56 Aluminum Heatsink

This item is brand-new, factory sealed.

A56

_______________________________

CPU SUPPORT

AMD

CPU SOCKET

AM4/AM5

APPLICATION

3U & UP

MAXIMUM POWER

170W

_______________________________

*The backplate is not included in our heatsink accessory kit because it is already assembled on the motherboard.CPU Support
AMD Ryzen ProcessorCPU Socket
AM4/AM5Screw Type
Number 6-32Installation Torque
6-10 in-lbSolution
3U Server and upMaterial
Aluminum Stacked Fin with Heat Pipes directly contact CPUFan Dimension
80 x 80 x 38 mmSpeed
At Duty Cycle 0-20%: 2400 +/- 10% RPM
At Duty Cycle 50%: 4800 +/- 10% RPM
At Duty Cycle 100%: 8000 RPM MinBearing
Double BallRated Voltage
12VPower
At Duty Cycle 0-20%: 1.2 W
At Duty Cycle 50%: 5.52 W
At Duty Cycle 100%: 24.72 WAir Flow
At Duty Cycle 0-20%: 35.52 CFM
At Duty Cycle 50%: 67.24 CFM
At Duty Cycle 100%: 115.61 CFMNoise Level
At Duty Cycle 0-20%: 25.63 dBA
At Duty Cycle 50%: 47.85 dBA
At Duty Cycle 100%: 64.40 dBALife - Continuous operating under normal temperature (40 ^oC or 104 ^oF)
70,000 HoursItem Dimension (L"xW"xH")
6 x 4 x 6

Weight
2 lbs

Warranty Information
1 year
