DYNATRON

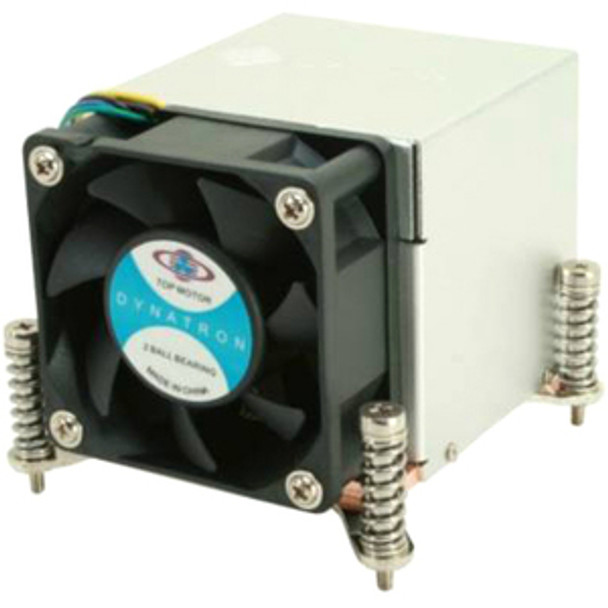

Dynatron K650 Cooling Fan/heatsink - 1 X 60 Mm - 7000 Rpm - Dual Ball Bearing - Socket H2 Lga-1155, Socket H Lga-1156 Compatible Processor Socket - Copper, Aluminum (108045)
(No reviews yet)
Write a Review
- SKU:
- 18047063
- MPN:
- 108045
- Availability:
- Out of stock
- Stock Update:
- 10/01/2025 01:07:47 PM PST
- Stock Update:
- 10/01/2025 01:07:47 PM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: K650
- CPU Application:
- LGA 1155:2nd Generation IntelCore i7-2600, i5-2500 Series & Sandy Bridge Xeon1220, 1220L, 1225, 1230, 1235, 1240, 1245, 1260L, 1270, 1275 &1280Processors
- LGA 1156: IntelCorei3-530 & i3-540, Core i5-650,i5-660, i5-661,i5-670 & i5-750, Corei7-870 & i7-860,Xeon 3400 Series Processors
- Material: Copper Base with Aluminum Stacked Fin
- Fan:
- Rated Speed:
- At Duty Cycle 0~20%: 1400 RPM
- At Duty Cycle 50%:3500 RPM
- At Duty Cycle 100%: 7000 RPM
- Bearing:Double-Ball
- Rated Voltage: 12V
- Rated Input Power:
- At Duty Cycle 0~20%: 0.6W
- At Duty Cycle 50%: 1.2W
- At Duty Cycle 100%: 5.4 W
- Rated Airflow:
- At Duty Cycle 0~20%: 7.405 CFM
- At Duty Cycle 50%: 18.517 CFM
- At Duty Cycle 100%: 38.283 CFM
- Rated AcousticalLevel:
- At Duty Cycle 0~20%: 20.8 dBA
- At Duty Cycle 50%: 35.9 dBA
- At Duty Cycle 100%:48.1 dBA
- Rated StaticPressure:
- At Duty Cycle 0~20%: 0.574 mm-H2O
- At Duty Cycle 50%: 3.586 mm-H2O
- At Duty Cycle 100%: 13.552 mm-H2O
- Lead Wire Pin Out:
- Pin1 - Black (-)
- Pin2 - Yellow (+)
- Pin3 - Green (Tachometer /Signal Output)
- Pin4 - Blue (PWM)
- Rated Speed:
- Dimensions:
- Fan: 60.0 x 60.0 x 25.0 mm
- Overall: 88.5 x 87.0 x 64.0 mm
- Weight: 460.0 g
- RoHS Compliant
Features
Certifications & Standards:
UL
Yes
Processor
Intel 2nd Generation Processors:
Restriction of Hazardous Substances (RoHS)
UL
Environmentally Friendly:
Yes
Application/Usage:
Processor
Compatibility:
Intel 2nd Generation Processors:
- Core i7-2600 Series
- Core i5-2500 Series
- 1220
- 1220L
- 1225
- 1230
- 1235
- 1240
- 1245
- 1260L
- 1270
- 1275
- 1280
- 3400 Series
- Core i7-870
- Core i7-860
- Core i3-530
- Core i3-540
- Core i5-650
- Core i5-660
- Core i5-661
- Core i5-670
- Core i5-750
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Product Material | Copper |
| Fan Diameter Details | <p>1 x 60mm</p> |
| Form Factor | Internal |
| Weight (Approximate) | 1.20 lb |
| Maximum Fan Diameter | 2.36" |
| Heatsink Material | Aluminum |
| Height | 2.5" |
| Width | 3.5" |
| Depth | 3.4" |
| Interfaces/Ports | |
| Connectors | 4-pin PWM |
| Fan Information | |
| Airflow Details | <p>1 x 38.283CFM</p> |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Maximum Airflow | 38.28 CFM |
| Fan Speed (Max) | 7000 rpm |
| General Information | |
| Brand Name | Dynatron |
| Manufacturer Website Address | http://www.dynatron-corp.com |
| Product Type | Cooling Fan/Heatsink |
| Product Name | K650 Cooling Fan/Heatsink |
| Manufacturer | Dynatron Corporation |
| Manufacturer Part Number | K650 |
| Product Model | K650 |
| Heatsink Information | |
| Compatible Intel Socket |
|
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
