Eaton 5P UPS 5P1550G

(No reviews yet) Write a Review
Out of stock
Stock Update:
11/30/2023 12:01:45 PM PST

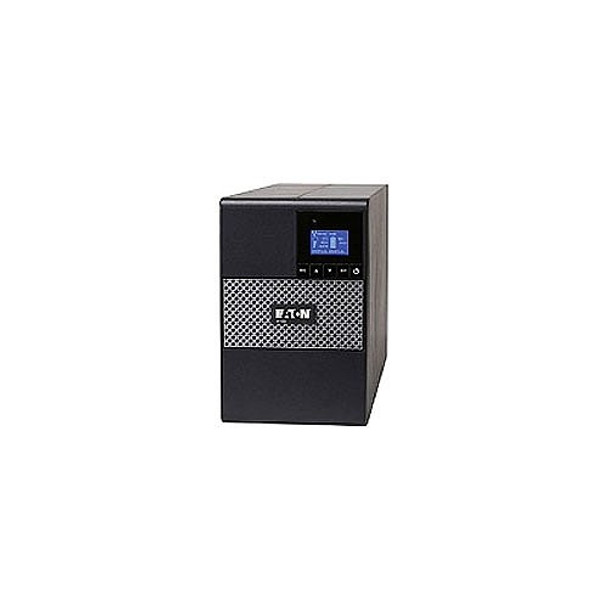

  • Main
  • Rear
  • Alternate-Image2
  • Alternate-Image1

Out of stock

Stock Update:
11/30/2023 12:01:45 PM PST


This item is brand-new, factory sealed.

  • 1.55 kVA/1.10 kWRack-mountable 0.07 Hour Full Load
  • 8 x IEC 60320 C13

    Package Contents:
    • 5P Rackmount UPS
    • User Manual CD
    • Intelligent Power Software Suite CD
    • Quick Start Guide
    • USB Cable
    • RS-232 Serial Cable
    • 2 x IEC-to-IEC Jumper Cables


    Package Contents:
    • 5P Tower UPS
    • User Manual CD
    • Intelligent Power Software Suite CD
    • Quick Start Guide
    • USB Cable
    • RS-232 Serial Cable
    • 2 x IEC-to-IEC Jumper Cables


    Certifications & Standards:
    • UL 1778
    • UL497A
    • cULus
    • CE
    • IEC 62040-2 C1-C2
    • EN 55024
    • CISPR22 Class B
    • FCC part 15 Class B


    Environmental Certification:


    Environmentally Friendly:


    Software Included:
    Intelligent Power Software Suite


    Energy Star:


    Country of Origin:



    Power Description
    Load Capacity1550 VA/1100 W
    Input Voltage220 V AC
    Output Voltage
    Physical Characteristics
    Form FactorTower
    Weight (Approximate)34.40 lb
    Limited Warranty3 Year
    Total Number of Expansion Slots1
    Network (RJ-45)Yes
    Battery Information
    Backup/Run Time (Full Load)4 Minute
    Battery ChemistryLead Acid
    Hot SwappableYes
    Backup/Run Time (Half Load)13 Minute
    Battery CharacteristicsMaintenance-free, Sealed
    General Information
    Brand NameEaton
    Manufacturer Website Address
    Marketing Information1.55kVA/1.1kW/230V Battery Backup for Network Closets and Small Data Centers
    This 5P line-interactive UPS system provides reliable battery backup for small business, education, retail, financial or healthcare networking components, including servers, VoIP phones, data storage and PoE switches. The 5P1550G protects connected devices by providing 20 percent more wattage compared to traditional UPS systems.
    Reliable Battery Backup Keeps You Operational Through Power Outages
    Valve regulated lead acid (VRLA) battery modules allow you to work through short power failures and give you enough time to safely save files and shut down your system in case of a prolonged blackout. Exclusive ABM technology increases battery life by 50 percent and closely monitors battery health to provide advanced notice when batteries need replacing.
    Optional Gigabit Network Interface Offers 24/7 Remote Access
    The NETWORK-M2 Gigabit network card (sold separately) enables full remote configuration and management, including load shedding, reboots of connected equipment and safe shutdowns. UPS firmware can also be flashed remotely through the NETWORK-M2 without dropping the load, so you don't have to plan for downtime. The card meets both UL 2900-1 and IEC 62443-4-2 standards for cybersecurity, which were developed to address the vulnerability of connected devices to known malware/exploits and to protect business from these risks. An optional Environmental Monitoring Probe Gen 2 (EMPDT1H1C2, sold separately) provides a variety of environmental monitoring capabilities, including temperature and humidity conditions.
    C13 Outlets Protect Your Connected Components
    Eight C13 outlets provide connected equipment with pure sine wave AC output and allow you to monitor power consumption down to the outlet group level. Four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads.
    LCD Interface Keeps You Informed at a Glance
    The five-button graphical LCD provides useful information about the UPS itself, load status,
    events, measurements and settings. To save energy, the LCD switches to the screen saver after five minutes of inactivity. The backlight LCD automatically dims after 10 minutes of inactivity.
    Advanced Communications Ports Allow for Automatic Saves and Shutdowns
    RS-232 and USB ports connect to a serial-enabled or USB-enabled device for a variety of communication options (cables are included). The RPO/ROO connector permits emergency shutdown or remote restart of all connected equipment. By adding the optional RELAY-MS interface card (sold separately), a dry-contact relay port can be programmed through the LCD to provide reliable communications to automation and industrial components.
    Product TypeLine-interactive UPS
    Product Name5P Tower UPS
    ManufacturerEaton Corporation
    Manufacturer Part Number5P1550G
    Product Model5P
    Technical Information
    Receptacle TypeIEC 60320 C13
    Receptacle Detail8 x IEC 60320 C13
    Plug/Connector TypeIEC 60320 C14

  • View AllClose

    Warranty Information

    All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
    View AllClose

    0 Reviews

    View AllClose
    Eaton 5P UPS 5P1550G
