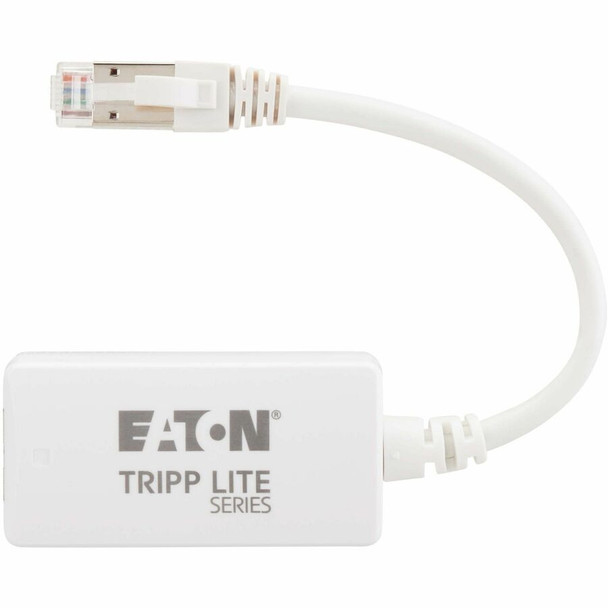

Eaton N234-MI-06N-BX Tripp Lite Series Medical-grade Ethernet Network Isolator For Patient Care Vicin
- SKU:
- 21465178
- MPN:
- n234-mi-06n-bx
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/31/2026 03:42:08 AM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $212.39 each 212.39 |
| Buy 3 or above | and pay only $204.95 each 204.95 |
- Stock Update:
- 07/31/2026 03:42:08 AM PST
Description
This item is brand-new, factory sealed.
Features | Isolates Medical Equipment on an Ethernet Network to Enhance Patient Safety
The N234-MI-06N-BX connects medical equipment to a non-medical appliance or system, such as a single computer or a local Ethernet network. It protects staff and patients from dangerous leakage currents that can travel through standard copper Ethernet cable without affecting the flow or speed of 10G data.
Ideal for Use in a Wide Range of Medical Applications
This medical-grade isolator is recommended for interfacing between medical and non-medical equipment where no essential performance is required. The suitability of use and isolation shall be determined in the end use application and evaluation. It is also ideal for connecting a clinic or practice's network to the PC of a prolonged EEG system or connecting an analysis computer to a doctor's consulting room with an EMG measuring station.
Compatible with Standard Ethernet-Enabled Medical Equipment and Cabling
This medical-grade isolator is compatible with patient monitoring systems, diagnostic imaging equipment, infusion pumps, medical PCs and laboratory analyzers. It can also be used with network switches, servers and other IT infrastructure in healthcare facilities that require galvanic isolation between medical and non-medical networks. Its RJ45 ports connect to any standard Cat6 Ethernet cable.
Complies with IEC 60601-1 Standards for Use in Patient Care Vicinities
The N234-MI-06N-BX complies with IEC 60601-1 and EMC/IEC 60601-1-2 safety standards for a network connection between a medical device and an Ethernet network or non-medical device (PC or laptop). Because it meets IEC 60601-1 standards, this medical network isolator can be used in patient care vicinities. For example, you can use this 60601-1 network isolator in the connection between a clinic's network and the PC of a prolonged EEG system.
Easy to Install on an Ethernet Network
This Ethernet network isolator has one female RJ45 port and one male RJ45 connector attached to a six-inch cable to complete the connection between compatible medical equipment and a computer or data network in a patient care vicinity. Completely plug and play, this isolator does not require any software or an external power supply.
TAA-Compliant for GSA Schedule Purchases
The N234-MI-06N-BX is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
Package Contents:
- N234-MI-06N-BX Medical-Grade Ethernet Network Isolator for Patient Care Vicinities
- Quick Start Guide
Features
- N234-MI-06N-BX Medical-Grade Ethernet Network Isolator for Patient Care Vicinities
- Quick Start Guide
TAA Compliant:
Yes
Certifications & Standards:
2MOPP; IEC 60601-1
Application/Usage:
Patient Care Vicinity
Medical Equipment
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Waste Electrical and Electronic Equipment Directive (WEEE)
Specs
| Physical Characteristics | |
| Color Details | <p>Cable Jacket Color White</p> |
| Product Material | Low Smoke Zero Halogen |
| Weight (Approximate) | 1.76 oz |
| Product Color | White |
| Height | 1.8" |
| Cable Length | 6" |
| Color Family | White |
| Width | 2.6" |
| Depth | 1" |
| Material Details | <p>Cable Jacket Material LSZH</p> |
| Warranty | |
| Limited Warranty | 1 Year |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Features | Isolates Medical Equipment on an Ethernet Network to Enhance Patient Safety The N234-MI-06N-BX connects medical equipment to a non-medical appliance or system, such as a single computer or a local Ethernet network. It protects staff and patients from dangerous leakage currents that can travel through standard copper Ethernet cable without affecting the flow or speed of 10G data. Ideal for Use in a Wide Range of Medical Applications This medical-grade isolator is recommended for interfacing between medical and non-medical equipment where no essential performance is required. The suitability of use and isolation shall be determined in the end use application and evaluation. It is also ideal for connecting a clinic or practice's network to the PC of a prolonged EEG system or connecting an analysis computer to a doctor's consulting room with an EMG measuring station. Compatible with Standard Ethernet-Enabled Medical Equipment and Cabling This medical-grade isolator is compatible with patient monitoring systems, diagnostic imaging equipment, infusion pumps, medical PCs and laboratory analyzers. It can also be used with network switches, servers and other IT infrastructure in healthcare facilities that require galvanic isolation between medical and non-medical networks. Its RJ45 ports connect to any standard Cat6 Ethernet cable. Complies with IEC 60601-1 Standards for Use in Patient Care Vicinities The N234-MI-06N-BX complies with IEC 60601-1 and EMC/IEC 60601-1-2 safety standards for a network connection between a medical device and an Ethernet network or non-medical device (PC or laptop). Because it meets IEC 60601-1 standards, this medical network isolator can be used in patient care vicinities. For example, you can use this 60601-1 network isolator in the connection between a clinic's network and the PC of a prolonged EEG system. Easy to Install on an Ethernet Network This Ethernet network isolator has one female RJ45 port and one male RJ45 connector attached to a six-inch cable to complete the connection between compatible medical equipment and a computer or data network in a patient care vicinity. Completely plug and play, this isolator does not require any software or an external power supply. TAA-Compliant for GSA Schedule Purchases The N234-MI-06N-BX is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts. |
| Product Type | Medical Ethernet Isolator |
| Product Name | N234-MI-06N-BX Medical Ethernet Isolator |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N234-MI-06N-BX |
| Product Model | N234-MI-06N-BX |
| Technical Information | |
| Ingress Protection (IP) Rating |
|
| Connector Type | RJ-45 |
| Features | Plug & Play |
