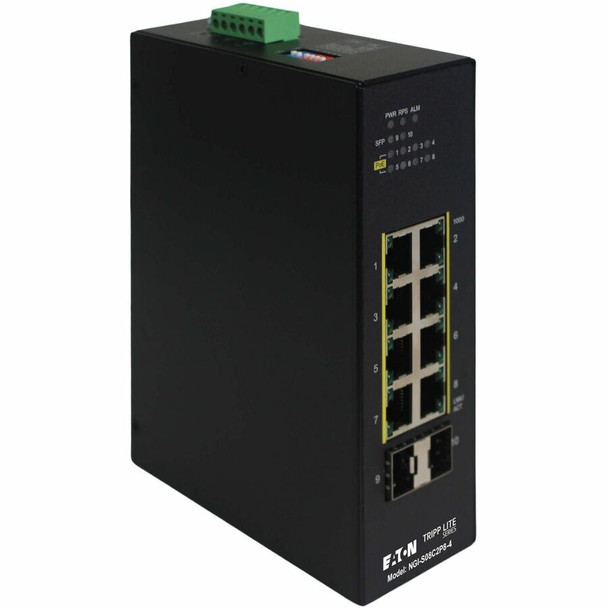

Tripp Lite series NGI-S08C2P8-4 Ethernet Switch

This item is brand-new, factory sealed.

8-Port Smart Gigabit Ethernet Switch Connects Your Network Devices to a LAN

This Lite Managed switch transmits both power and data over a Gigabit Ethernet network. Eight auto-negotiating 10/100/1000 Mbps ports with Power over Ethernet (PoE) send data via Cat5e/6/6a cable only to the devices designated to receive it, which improves the efficiency and potential throughput of the network. The NGI-S08C2P8-4 also features two GbE SFP slots for uplinking data to other switches via optical fiber. LEDs indicate power, alarm, PoE, link/activity and SFP status.

PoE+ Ports Deliver Power to Devices Without Access to AC Outlets

This smart switch features eight PoE ports capable of powering compatible PoE appliances, such as VoIP phones, IP surveillance cameras, WAPs and IoT (Internet of Things) devices, without the expense and effort of running separate power lines or installing the devices near an AC outlet. The NGI-S08C2P8-4 provides PoE+ compatibility up to 30W per port and a PoE budget of 240W with 48-57 VDC input to satisfy your demand for high-power network devices.

Protective Metal Housing Built to Last in Harsh Environments

The hardened NGI-S08C2P8-4 adds 10/100/1000 Mbps Gigabit Ethernet capacity to production environments, telecommunication applications, security systems and building management systems that demand high bandwidth convergence, as well as other environments with space constraints and wide temperature ranges. The IP30 industrial-grade case withstands vibration, shock and free fall. It can also operate in extreme temperatures ranging from -10 to 60 degrees Celsius (14 to 140 degrees Fahrenheit).

Manages and Monitors Devices via Innovative Management Platform

The Lite Managed switch's user-friendly platform helps you manage your network via web interface. Three distinctive features help you monitor connected devices, real-time traffic and link information. The Wizard is a set-up assistant that guides you step-by-step through initial management. The Topology Map with visual connectivity diagram displays network infrastructure and highlights link status. The Dashboard provides important performance and traffic-related information. A tri-color scheme - red (critical), yellow (alert), green (normal) - keeps you up to date on any network irregularities.

Intelligent Connection Technology Ensures Plug-and-Play Operability

The NGI-S08C2P8-4 supports MAC address auto-learning and auto-aging for efficient routing, as well as automatic MDI/MDI-X crossover detection for plug-and-play functionality. It also supports advanced Layer 2 features, including VLAN, QoS, IGMP snooping, storm control, security protocols and other device management features that fulfill the needs of high-performance managed industrial networks. IEEE 802.3x flow control permits smooth transmission of large files. The intuitive dashboard and GUI allow easy configuration in less than five minutes.

Works with the Most Popular Web Browsers

The NGI-S08C2P8-4 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGI-S08C2P8-4 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).

• NGI-S08C2P8-4 Ethernet Switch
• DIN Rail-mounting Clip (Pre-installed)
• Terminal block (pre-installed)
• RJ45 and SFP port dust caps (to protect unused ports)
• Quick Start Guide
