Eaton Tripp Lite series 16-Port Managed Gigabit Ethernet Switch - Layer 2, 1 Gbps, 2x GbE SFP Ports, 1U Rack/Desktop (ngs16c2-1)
- SKU:
- 21510440
- MPN:
- ngs16c2-1
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 06/14/2026 09:24:53 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 3 or above | and pay only $203.39 each 203.39 |
- Stock Update:
- 06/14/2026 09:24:53 PM PST
Description
This item is brand-new, factory sealed.

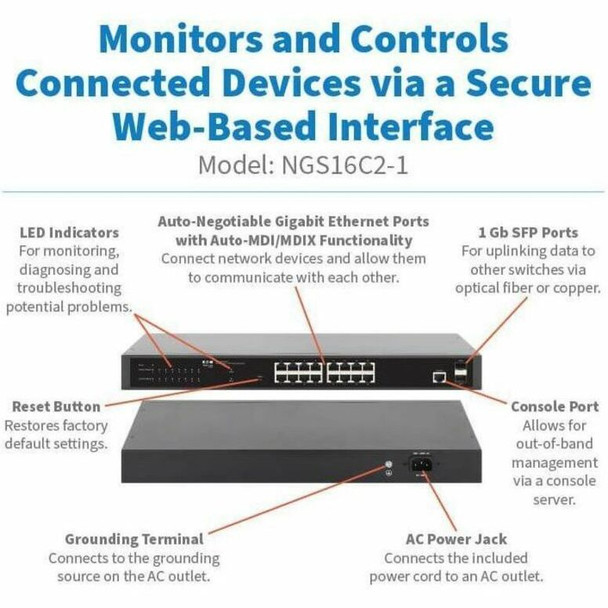

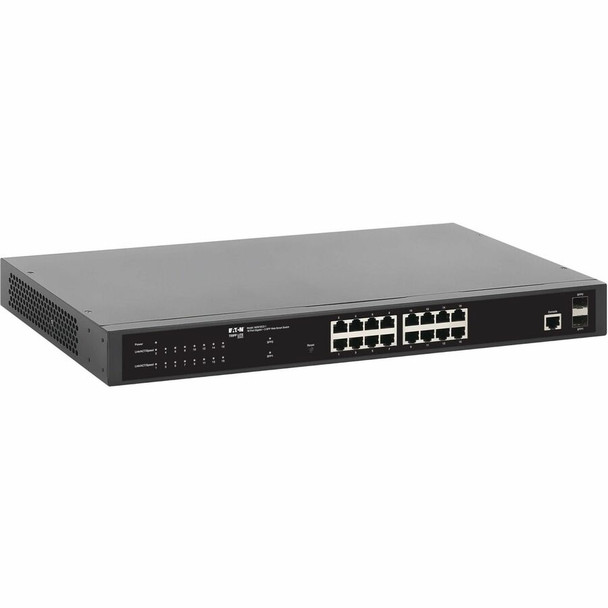

Enterprise Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN
This space-saving desktop switch transmits data over a Gigabit Ethernet (GbE) network. Sixteen auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a/8 cable only to the computers, routers, hubs and other devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the switch is powered on and which Ethernet ports are connected and showing activity.
Recommended for IT Managers in Server Message Block (SMB) and Enterprise Network Installs
The NGS16C2-1 is ideal for IT pros needing a high-performance managed network switch for white space installations. It is also recommended for data centers using Layer 2 and Layer 3 management of connected servers, as well as small installations that manage multiple products within their network closets.
Built-In Web Smart Management Software
The Web Smart software provides rich Layer 2 functionality for monitoring and controlling connected equipment via a simple web interface. VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance.
Dual Dedicated SFP Ports
Two GbE SFP ports connect to user-supplied SFP modules (sold separately) for uplinking data to other switches via optical fiber or copper. LEDs indicate interface traffic.
Compliant with Energy Efficient Ethernet Standards
The NGS16C2-1 automatically shifts unused ports to a low power state without interrupting its network connection. The switch meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3z, 802.3at, 802.3af, 802.1q and 802.1p standards.
Works with the Most Popular Web Browsers
The NGS16C2-1 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGS16C2-1 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only).
Versatile Installation Options
The heavy-duty metal housing can be positioned on a level surface using the included rubber feet to minimize external vibration or mounted into 1U of an EIA-standard 19-inch rack using the included brackets and screws. The detachable C14 to C13 power cord connects to a protected UPS, generator or mains input AC source.
Package Contents:
- NGS16C2-1 Ethernet Switch
- Rack-mounting Hardware
- 4 x Rubber Feet
- C14 to C13 power cord, 5 ft. (1.5 m)
- Owner's Manual
Features
- NGS16C2-1 Ethernet Switch
- Rack-mounting Hardware
- 4 x Rubber Feet
- C14 to C13 power cord, 5 ft. (1.5 m)
- Owner's Manual
Certifications & Standards:
- CAN/CSA-C22.2 No. 62368-1 (Canada)
- IEC 62368-1
- UL 62368-1
- CE (Europe)
- FCC Part 15 Class B (USA)
- UKCA
Application/Usage:
Network
Data Center
Server
Router
PC
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Specs
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Plug/Connector Type | C14 |
| Power Source | Power Supply |
| PoE Budget | 220 W |
| Input Voltage |
|
| PoE (RJ-45) Port | Yes |
| Power Consumption | 272.10 W |
| Physical Characteristics | |
| Product Material | Metal |
| Form Factor |
|
| Weight (Approximate) | 4.18 lb |
| Height | 1.7" |
| Compatible Rack Unit | 1U |
| Width | 8.2" |
| Depth | 17.3" |
| Warranty | |
| Limited Warranty | 3 Year |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Uplink Port | Yes |
| Port/Expansion Slot Details |
|
| Total Number of Network Ports | 16 |
| I/O Expansions | |
| Total Number of Expansion Slots | 2 |
| Number of SFP Slots | 2 |
| Expansion Slot Type | SFP |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Enterprise Managed Gigabit Ethernet Switch Connects Your Network Devices to a LAN This space-saving desktop switch transmits data over a Gigabit Ethernet (GbE) network. Sixteen auto-negotiating 10/100/1000 Mbps ports send data via Cat5e/6/6a/8 cable only to the computers, routers, hubs and other devices designated to receive it, which improves the efficiency and potential throughput of the network. LEDs indicate when the switch is powered on and which Ethernet ports are connected and showing activity. Recommended for IT Managers in Server Message Block (SMB) and Enterprise Network Installs The NGS16C2-1 is ideal for IT pros needing a high-performance managed network switch for white space installations. It is also recommended for data centers using Layer 2 and Layer 3 management of connected servers, as well as small installations that manage multiple products within their network closets. Built-In Web Smart Management Software The Web Smart software provides rich Layer 2 functionality for monitoring and controlling connected equipment via a simple web interface. VLAN, trunking, VPN, port monitoring and other features improve network efficiency and performance. Dual Dedicated SFP Ports Two GbE SFP ports connect to user-supplied SFP modules (sold separately) for uplinking data to other switches via optical fiber or copper. LEDs indicate interface traffic. Compliant with Energy Efficient Ethernet Standards The NGS16C2-1 automatically shifts unused ports to a low power state without interrupting its network connection. The switch meets IEEE 802.3ab, 802.3i, 802.3u, 802.3x, 802.3z, 802.3at, 802.3af, 802.1q and 802.1p standards. Works with the Most Popular Web Browsers The NGS16C2-1 is browser-based and works independently from the connected computer's operating system. Because switch compatibility is based on common hardware standards, rather than system software dependencies, the NGS16C2-1 accommodates most platforms. Preferred web browsers include Google Chrome (on both Windows and macOS) and Microsoft Edge (Windows only). Versatile Installation Options The heavy-duty metal housing can be positioned on a level surface using the included rubber feet to minimize external vibration or mounted into 1U of an EIA-standard 19-inch rack using the included brackets and screws. The detachable C14 to C13 power cord connects to a protected UPS, generator or mains input AC source. |
| Product Type | Ethernet Switch |
| Product Name | NGS16C2-1 Ethernet Switch |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | NGS16C2-1 |
| Product Model | NGS16C2-1 |
| Media & Performance | |
| Ethernet Technology | Gigabit Ethernet |
| Maximum Data Transfer Rate | 128 MB/s |
| Media Type Supported |
|
| Network Technology |
|
| Network & Communication | |
| Layer Supported | 3 |
| Networking Standards |
|
| Technical Information | |
| Features |
|
