Eaton
Eaton Tripp Lite Series USB-C Universal Dock, Dual Display - 4K HDMI and DisplayPort, USB 3.2 Gen 1 Hub, GbE, 100W PD Charging (u442-dock24dl2a)
- SKU:
- 21156734
- MPN:
- u442-dock24dl2a
- Availability:
- Usually ships the same or next business day. In stock at our TX warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/25/2026 06:24:59 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $260.78 each 260.78 |
| Buy 3 or above | and pay only $253.34 each 253.34 |
- Stock Update:
- 07/25/2026 06:24:59 PM PST
Description
This item is brand-new, factory sealed.
Features | USB-C Docking Station Turns Your Laptop into a Multiport Workstation
This professional workspace dock dramatically expands the potential of your MacBook or Windows laptop by adding 12 ports to its USB-C or Thunderbolt 3 port. Not only does the U442-DOCK24DL2A allow you to transmit 4K video to two displays at the same time, but you can also add USB peripherals, connect to a Gigabit Ethernet network, charge your laptop and more.
Transmits 4K Video and Digital Audio to 2 Displays Simultaneously
Two HDMI and two DisplayPort (DP) outputs individually support 4K video resolutions up to 3840 x 2160 at 60 Hz with High Dynamic Range (HDR), 36-bit Deep Color and 4:4:4 chroma subsampling. You can connect two HDMI monitors, two DP monitors or one HDMI and one DP monitor at the same time and transmit 4K @ 60 Hz video to both. This allows you to display the image from the host computer (including M1/M2/M3 MacBooks) on two monitors, extend your host desktop across two monitors with different windows open on each, or combine the desktop and two monitors into one large display as a video wall.
USB Hub Ports Connect Keyboards, External Storage and Other Peripherals
One USB-C and five USB-A hub ports accept USB peripherals, including keyboards/mice, hard drives and flash drives, and printers. All six ports support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One port also supports 1.5A charging for charging mobile phones or tablets.
PD Charging Port Charges Host Device via AC Wall Charger
The USB-C Power Delivery (PD) port supports power output up to 100W, which is more than sufficient for charging and powering the connected source device, such as a MacBook Pro, Windows laptop or Chromebook. Just connect the device's wall charger to both the USB-C PD port and an AC outlet.
Accesses a Wired Gigabit Ethernet Network
The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.
Connects Speakers, Microphone and Other Audio Equipment
The 3.5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast.

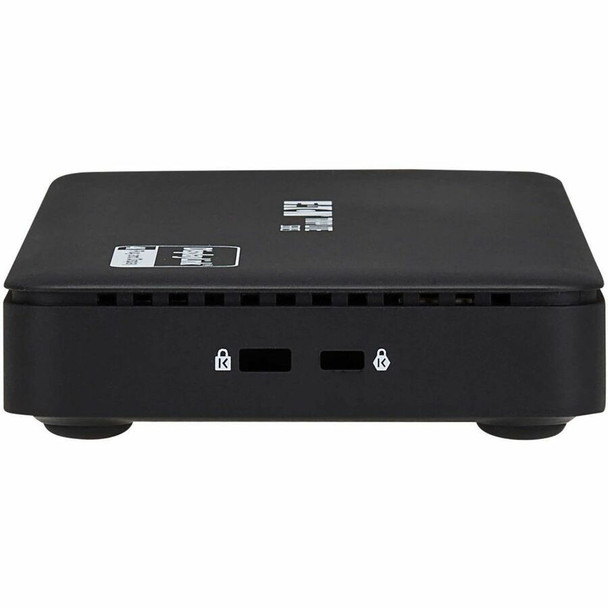

Anti-Theft Lock Protects the USB-C Docking Station When You Aren't Around
Connect a user-supplied computer/laptop security cable lock (not included) to this port to protect the dock against theft.
Package Contents:
- Universal U442-DOCK24DL2A Docking Station
- USB-C Host Cable (M/M), 4 ft. (1.2 m)
- External Power Supply (Input: 100-240V, 50/60 Hz, 2.5A; Output: 21V 7.1A) with 4 ft. (1.2 m) Cord and NEMA 5-15P Plug
- Installation Instructions
Features
- Universal U442-DOCK24DL2A Docking Station
- USB-C Host Cable (M/M), 4 ft. (1.2 m)
- External Power Supply (Input: 100-240V, 50/60 Hz, 2.5A; Output: 21V 7.1A) with 4 ft. (1.2 m) Cord and NEMA 5-15P Plug
- Installation Instructions
Compatibility:
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
Brand Compatibility:
Apple
Country of Origin:
Vietnam
Specs
| Power Description | |
| Input Voltage Detail |
|
| Power Source Type | Power Adapter |
| Physical Characteristics | |
| Weight (Approximate) | 12.80 oz |
| Product Color | Black |
| Height | 0.87" |
| Color Family | Black |
| Width | 8.86" |
| Depth | 3.35" |
| Warranty | |
| Limited Warranty | 1 Year |
| Interfaces/Ports | |
| USB Power Delivery | 100W |
| Number of USB Type-A Ports | 5 |
| USB Type-C Detail | 1 x USB-C - USB 3.2 Gen 1 (5 Gbps), 1 x USB-C: 100W (20V 5A) Power Delivery (PD 2.0) |
| Number of DisplayPort Outputs | 2 |
| Number of HDMI Outputs | 2 |
| Number of RJ-45 Ports | 1 |
| Number of USB Type-C Ports | 2 |
| Total Number of USB Ports | 7 |
| DisplayPort Version | 1.4 |
| USB Type-C | Yes |
| Headphone/Microphone Combo Port | Yes |
| Network (RJ-45) | Yes |
| Host Interface | USB Type C |
| DisplayPort | Yes |
| USB Type-A | Yes |
| HDMI | Yes |
| Number of USB 3.2 Gen 1 Type-A Ports | 5 |
| General Information | |
| Brand Name | Tripp Lite series |
| Manufacturer Website Address | http://www.eaton.com |
| Marketing Information | Features | USB-C Docking Station Turns Your Laptop into a Multiport Workstation This professional workspace dock dramatically expands the potential of your MacBook or Windows laptop by adding 12 ports to its USB-C or Thunderbolt 3 port. Not only does the U442-DOCK24DL2A allow you to transmit 4K video to two displays at the same time, but you can also add USB peripherals, connect to a Gigabit Ethernet network, charge your laptop and more. Transmits 4K Video and Digital Audio to 2 Displays Simultaneously Two HDMI and two DisplayPort (DP) outputs individually support 4K video resolutions up to 3840 x 2160 at 60 Hz with High Dynamic Range (HDR), 36-bit Deep Color and 4:4:4 chroma subsampling. You can connect two HDMI monitors, two DP monitors or one HDMI and one DP monitor at the same time and transmit 4K @ 60 Hz video to both. This allows you to display the image from the host computer (including M1/M2/M3 MacBooks) on two monitors, extend your host desktop across two monitors with different windows open on each, or combine the desktop and two monitors into one large display as a video wall. USB Hub Ports Connect Keyboards, External Storage and Other Peripherals One USB-C and five USB-A hub ports accept USB peripherals, including keyboards/mice, hard drives and flash drives, and printers. All six ports support fast USB 3.2 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices. One port also supports 1.5A charging for charging mobile phones or tablets. PD Charging Port Charges Host Device via AC Wall Charger The USB-C Power Delivery (PD) port supports power output up to 100W, which is more than sufficient for charging and powering the connected source device, such as a MacBook Pro, Windows laptop or Chromebook. Just connect the device's wall charger to both the USB-C PD port and an AC outlet. Accesses a Wired Gigabit Ethernet Network The RJ45 port offers access to a Gigabit Ethernet network when Wi-Fi is unavailable or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers. Connects Speakers, Microphone and Other Audio Equipment The 3.5 mm mini stereo jack is convenient for connecting speakers, headphones or a microphone to your workstation. You can listen to music or record the latest episode of your podcast. Anti-Theft Lock Protects the USB-C Docking Station When You Aren't Around Connect a user-supplied computer/laptop security cable lock (not included) to this port to protect the dock against theft. |
| Product Type | Docking Station |
| Product Name | Universal U442-DOCK24DL2A Docking Station |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | U442-DOCK24DL2A |
| Product Model | U442-DOCK24DL2A |
| Product Line | Universal |
| Network & Communication | |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Software | |
| Operating System Supported |
|
| Technical Information | |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Screen Mode Supported |
|
| Maximum Data Transfer Rate | 6 GB/s |
| Cable Length | 3.94 ft |
| Features |
|
| Supported Resolutions |
|
| Device Supported |
|
| Connectivity Technology | Wired |
