Description

This item is brand-new, factory sealed.

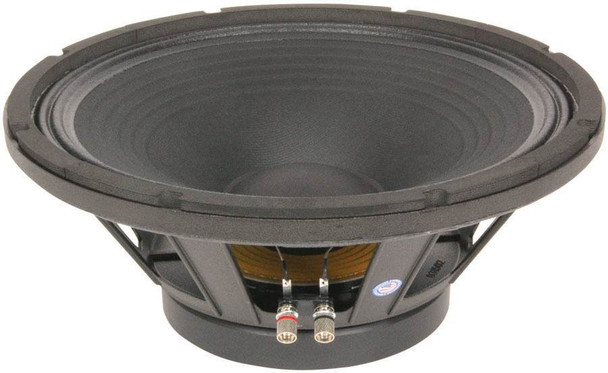

This table charts the specifications for the DELTA PRO-15A speaker
* Nominal Basket Diameter: 15-in , 381 mm.
* Nominal Impedance: 8 Ohms.
* Power Rating:
* Watts: 400 W.
* Music Program: 800 W.
* Resonance: 42 Hz.
* Usable Frequency Range: 54 Hz - 4.2 kHz.
* Sensitivity: 101.6 dB.
* Magnet Weight: 80 oz..
* Gap Height: 0.375-in , 9.5 mm.
* Voice Coil Diameter: 2.5-in , 64 mm.
* Thiele & Small Parameters.
* Resonant Frequency (fs): 42 Hz.
* DC Resistance (Re): 5.71 Ohms.
* Coil Inductance (Le): 0.83m H.
* Mechanical Q (Qms): 4.73.
* Electromagnetic Q (Qes): 0.44.
* Total Q (Qts): 0.4.
* Compliance Equivalent Volume (Vas): 243.5 liters / 8.6 cu.ft..
* Peak Diaphragm Displacement Volume (Vd): 368 cc.
* Mechanical Compliance of Suspension (Cms): 0.24 mm/N.
* BL Product (BL): 14.5 T-M.
* Diaphragm Mass Inc. Airload (MMs): 61 grams.
* Efficiency Bandwidth Product (EBP): 95.
* Maximum Linear Excursion (Xmax): 4.3 mm.
* Surface Area of Cone (Sd): 856.3 cm2.
* Maximum Mechanical Limit (Xlim): 13.7 mm.
-----------------------------------
Recommended Enclosure Volume;
* Sealed: 28-42.5 liters / 1-1.5 cu.ft..
* Vented: 57-133 liters / 2-4.7 cu.ft..
* Driver Volume Displaced: 0.138 cu.ft. / 3.92 liters.
* Overall Diameter: 15.32-in , 389.1 mm.
* Baffle Hole Diameter: 14-in , 355.6 mm.
* Front Sealing Gasket: Yes.
* Rear Sealing Gasket: Yes.
* Mounting Holes Diameter: 0.28-in , 7.1mm.
* Mounting Holes B.C.D.: 14.56-in , 369.8mm.
* Depth: 6.06-in , 153.9 mm.
* Net Weight: 17 lbs, 7.71 kg.
* Shipping Weight: 19.1 lbs, 8.66 kgs.
* Materials of Construction.
* Coil Construction: Aluminum voice coil.
* Coil Former: Polyimide former.
* Magnet Composition: Ferrite magnet.
* Core Details: Vented & extended core.
-----------------------------------.
* Basket Materials: Die-cast aluminum basket.
* Cone Composition: Paper cone.
* Cone Edge Composition: Cloth cone edge.
* Dust Cap Composition: Solid composition paper dust cap.

Features

Additional Information:

Driver Size: 15"

Driver Material: Paper

Country of Origin:
United States

Specs

Physical Characteristics
Product Material	Aluminum Cloth
Speaker Depth	6.06"
Weight (Approximate)	17 lb
Speaker Diameter	15.32"
Depth	6.06"
Warranty
Limited Warranty	7 Year
General Information
Brand Name	Eminence
Manufacturer Website Address	http://www.eminence.com
Marketing Information	Each Eminence Professional model can be identified by its cast aluminum Eminence chassis that is lightweight and strong. Aluminum does not conduct the magnetic field out of the gap, thereby making the motor strength higher and the stray magnetic field lower. We coat each chassis and all metal components with an epoxy-acrylic finish using our in-house e-coat process. We can control the thickness of that coating to within 0.001"; critical when working with close tolerance transducer motor designs. We then add front and rear sealing gaskets on each model to accommodate front or rear loading.
Product Type	Speaker
Product Name	Professional DELTA PRO-15A Speaker
Manufacturer	Eminence Speaker, LLC
Manufacturer Part Number	DELTAPRO15A
Product Model	DELTA PRO-15A
Product Series	Professional
Technical Information
PMPO Output Power	800 W
Minimum Frequency Response	54 Hz
Maximum Frequency Response	4.20 kHz
Sensitivity	102 dB
Application/Usage	Indoor/Outdoor
Impedance	8 Ohm
RMS Output Power	400 W
