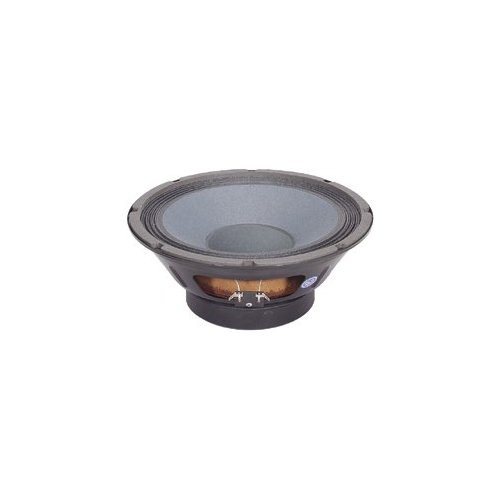

Eminence Legendbp102 10" Bass Guitar Spkr; 400w Max; 8 Ohms W/copper Voice Coil

This item is brand-new, factory sealed.

This table charts the specifications for the LEGEND BP102 speaker
* Nominal Basket Diameter: 10-in , 254 mm.
* Nominal Impedance: 8 Ohms.
* Power Rating:
* Watts: 200 W.
* Music Program: 400 W.
* Resonance: 35 Hz.
* Usable Frequency Range: 40 Hz - 2 kHz.
* Sensitivity: 91.8 dB.
* Magnet Weight: 38 oz..
* Gap Height: 0.312-in , 7.9 mm.
* Voice Coil Diameter: 2-in , 51 mm.
* Thiele & Small Parameters.
* Resonant Frequency (fs): 35 Hz.
* DC Resistance (Re): 5.59 Ohms.
* Coil Inductance (Le): 0.83m H.
* Mechanical Q (Qms): 5.36.
* Electromagnetic Q (Qes): 0.47.
* Total Q (Qts): 0.43.
* Compliance Equivalent Volume (Vas): 91.2 liters / 3.22 cu.ft..
* Peak Diaphragm Displacement Volume (Vd): 207.4 cc.
* Mechanical Compliance of Suspension (Cms): 0.54 mm/N.
* BL Product (BL): 10 T-M.
* Diaphragm Mass Inc. Airload (MMs): 38 grams.
* Efficiency Bandwidth Product (EBP): 75.
* Maximum Linear Excursion (Xmax): 6.2 mm.
* Surface Area of Cone (Sd): 334.5 cm2.
* Maximum Mechanical Limit (Xlim): 10 mm.
-----------------------------------
Recommended Enclosure Volume;
* Sealed: Acceptable.
* Vented: Acceptable.
* Driver Volume Displaced: 0.041 cu.ft. / 1.17 liters.
* Overall Diameter: 10.08-in , 256 mm.
* Baffle Hole Diameter: 9.18-in , 233.2 mm.
* Front Sealing Gasket: Yes.
* Rear Sealing Gasket: Yes.
* Mounting Holes Diameter: 0.25-in , 6.4mm.
* Mounting Holes B.C.D.: 9.66-in , 245.4mm.
* Depth: 4.25-in , 108 mm.
* Net Weight: 8.9 lbs, 4.04 kg.
* Shipping Weight: 9.1 lbs, 4.13 kgs.
* Materials of Construction.
* Coil Construction: Copper voice coil.
* Coil Former: Polyimide former.
* Magnet Composition: Ferrite magnet.
* Core Details: Non-vented core.
-----------------------------------.
* Basket Materials: Pressed steel basket.
* Cone Composition: Paper cone.
* Cone Edge Composition: Cloth cone edge.
* Dust Cap Composition: Zurette dust cap.
