Description

This item is brand-new, factory sealed.

Specifications

Mfr Part Number: EPF1200EWT
Features:
- 80 PLUS Titanium with over 94% efficiency
- Compact 160mm with up to 1200W powerful output
- Patented Dust Free Rotation (DFR) technology for the PSU fan D.F. switch for users to activate
- DFR function anytime during operation
Total Power: 1200W
Input:
- Current: 15-7A
- Voltage: 100V - 240V AC
- Frequency Range: 47 - 63Hz
Output: +3.3V @ 25A, +5V @ 25A, +12V1 @ 25A, +12V2 @ 25A,+12V3 @ 40A,+12V4 @ 40A,-12V @ 0.3A, +5VSB @ 3A
?Protection: OCP, OVP, UVP, SCP, OPP, OTP
Connectors:
- 1 x Mainboard 24 Pin
- 1 x CPU 4+4 Pin
- 1 x CPU 8 Pin
- 6 x PCI-E 6+2 Pin (8 Pin)
- 12 x SATA
- 4 x 4 Pin Molex
- 1 x FDD
Dimensions: 160(D) x 150(W) x 86(H)mm
Gross Weight: 3.55kg

Features

Certifications & Standards:

T?V Rheinland

Environmentally Friendly:
Yes

Energy Efficiency Compliance:
Energy-related Products Directive Lot 6 (ErP Lot 6)

Energy Efficiency Certification:
80 Plus Platinum

Environmental Compliance:

Waste Electrical and Electronic Equipment Directive (WEEE)
China Restriction of Hazardous Substances (China RoHS)

Specs

Power Description
Number of +12V Rails	4
Output Power	1200 W
Output Current	25 A 40 A 300 mA 3 A
Input Voltage	120 V AC 230 V AC
Output Voltage	3.3 V DC 5 V DC 12 V DC -12 V DC
Physical Characteristics
Form Factor	Internal
Height	3.4"
Width	5.9"
Depth	6.3"
Warranty
Limited Warranty	5 Year
General Information
Brand Name	Enermax
Manufacturer Website Address	http://www.enermax.com
Marketing Information	Platimax D.F. power supply series is 80 PLUS® Platinum certified in 160mm depth, featuring full modular cable design and stylish individual sleeved cables - SLEEMAX. Moreover, Platimax D.F. is built with ENERMAX patented DFR TM (Dust Free Rotation) technology with smart semi-fanless control ensuring silent operation. Users can activate the DFR TM function at any time during operation through the unique D.F. switch. Platimax D.F. is surely a perfect solution for high-end gaming rigs or multi-GPU systems.
Product Type	Power Supply

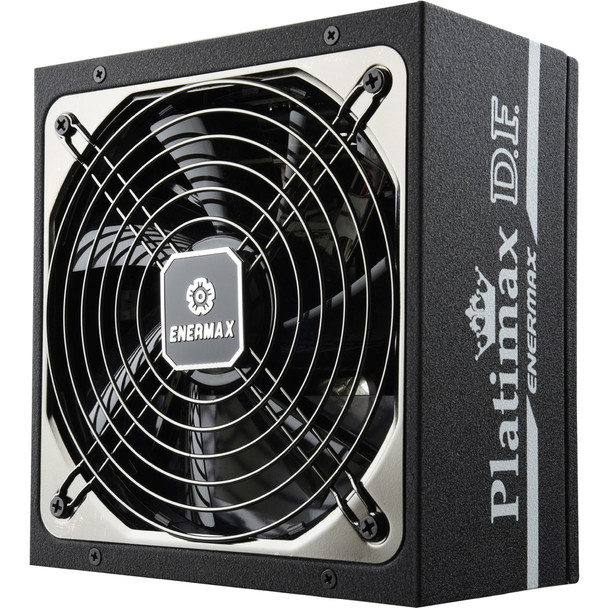

Product Name	Platimax D.F. EPF1200EWT Power Supply
Manufacturer	Enermax Technology Corporation
Manufacturer Part Number	EPF1200EWT
Product Model	EPF1200EWT
Product Line	Platimax D.F.
Technical Information
Specification Compliance	ATX12V/EPS12V
Efficiency	93%
Number of Fans	1
Modular	Yes
