Enermax
Enermax ELC-LMT240-RGB Cooling Fan/Radiator/Water Block/Pump - 6 Pack
- SKU:
- 18211621
- MPN:
- elc-lmt240-rgb
- Availability:
- Out of stock
- Stock Update:
- 01/14/2026 01:37:19 PM PST
- Stock Update:
- 01/14/2026 01:37:19 PM PST
Description
This item is brand-new, factory sealed.
The LIQMAX III RGB All-in-One CPU liquid cooler with RGB lighting. The water block with the acrylic look is equipped with the Aurabelt™ design, which provides brilliant lighting effects. LIQMAX III RGB supports RGB synchronization with motherboards that have 4-pin RGB connectors (+12V/G/R/B). Thanks to ENERMAX's patented Dual-Chamber Design, Central Coolant Inlet (CCI) and Shunt-Channel Technology (SCT) the cooler achieves faster heat transfer and extended lifetime. The RGB fans with dual-convex blades are optimized for radiators and generate high static pressure to drive heat out of the cooling fins. The LIQMAX III RGB is an excellent cooler for gaming cases that do not want to miss RGB lighting.
Design
The LIQMAX III RGB is an All-in-One CPU liquid cooler with pre-filled coolant. This makes a water cooler as simple as a regular air cooler. Easy installation and no maintenance. The fully sealed design ensures the lowest evaporation of liquid and a long product lifetime.
Dual-Chamber Water Block
The patented Dual-Chamber Design isolates the pump from the heated coolant, extending the life of the cooler.
The cold coolant enters the first chamber with the pump inside and is then forced through the cold plate absorbing heat. The heated coolant is collected in the second chamber and then transported to the radiator for cooling.
Central Coolant Inlet (CCI) Design
The Central Coolant Inlet (CCI) injects coolant in the middle area above the CPU and distributes it evenly across the cold plate using the patented Shunt Channel Technology (SCT). The result is a shorter coolant flow path and faster heat transfer.
Aurabelt™ Water Block
The Aurabelt™ water block of LIQMAX III RGB is equipped with RGB LEDs designed for synchronization with RGB motherboards from ASRock, ASUS, Gigabyte and MSI. LIQMAX III RGB offers programmable lighting effects via motherboards software. For stand-alone operation, the lighting of the water block is kept white.
Tubes
The premium woven tubings are made of flexible and long-lasting polyamide rubber with multiple layers ensuring zero permeability and long-lasting operation. The tubes offer an easy system installation thanks to a length of 400mm.
For maximum safety, the connections to the fittings are sealed with extra strong glue.
Radiator
The radiator offers a large cooling surface with high heat exchange capacity thanks to the fine channels and thin aluminium fins. LIQMAX III RGB is available with a compact 120mm radiator with 260W TDP cooling capacity and a 240mm radiator with 330W TDP cooling capacity.

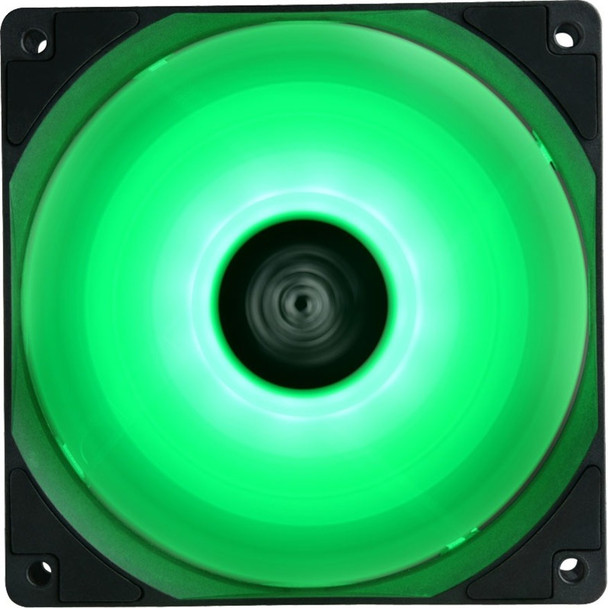

Dual-Convex Blade RGB Fan
The Dual-convex fan blade is a result of precision engineering calculating the shape and angles.
The fan creates downforce air pressure and high-volume airflow.
The frame is equipped with rubber pads to reduce vibration and noise.
RGB LEDs at the fan hub provide bright illumination.
Compatibility
Quick & user-friendly universal mounting system supporting Intel® and AMD® sockets (excluding TR4/SP3 socket). The pressure adjustment spring system and high conductive Dow-Corning® thermal grease ensure perfect contact with the CPUs heat spreader.
LIQMAX III RGB is compatible with 120mm fan mountings. Please ensure your case offers enough space to install the radiator.
Package Contents:
- ELC-LMT240-RGB Cooling Fan/Radiator/Water Block/Pump
- 2 x 12 cm Dual-Convex RGB PWM Fan
- Universal Mounting Kit For Intel And AMD Sockets
- Dow-Corning Thermal Grease (TC-5121)
- PWM Fan Y-cable
- RGB Sync Cable
- SATA to 4 Pin PWM Power Cable
- Installation Guide
Features
- ELC-LMT240-RGB Cooling Fan/Radiator/Water Block/Pump
- 2 x 12 cm Dual-Convex RGB PWM Fan
- Universal Mounting Kit For Intel And AMD Sockets
- Dow-Corning Thermal Grease (TC-5121)
- PWM Fan Y-cable
- RGB Sync Cable
- SATA to 4 Pin PWM Power Cable
- Installation Guide
Application/Usage:
Processor
Motherboard
Country of Origin:
China
Specs
| Physical Characteristics | |
| Weight (Approximate) | 1.75 lb |
| Radiator Material | Aluminum |
| Radiator Depth | 10.79" |
| Radiator Width | 4.72" |
| Fan Depth | 4.72" |
| Depth | 10.8" |
| Material Details | <li>Copper Plate</li><li>Ceramic Bearing Pump</li><li>Rubber Pad</li><li>Rubber Tubing</li> |
| Product Material | Copper |
| Fan Diameter Details | <p>2 x 120mm</p> |
| Maximum Fan Diameter | 4.72" |
| Fan Width | 4.72" |
| Height | 2.1" |
| Fan Height | 0.98" |
| Width | 4.7" |
| Radiator Height | 1.06" |
| Warranty | |
| Limited Warranty | 2 Year |
| Interfaces/Ports | |
| Connectors |
|
| Fan Information | |
| Fan Life | 5.7 Year |
| Number of Fans | 2 |
| LED Color | RGB |
| Maximum Airflow | 72.10 CFM |
| Fan Speed (Max) | 1600 rpm |
| Noise Levels (A-Weighted) | 27 dB(A) |
| General Information | |
| Brand Name | Enermax |
| Manufacturer Website Address | http://www.enermax.com |
| Marketing Information | The LIQMAX III RGB All-in-One CPU liquid cooler with RGB lighting. The water block with the acrylic look is equipped with the Aurabelt™ design, which provides brilliant lighting effects. LIQMAX III RGB supports RGB synchronization with motherboards that have 4-pin RGB connectors (+12V/G/R/B). Thanks to ENERMAX's patented Dual-Chamber Design, Central Coolant Inlet (CCI) and Shunt-Channel Technology (SCT) the cooler achieves faster heat transfer and extended lifetime. The RGB fans with dual-convex blades are optimized for radiators and generate high static pressure to drive heat out of the cooling fins. The LIQMAX III RGB is an excellent cooler for gaming cases that do not want to miss RGB lighting. Design The LIQMAX III RGB is an All-in-One CPU liquid cooler with pre-filled coolant. This makes a water cooler as simple as a regular air cooler. Easy installation and no maintenance. The fully sealed design ensures the lowest evaporation of liquid and a long product lifetime. Dual-Chamber Water Block The patented Dual-Chamber Design isolates the pump from the heated coolant, extending the life of the cooler. The cold coolant enters the first chamber with the pump inside and is then forced through the cold plate absorbing heat. The heated coolant is collected in the second chamber and then transported to the radiator for cooling. Central Coolant Inlet (CCI) Design The Central Coolant Inlet (CCI) injects coolant in the middle area above the CPU and distributes it evenly across the cold plate using the patented Shunt Channel Technology (SCT). The result is a shorter coolant flow path and faster heat transfer. Aurabelt™ Water Block The Aurabelt™ water block of LIQMAX III RGB is equipped with RGB LEDs designed for synchronization with RGB motherboards from ASRock, ASUS, Gigabyte and MSI. LIQMAX III RGB offers programmable lighting effects via motherboards software. For stand-alone operation, the lighting of the water block is kept white. Tubes The premium woven tubings are made of flexible and long-lasting polyamide rubber with multiple layers ensuring zero permeability and long-lasting operation. The tubes offer an easy system installation thanks to a length of 400mm. For maximum safety, the connections to the fittings are sealed with extra strong glue. Radiator The radiator offers a large cooling surface with high heat exchange capacity thanks to the fine channels and thin aluminium fins. LIQMAX III RGB is available with a compact 120mm radiator with 260W TDP cooling capacity and a 240mm radiator with 330W TDP cooling capacity. Dual-Convex Blade RGB Fan The Dual-convex fan blade is a result of precision engineering calculating the shape and angles. The fan creates downforce air pressure and high-volume airflow. The frame is equipped with rubber pads to reduce vibration and noise. RGB LEDs at the fan hub provide bright illumination. Compatibility Quick & user-friendly universal mounting system supporting Intel® and AMD® sockets (excluding TR4/SP3 socket). The pressure adjustment spring system and high conductive Dow-Corning® thermal grease ensure perfect contact with the CPUs heat spreader. LIQMAX III RGB is compatible with 120mm fan mountings. Please ensure your case offers enough space to install the radiator. |
| Product Type | Cooling Fan/Radiator/Water Block/Pump |
| Product Name | ELC-LMT240-RGB Cooling Fan/Radiator/Water Block/Pump |
| Manufacturer | Enermax Technology Corporation |
| Manufacturer Part Number | ELC-LMT240-RGB |
| Product Model | ELC-LMT240-RGB |
| Product Line | LIQMAX III 240 RGB |
| Packaged Quantity | 6 |
| Heatsink Information | |
| Cooler Type | Liquid Cooler |
| Compatible Intel Socket |
|
| Compatible AMD Socket |
|
