EnGenius EnStation5-AC IEEE 802.11ac 867 Mbit/s Wireless Access Point (ENSTATION5ACKIT)

This item is brand-new, factory sealed.

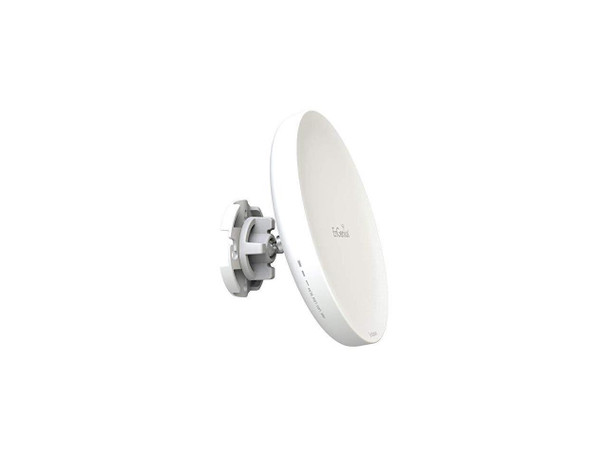

Long-Range Outdoor Wireless 5 GHz 11ac Wave 2 PtP Bridge Kit



High Bandwidth Over Extended Distances With Reduced Interference for Optimal Connectivity


This kit includes two (2) EnStation5-AC Wireless Outdoor Bridges


EnGenius EnJet EnStation5-AC 5 GHz Outdoor 802.11ac Wave 2 Wireless Client Bridge/AP, featuring Time Division Multiple Access, cuts through RF-congested environments within Point-to-Point/MultiPoint applications. EnJet enabled the EnStation5-AC assigns time slots to each station, providing faster and more stable performance and avoiding the hidden node issue. With a high-gain 19 dBi dual-polarized directional antenna that extends the network up to 5 miles point-to-point.



EnJet technology features Time Division Multiple Access, cutting through RF-congested environments

11ac Wave 2 wireless speeds up to 867 Mbps on 5 GHz

MU-MIMO improves performance & increases user device capacities

Beamforming optimizes antenna signal, reception & reliability for device

High 26 dBm transmit power and high Gain 19 dBi Directional Antennas

IP55-Rated weatherproof & dustproof housing

GigE PoE port & adapter included for placement where power is limited Standards
IEEE 802.11ac wave2/a/n on 5 GHz Processor
Powerful Qualcomm CPU Antenna
High-Gain 19 dBi Integrated Directional Antennas 5 GHz (Port 1)
Average Antenna Gain: 19 dBi
Polarization: Linear
Azimuth Beam Width: 30^o
Elevation Beam-Width: 18^o
VSWR: 1:2.0 5 GHz (Port 2)
Average Antenna Gain: 19 dBi
Polarization: Linear
Azimuth Beam Width: 18^o
Elevation Beam-Width: 30^o
VSWR: 1:2.0 Physical Interface

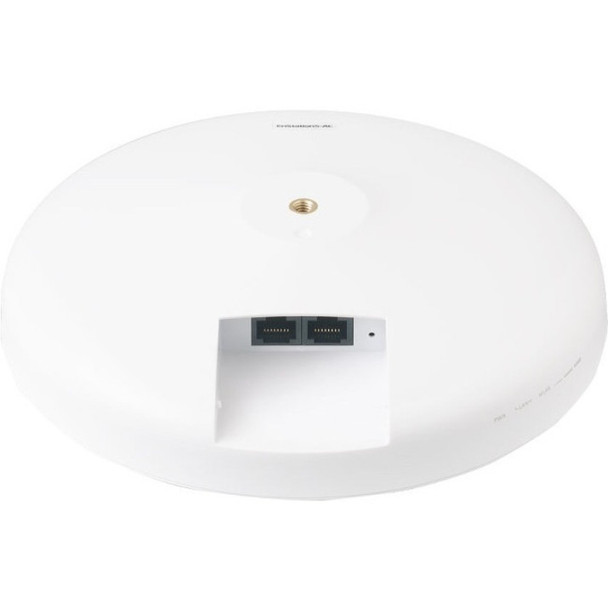

2 x 10/100/1000 Base-TX, RJ-45 Gigabit Ethernet Ports
1 x Reset Button LED Indicators
Power
LAN1
LAN2
WLAN
Signal Power Source
Power-over-Ethernet: Proprietary 24V PoE Maximum Power Consumption
9W Surge Protection
Line to Line: 1 KV
Line to Ground: 2 KV ESD Protection
Contact: 4 KV
Air: 8 KV Operating Frequency
5 GHz Operation Modes
EnJet Enabled:
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Station EnJet Disabled:
Access Point Mode (AP mode)
Client Bridge Mode (CB Mode)
WDS: WDS AP, WDS Bridge, WDS Station Frequency Radio
5 GHz: 5180 MHz, 5200 MHz, 5220 MHz, 5240 MHz, 5260 MHz, 5280 MHz, 5300 MHz, 5320 MHz, 5500 MHz, 5520 MHz, 5540 MHz, 5560 MHz, 5580 MHz, 5600 MHz, 5620 MHz, 5640 MHz, 5640 MHz, 5680 MHz, 5745 MHz, 5765 MHz, 5785 MHz, 5805 MHz Support radios and channels will be varied on the configured regulatory domain Transmit Power
Up to 26 dBm on 5 GHz Tx Beamforming (TxBF) Radio Chains/Spatial Stream
2x2:2 SU-MIMO
Two (2) Spatial Stream SU-MIMO up to 867 Mbps to a single client

Package Contents:

• 5 GHz 11ac Wave 2 Long-Range PtP Outdoor Access Point/Wireless Bridge
• 1 x PoE Adapter (EPA2406GP)

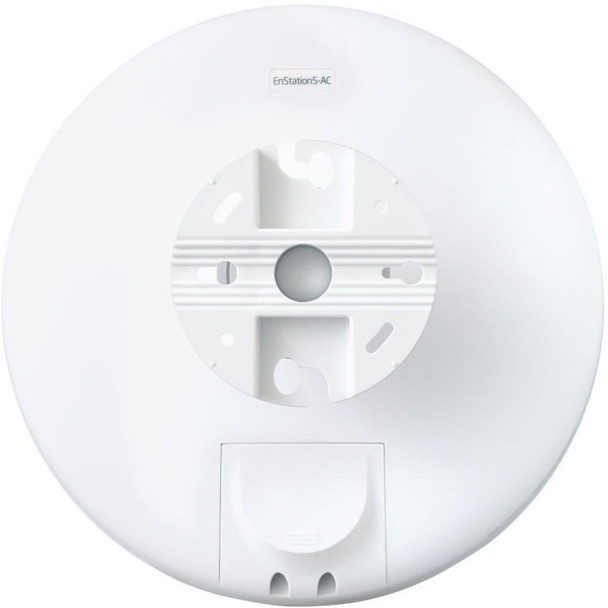

• 2 x Pole-Mounting Brackets
• 1 x Wall-Mount Screw Set
• 1 x Power Cord
• 1 x Quick Installation Guide
