EnGenius Fit EWS356-FIT Dual Band EWS356FIT

This item is brand-new, factory sealed.

Product Highlights

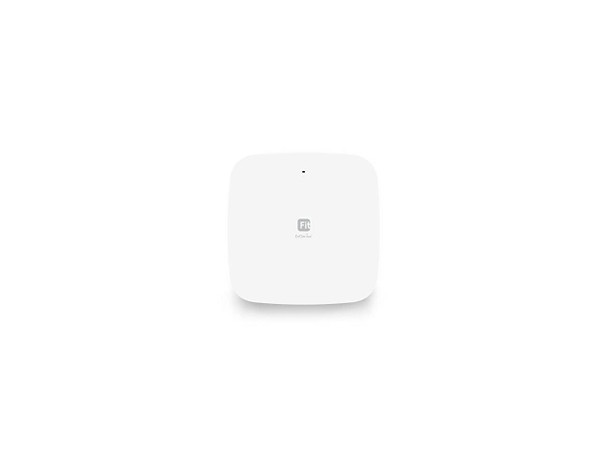

The EnGenius Fit Managed EWS356-FIT Wi-Fi 6 2x2 indoor wireless access point is a business-class device that provides secure and reliable high performance while reducing capital and operating expenses for cost-conscious small businesses. With support for the latest 802.11ax technology, this access point can deliver maximum speeds of 574 Mbps (2.4 GHz) and 2,400 Mbps (5 GHz). Additionally, it features an easy-to-use web interface for cloud or on-premises management options based on network architecture and technical aptitude.

Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna

Supports up to 2,400 Mbps in 5-GHz frequency band & 574 Mbps in 2.4-GHz frequency band

Select cloud or on-premises management options based on network architecture, administrative permissions

From anywhere cloud visibility and control

Setup in minutes with app-based step by step instructions

Quick-scan device register, remote monitoring, and troubleshooting

Real-time system metrics, analytics, and remote configurations

No access point licensing or subscription fees

Uplink and downlink of OFDMA improves transmission to APs and client devices

Target wake time for power-saving of client & IoT devices

Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices

BSS coloring for tagging packets with a color to differentiate between adjacent basic service setsTechnical Specifications
Standards
802.11a/b/g/n/ac/ax
Antenna - 2.4GHz
4dBi
Antenna - 5GHz
5dBi
Physical Interfaces
1 x 10/100/1000 BASE-T
DC12V
Reset/Reboot button
LED indicators
1 x Multi-color LED
Power Source
PoE 802.3af
DC12V
Maximum Power Consumption
10.7WWireless and Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4 GHz and 5 GHz
Operation Modes
Managed mode: AP, AP Mesh, Mesh
Frequency Radio
2.4 GHz: 2400 MHz - 2482 MHz
5 GHz: 5150 MHz - 5250 MHz, 5250 MHz - 5350 MHz, 5470 MHz - 5725 MHz,
5725 MHz - 5850 MHz
Transmit Power
Up to 21 dBm on 2.4 GHz
Up to 21 dBm on 5 GHz
(Maximum power is limited by regulatory domain)
Radio Chains
2 x 2:2
SU-MIMO
Two (2) spatial stream Single User (SU) MIMO for up to 574 Mbps wireless data rate with HE40 bandwidth to a 2x2 wireless client device under the 2.4GHz radio.
Two (2) spatial stream Single User (SU) MIMO for up to 2,400 Mbps wireless data rate with HE160 to a 2x2 wireless device under the 5GHz radio.
MU-MIMO
Two (2) spatial streams Multiple (MU)-MIMO up to 2,400 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously.
Two (2) spatial streams Multiple (MU)-MIMO up to 574 Mbps wireless data rate for transmitting to two (2) streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously
Supported Data Rates
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS 1 to 2)
5 GHz: 18 to 2400 (MCS0 to MSC11, NSS 1 to 4)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS 1 to 2)
Supported Radio Technology
802.11ax: Orthogonal Frequency Division Multiple Access(OFDMA)
802.11a/g/n/ac: Orthogonal Frequency Division Multiple (OFDM)
802.11b: Direct-sequence spread-spectrum (DSSS)Channelization
802.11ax supports high efficiency throughput (HE) -HE 20/40/80/160 MHz
802.11ac supports very high throughput (VHT) -VHT 20/40/80 MHz
802.11n supports high throughput (HT) -HT 20/40 MHz
802.11n supports high throughput under the 2.4GHz radio -HT40 MHz (256-QAM)
802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Max Concurrent User
128 per radioEnvironmental and Physical
Operating Temperature
32^oF-104^oF (0 ^oC-40 ^oC)
Storage Temperature
-40 ^oF-176 ^oF (-40 ^oC-80 ^oC)
Storage Humidity
Storage: 90% or lessPackage Contents
1 EWS356-FIT Indoor Access Point
1 - Ceiling Mount Base (9/16 Trail)
1 - Ceiling Mount Base (15/16 Trail)
1 - Ceiling and Wall Mount Screw Kit
1 - Quick Installation GuideCompliance
Safety Compliance
CB
WEEE
Yes
RoHS
Yes
Regulatory Compliance
FCC
CE
IC
UKCAItem Dimension (L"xW"xH")
11 x 7 x 2

Weight
2 lbs

Warranty Information
1 Year
