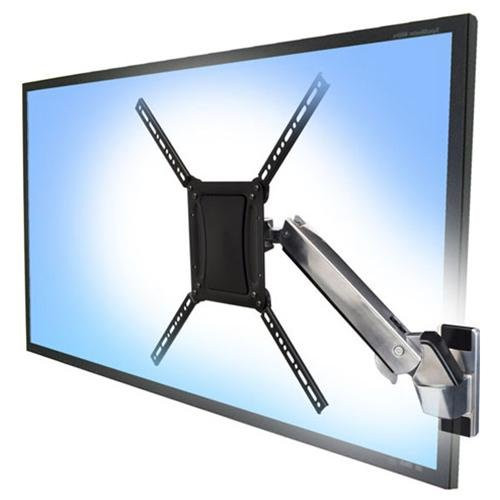

Ergotron Mounting Arm for Flat Panel Display - 30" to 55" Screen Support - 40.00 lb Load Capacity - Polished Aluminum, Black 45296026
(No reviews yet)
Write a Review
- SKU:
- 18133994
- MPN:
- 45-296-026
- Availability:
- Usually ships the same or next business day. In stock at our CA, PA warehouses.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 10/17/2026 03:50:27 AM PST
- Stock Update:
- 10/17/2026 03:50:27 AM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
Accommodate the active TV positioning needs of today and tomorrow. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 17.5-inch (45 cm) motion adjustment to either side.
Now anyone can effortlessly move their TV into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks.
Package Contents:
- HD Interactive Arm
- Wall Mount Bracket
- VESA Adapter Brackets
- Complete Hardware Kit
Features
Package Contents:
- Arm
- Wall Mount Bracket
- VESA Adapter Brackets
- Complete Hardware Kit
Certifications & Standards:
BIFMA Level 2 Certified
Additional Information:
- Lift: 20"
- Tilt: 25°
- Pan: 180°
- Rotation: 10°
- Patented Constant Force technology enables light-touch adjustments
- Extends 24" from wall when in use and can be fully retracted to 5.5" when not in use
- Provides smooth, continuous vertical and horizontal movement of the TV/display in all directions
- Gravity pivot enables tilting capabilities without the need of knobs or levers
- Improves ergonomic viewing for TVs/displays mounted high on the wall
- Tilt and pan for maximum viewing flexibility
- Level the screen at any position with +/- 5º of post-installation rotation
- Cable management clips on the underside of the arm route and hide wires
- Easy to use: simple installation and effortless operation
Application/Usage:
Wall
Gaming
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
Specs
| Physical Characteristics | |
| VESA Mount Compatible | Yes |
| Form Factor | Wall Mountable |
| Weight (Approximate) | 18.50 lb |
| Product Color | Polished Aluminum |
| Color Family | Gray |
| Mounting Pattern |
|
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Brand Name | Ergotron |
| Manufacturer Website Address | http://www.ergotron.com |
| Marketing Information | Accommodate active TV positioning. Lift, swing or turn your display in any direction! Features 20 inches (51 cm) of vertical adjustment and 180° motion to either side. Now anyone can effortlessly move a TV or heavy monitor into multiple positions with only a light touch. Your screen will seemingly float on air, being easily adjusted between standing and seated heights. No more awkward viewing angles and sore necks. |
| Product Type | Mounting Arm |
| Product Name | Interactive Arm, HD |
| Manufacturer | Ergotron, Inc |
| Manufacturer Part Number | 45-296-026 |
| Product Line | Interactive |
| Product Information | |
| Minimum Tilt Angle | -10° |
| Height Adjustable | Yes |
| Minimum Rotate Angle | -5° |
| Mount Function |
|
| Mount Surface | Wall |
| Maximum Pan Angle | 180° |
| Device Supported |
|
| Maximum Rotate Angle | 5° |
| Minimum Load Capacity | 18 lb |
| Maximum Screen Size Supported | 65" |
| Maximum Tilt Angle | 15° |
| Maximum Load Capacity | 40 lb |
| Features |
|
| Minimum Screen Size Supported | 30" |
