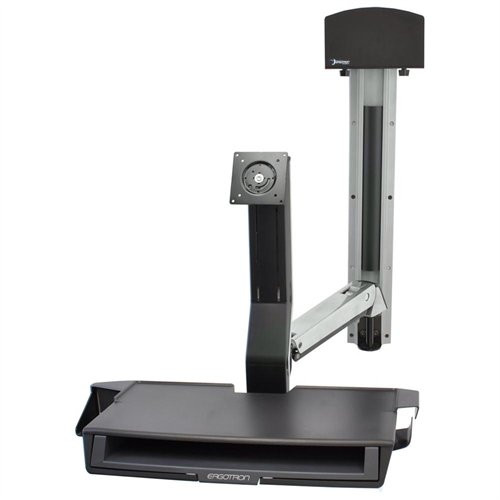

Ergotron StyleView Multi Component Mount for CPU, Flat Panel Display, Mouse, Keyboard - 24" Screen Support - 32.00 lb Load Capacity - Aluminum, Plastic 45272026
(No reviews yet)
Write a Review
- SKU:
- 21486630
- MPN:
- 45-272-026
- Availability:
- Usually ships in 2-3 business days. In stock at our CA, IL, PA, SC warehouses.
- Shipping:
- $263.16 (Fixed Shipping Cost)
- Stock Update:
- 04/28/2026 03:54:25 AM PST
- Stock Update:
- 04/28/2026 03:54:25 AM PST
Description
This item is brand-new, factory sealed.
This complete system provides easy re-positioning of your entire workstation-move your display, keyboard, mouse and barcode scanner in a single motion!
Durable polished aluminum construction! Also features a worksurface with pull-out keyboard tray, which facilitates caregiver work flow. Work sitting or standing with the arm's ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.
Features
Package Contents:
LCD Screen
China
- HD Combo Arm
- 34" Wall Track with (2) Black Track Cover
- Small Black CPU Holder
- CPU Spacer
- 2 x 10" Cable Channel
- CPU and Arm Track Mount Bracket Kit
- Wall Track Fasteners for Concrete and Wood
- CPU Direct Wall Mount Kit
- Height Adjustable LCD Mount
- Wrist Rest
- Scanner and Mouse Holder
- Integrated Keyboard Tray with left/right Mouse Tray
- Handle
- VESA Monitor Mounting Kit
- Cable Tie
- Mounting Hardware
Certifications & Standards:
VESA:
- FDMI
- MIS-D
- C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Additional Information:
- Support work flow needs with sturdy worksurface: 22.75"W x 10.6"D
- Weight Capacity - Display = 6-18 lbs
- Weight Capacity - Worksurface = 10 lbs
- Weight Capacity - Keyboard, mouse and barcode scanner = 4 lbs
- Easy-to-clean features promote superior infection control
- Barcode scanner holder provides easy access to hand-held scanner
- Extend LCD and keyboard up to 43" from wall
- Clean, concealed and neat routing of cables through the expansive cable management system
- LCD and keyboard adjusts 20" in tandem with single-motion
- LCD adjusts 5" independently
- Maximum LCD height adjustment = 25"
- Monitor up/down tilt = +25°/-5°
Compatibility:
LCD Screen
Country of Origin:
China
Specs
| Physical Characteristics | |
| Product Material |
|
| VESA Mount Compatible | Yes |
| Mounting Pattern |
|
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Brand Name | Ergotron |
| Manufacturer Website Address | http://www.ergotron.com |
| Marketing Information | This complete system provides easy re-positioning of your entire workstation-move your display, keyboard, mouse and barcode scanner in a single motion! Durable polished aluminum construction! Also features a worksurface with pull-out keyboard tray, which facilitates caregiver work flow. Work sitting or standing with the arm's ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy. |
| Product Type | Multi Component Mount |
| Product Name | StyleView Sit-Stand Combo System with Worksurface |
| Manufacturer | Ergotron, Inc |
| Manufacturer Part Number | 45-272-026 |
| Product Line | StyleView |
| Product Information | |
| Maximum Screen Size Supported | 24" |
| Maximum Load Capacity | 32 lb |
| Features |
|
| Device Supported |
|
