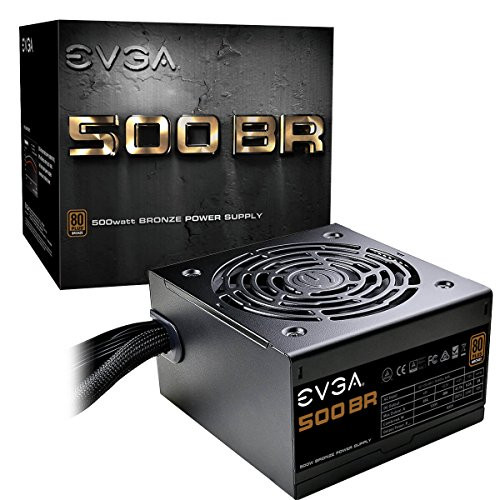

EVGA BR Power Supply (100BR0500K1)

This item is brand-new, factory sealed.

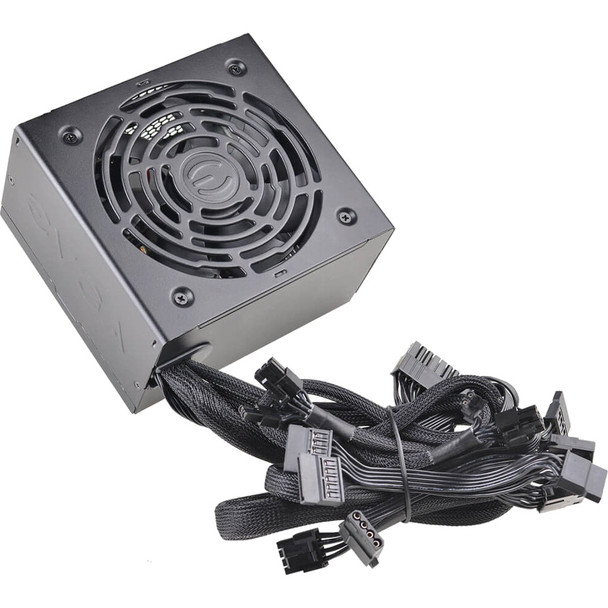

Introducing the EVGA BR Series of power supplies. Building upon our already great line of Bronze rated power supplies, we sought to make the improvements our customers asked for. Our BR Series are 80 PLUS Bronze certified, with 85% efficiency or higher under typical loads. Features a non-modular design with all black full sleeved cables for that high end aesthetic, 120mm sleeve bearing quiet fan, increased 3.3V/5V voltage stability. CABLE LENGTH
ATX CABLE
1x 550mm
EPS CABLE
1x 600mm
PCIE CABLE
1x 550mm, 670mm
SATA CABLE
2x 450mm, 570mm, 690mm FOUR-PIN PERIPHERAL CABLE
1x 450mm, 570mm, 690mm + 810mm (Floppy)
FLOPPY ADAPTER
1x AC POWER
1x 1200mm (m) MODULAR CABLE TYPE
No CONNECTOR QUANTITY
24 PIN ATX
1x
EPS (CPU)
1x 8pin (4+4)
PCIE
2x 8pin (6+2)
SATA
6x
FOUR-PIN PERIPHERAL
3x
FLOPPY
1x POWER SPECS
AC Input

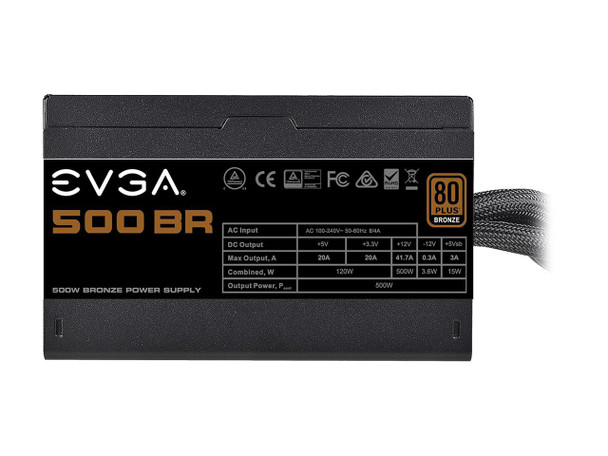

100 - 240 VAC, 8/4A, 50 - 60 HzRail: +3.3V/Max Output: 20A/120W
Rail: +5V/Max Output: 20A/120W
Rail: +12V/Max Output: 41.7A/ 500W/ 500W
Rail: +5Vsb/Max Output: 3A/ 15W
Rail: -12V/Max Output: 0.3A/ 3.6W Total
500W at +30C OPERATING TEMPERATURE
0^o to 30^o C JAPANESE CAPACITORS
No ECO MODE
No MTBF
100,000 Hours APPROVALS
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 6 2013 Requirement FAN SIZE / BEARING
120mm Long Sleeve BearingItem Dimension (L inchxW inchxH inch)
8 x 7 x 7

Weight
4.00lb

Warranty Information
3 Years
