Evga
EVGA SuperNOVA 750 P5 750W Power Supply (220-p5-0750-x1)
(No reviews yet)
Write a Review
- SKU:
- 18489855
- MPN:
- 220-p5-0750-x1
- Availability:
- Out of stock
- Stock Update:
- 12/09/2025 10:12:34 AM PST
- Stock Update:
- 12/09/2025 10:12:34 AM PST
Description
This item is brand-new, factory sealed.
The EVGA SuperNOVA P5 joins the elite ranks of the EVGA 80 PLUS Platinum power supplies. These power supplies continue to push the envelope with the latest certifications and Intel power-on standards. Replete with 80 PLUS Platinum-rated efficiency, a fully-modular cable design, 100% Japanese capacitors, and an ultra-quiet 135mm Fluid Dynamic bearing fan with EVGA ECO mode, these power supplies are built for performance and silence.FEATURES
80 PLUS Platinum certified, with 92% (115VAC) / 94% (220VAC~240VAC) efficiency or higher under typical loads
100% Japanese Capacitors ensure long-term reliability
Fully Modular to reduce clutter and improve airflow
Fluid Dynamic Bearing Fan for ultra-quiet operation and increased lifespan.
Unbeatable EVGA 10 Year Warranty and unparalleled EVGA Customer Support
Active Clamp +DC to DC design for efficient operation
DC-DC Converter improves 3.3V/5V stability
Active Power Factor Correction
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
NVIDIA SLI & AMD Crossfire Ready
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) CABLE LENGTH
ATX Cable
1x 600mm (m) EPS Cable
2x 700mm (m) PCIe Cable
2x 700mm, 2x 700mm, 850mm (m) SATA Cable
3x 550mm, 650mm, 750mm (m) Four-Pin Peripheral Cable
1x 550mm, 650mm, 750mm, 850mm (m) Floppy Adapter
1x 100mm AC Power
1x 1500mm (m) Modular Cable Type
Full CONNECTOR QUANTITY
24 Pin ATX
1x 24pin EPS (CPU)
2x 8pin (4+4) PCIe
6x 8pin (6+2) SATA
9x Four-Pin Peripheral
4x Floppy
1x POWER SPECS
AC Input
100-240V, 10-5A, 60/50 Hz
Rail / Max Output
+3.3V / 24A / 120W
+5V / 24A / 120W
+12V / 62.5A / 750W
+5Vsb / 3A / 15W
-12V / 0.5A / 6W
Total
750W ADDITIONAL DETAILS
Operating Temperature
0o to 50o C Japanese Capacitors
100% ECO Mode
Yes MTBF
100,000 Hours Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, RoHS
Compliance with ErP Lot 3 2014 Requirement
Features
Environmentally Friendly:
Yes
Energy-related Products Directive Lot 3 (ErP Lot 3)
80 Plus Platinum
Taiwan
Yes
Energy Efficiency Compliance:
Energy-related Products Directive Lot 3 (ErP Lot 3)
Energy Efficiency Certification:
80 Plus Platinum
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Specs
| Power Description | |
| Number of +12V Rails | 1 |
| Output Power | 750 W |
| Output Current |
|
| Input Voltage |
|
| Output Voltage Detail |
|
| Output Voltage |
|
| Physical Characteristics | |
| Form Factor | Internal |

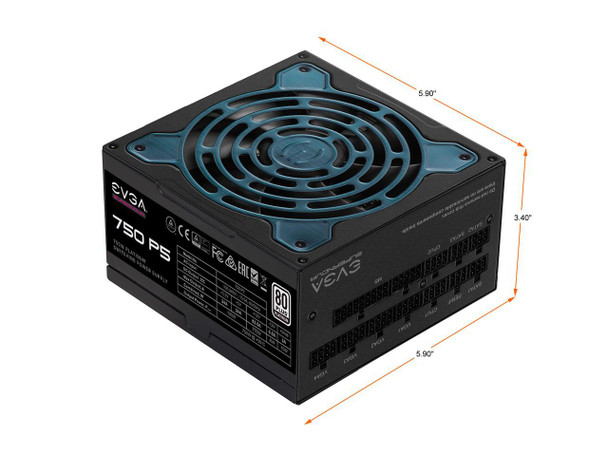

| Height | 3.4" |
| Width | 5.9" |
| Depth | 5.9" |
| Warranty | |
| Limited Warranty | 10 Year |
| General Information | |
| Brand Name | EVGA |
| Manufacturer Website Address | http://www.evga.com |
| Marketing Information | Time To Buy Platinum The EVGA SuperNOVA P5 joins the elite ranks of the EVGA 80 PLUS Platinum power supplies. These power supplies continue to push the envelope with the latest certifications and Intel® power-on standards. Replete with 80 PLUS Platinum-rated efficiency, a fully-modular cable design, 100% Japanese capacitors, and an ultra-quiet 135mm Fluid Dynamic bearing fan with EVGA ECO mode, these power supplies are built for performance and silence. PLATINUM RATED | EFFICIENCY 80 PLUS Certification ensures your power supply isn't wasting power and turning it into excess heat. Under typical load, this power supply is 92% efficient or higher. ACTIVE CLAMP DESIGN | LOW RIPPLE AND NOISE The P5 power supplies also feature an active clamp circuit design, DC-to-DC converter, and active PFC to provide tight voltage regulation and low ripple and noise. |
| Product Type | Power Supply |
| Product Name | SuperNOVA 750 P5 750W Power Supply |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 220P50750X1 |
| Product Model | 750 P5 |
| Product Line | SuperNOVA |
| Technical Information | |
| ATI CrossFire Supported | Yes |
| Specification Compliance | ATX12V/EPS12V |
| NVIDIA SLI Supported | Yes |
| Efficiency | 94% |
| Number of Fans | 1 |
| Modular | Yes |
