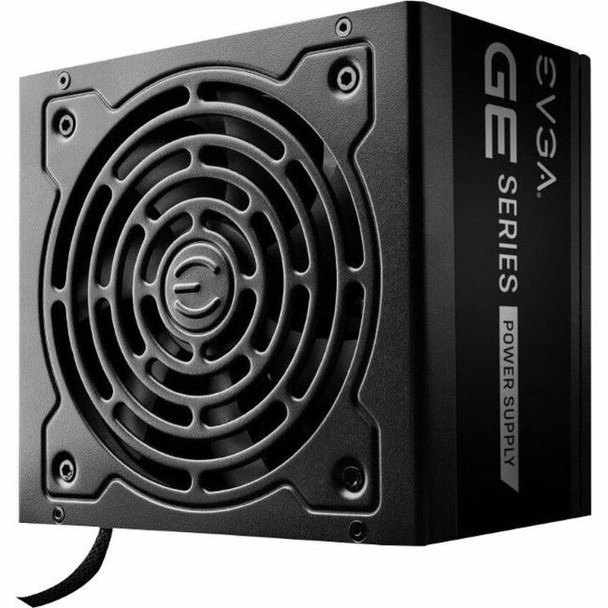

Evga 273022 Ps 200-ge-0800-v1 800 Ge 800w 80+gold Atx Eco Mode Retail
(No reviews yet)
Write a Review
- SKU:
- 20059251
- MPN:
- 273022
- Availability:
- Out of stock
- Stock Update:
- 03/01/2024 02:02:23 PM PST
- Stock Update:
- 03/01/2024 02:02:23 PM PST
Description
This item is brand-new, factory sealed.
The EVGA GE Series brings EVGA ECO Mode to hardline power supplies for the first time. In addition to 80 PLUS Gold efficiency, GE power supplies have low ripple and noise, low power consumption, and tight voltage regulation for unwavering stability and to keep performance-critical components functioning reliably. With EVGA ECO Mode to maintain complete silence at low to medium loads, the EVGA GE Series allows you to enjoy your PC in peace and quiet.FEATURES
5 Year Warranty and unparalleled EVGA Customer Support
80 PLUS Gold certified, with 90% (115VAC) / 92% (220VAC-240VAC) efficiency or higher under typical loads
Active Power Factor Correction
DC-DC Converter improves 3.3V/5V stability
EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads
Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection)
Highest-quality Japanese main capacitor ensures long-term reliability
Quiet and Intelligent Auto Fan for near-silent operationCABLE LENGTH
ATX Cable
1x 550mm
EPS Cable
2x 600mm
PCIe Cable
2x 550mm, 700mm
SATA Cable
2x 550mm, 650mm, 750mm, 850mm
Peripheral Cable
1x 550mm, 650mm, 750mm, 850mm(f)
AC Power
1x 1500mm
Modular Cable Type
NoCONNECTOR QUANTITY
24 Pin ATX
1x
EPS (CPU)
2x 8pin(4+4)
PCIe
4x 8pin(6+2)
SATA
8x
Peripheral
3x
Floppy
1xPOWER SPECS
AC Input
100-240V, 10-5A, 60/50 Hz
Rail
+3.3V / +5V / +12V / +5Vsb / -12V
Max Output
22A / 22A / 66.7A / 3A / 0.3A
120W / 120W / 800W / 15W / 3.6W
Total
800WADDITIONAL DETAILS
Operating Temperature
0o to 40o C
Japanese Capacitors
Main
ECO Mode
Yes
MTBF
100,000 Hours
Approvals
TUV, CB, CE, FCC, RCM, cTUVus, WEEE, UKCA, RoHS
Compliance with ErP Lot 3 2014 Requirement
Fan Size / Bearing
120mm Sleeve BearingItem Dimension (L"xW"xH")
11 x 8 x 4
Weight
4.37 lbs
Warranty Information
5 year
Features
Environmentally Friendly:
Yes
Energy-related Products Directive Lot 3 (ErP Lot 3)
80 Plus Gold
Yes
Energy Efficiency Compliance:
Energy-related Products Directive Lot 3 (ErP Lot 3)
Energy Efficiency Certification:
80 Plus Gold
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Restriction of Hazardous Substances (RoHS)
Specs
| Power Description | |
| Number of +12V Rails | 1 |
| Output Power | 800 W |
| Output Current |
|
| Output Voltage Detail |
|
| Output Voltage |
|
| Physical Characteristics | |
| Form Factor | Internal |
| Weight (Approximate) | 5.20 lb |
| Height | 3.4" |
| Width | 5.9" |
| Warranty | |
| Limited Warranty | 5 Year |
| General Information | |
| Brand Name | EVGA |
| Manufacturer Website Address | http://www.evga.com |
| Marketing Information | The EVGA GE Series brings EVGA ECO Mode to hardline power supplies for the first time. In addition to 80 PLUS Gold efficiency, GE power supplies have low ripple and noise, low power consumption, and tight voltage regulation for unwavering stability and to keep performance-critical components functioning reliably. With EVGA ECO Mode to maintain complete silence at low to medium loads, the EVGA GE Series allows you to enjoy your PC in peace and quiet. |
| Product Type | Power Supply |
| Product Name | 800 GE 800W Power Supply |
| Manufacturer | EVGA Corporation |
| Manufacturer Part Number | 200GE0800V1 |
| Product Model | 800 GE |
| Product Series | GE |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Efficiency | 92% |
| Number of Fans | 1 |
| Modular | No |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
