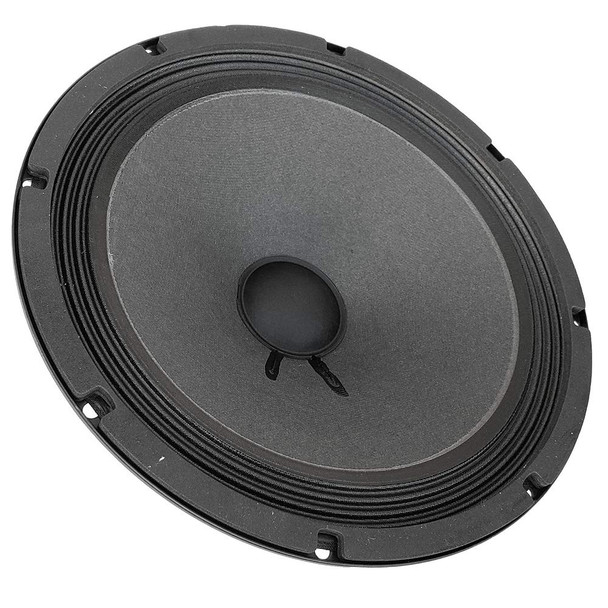

Faital Pro 10FE2004 10" 300W 4-Ohm Woofer

This item is brand-new, factory sealed.

* Nominal Diameter 250 mm (10 in)
* Overall Diameter 256.8 mm (10.11 in)
* Bolt Circle Diameter 243.8 mm (9.60 in)
* Baffle Cutout Diameter 233.8 mm (9.20 in)
* Depth 102 mm (4.02 in)
* Flange and Gasket Thickness 8 mm (0.31 in)
* Net Weight 2.2 kg (4.9 lb)
* Shipping Box: (Single Carton Box) 282 x 280 x 140 mm; (11.0 x 11.0 x 5.5 in)
* Shipping Weight 2.6 kg (5.7 lb) *
* Nominal Impedance 8 Ohm
* Minimum Impedance 6.2 Ohm
* AES Power Handling (1) 150 W
* Maximum Power Handling (2) 300 W
* Sensitivity (1W/1m) 96 dB
* Frequency Range 50hz-4500 Hz
* Voice Coil Diameter 37 mm (1.46 in)
* Winding Material Al
* Former Material Kapton
* Winding Depth 12 mm (0.47 in)
* Magnetic Gap Depth 8 mm (0.31 in)
* Flux Density 1 T
* Magnet Ferrite Ring
* Basket Material Steel
* Demodulation No
* Cone Surround (3) Accordion (4 waves)
* NET Air Volume filled by Loudspeaker 0.6 dm-3 (0.021 ft-3)
* Spider Profile 1x constant height waves
* THIELE AND SMALL PARAMETERS
* Fs 55 Hz
* Re 5.9 Ohm
* Qes 0.74
* Qms 11.3
* Qts 0.69
* Vas 61.7 dm-3 (2.18 ft-3)
* Sd 359.7 cm-2 (55.75 in-2)
* Xmax (4) 4.67 mm
* Xdamage (5) 10.4 mm
* Mms 24.5 g
* Bl 8.2 N/A
* Le 0.42 mH
* Mmd 16.8 g
* Cms 0.34 mm/N
* Rms 0.7 kg/s
* Eta Zero 1.34 %
* EBP 74 Hz *
* PART NUMBER (P/N): Faston Terminals - 8 Ohm Version 02504022 NOTES:
* (1) 2 Hours Test According to AES 2-1984 Rev. 2003
* (2) Maximum power is defined as 3dB greater than nominal power.
* (3) Treated Polycotton
* (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
* (5) Maximum excursion before permanent damage
