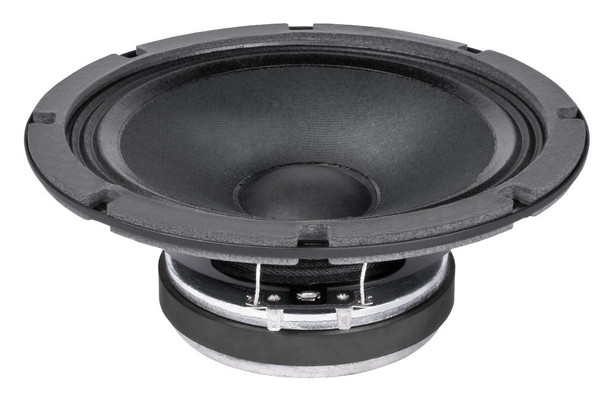

Faital Pro 8FE200-4 8-in High Power Triple Roll

This item is brand-new, factory sealed.

* Nominal Diameter 200 mm (8 in)
* Overall Diameter 209.2 mm (8.24 in)
* Bolt Circle Diameter 196.9 mm (7.75 in)
* Baffle Cutout Diameter 178 mm (7.01 in)
* Depth 89 mm (3.50 in)
* Flange and Gasket Thickness 8 mm (0.31 in)
* Net Weight 2.2 kg (4.7 lb)
* Shipping Box: (Single Carton Box) 227 x 224 x 113 mm; (8.9 x 8.8 x 4.4 in)
* Shipping Weight 3 kg (6.6 lb) *
* Nominal Impedance 4 Ohm
* Minimum Impedance 3.6 Ohm
* AES Power Handling (1) 130 W
* Maximum Power Handling (2) 260 W
* Sensitivity (1W/1m) 95 dB
* Frequency Range 60hz-5000 Hz
* Voice Coil Diameter 37 mm (1.46 in)
* Winding Material Al
* Former Material Kapton
* Winding Depth 11.9 mm (0.47 in)
* Magnetic Gap Depth 8 mm (0.31 in)
* Flux Density 1 T
* Magnet Ferrite Ring
* Basket Material Steel
* Cone Surround (3) Triple Roll
* NET Air Volume filled by Loudspeaker 0.6 dm-3 (0.021 ft-3)
* Spider Profile 1x constant height waves
* THIELE AND SMALL PARAMETERS
* Fs 80 Hz
* Re 3 Ohm
* Qes 0.47
* Qms 8.7
* Qts 0.45
* Vas 15.8 dm-3 (0.56 ft-3)
* Sd 209 cm-2 (32.44 in-2)
* Xmax (4) 4.62 mm
* Xdamage (5) 10.4 mm
* Mms 15.3 g
* Bl 7 N/A
* Le 0.25 mH
* Mmd 11.9 g
* Cms 0.26 mm/N
* Rms 0.9 kg/s
* Eta Zero 1.67 %
* EBP 170 Hz *
* PART NUMBER (P/N): Faston Terminals - 4 Ohm Version 02004056 NOTES:
* (1) 2 Hours Test According to AES 2-1984 Rev. 2003
* (2) Maximum power is defined as 3dB greater than nominal power.
* (3) Treated Polycotton
* (4) Xmax= [(winding depth - magnetic gap depth)/2] + (magnetic gap depth/3)
* (5) Maximum excursion before permanent damage
*
