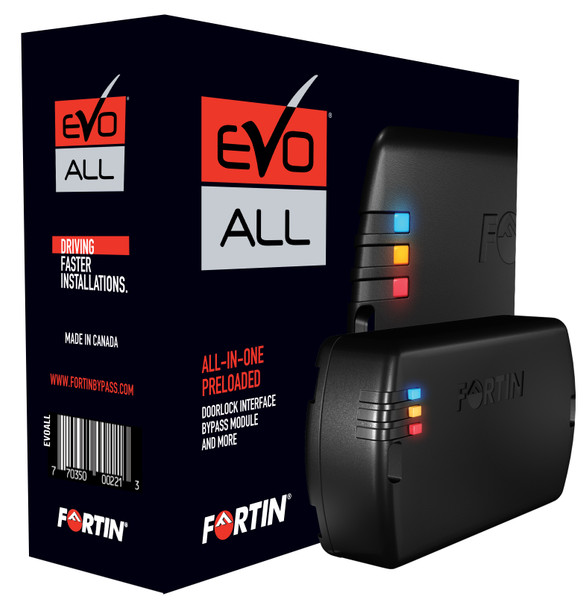

Fortin EVOALL Superior Universal All-in-one Immobilizer And Convenience Data Module. [single] EVOALL_6

(No reviews yet) Write a Review
Usually ships the same or next business day. In stock at our OK warehouse.
Calculated at Checkout
Stock Update:
05/26/2023 08:05:25 AM PST

Bulk discount rates

Below are the available bulk discount rates for each individual item when you purchase a certain amount

Buy 2 and pay only $45.67 each 45.67
Buy 3 and pay only $42.78 each 42.78
Buy 4 - 9 and pay only $41.73 each 41.73
Buy 10 - 28 and pay only $39.90 each 39.9
Buy 29 or above and pay only $38.56 each 38.56
Stock Update:
05/26/2023 08:05:25 AM PST


This item is brand-new, factory sealed.

The evo-all is an all-in-one data immobilizer bypass and doorlock interface combo module. It raises the standard of hassle-free installation convenience to a whole new level. It uses a multiple bus architecture with 10 separate communication ports that provide more complete functionality on every supported vehicle.

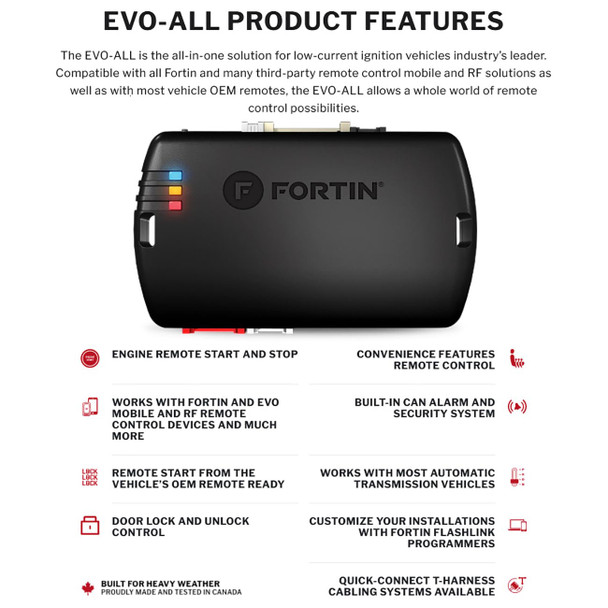

product features
3x on-board leds for simplified programming and diagnostics.
1x preloaded firmware for maximum compatibility. [1]
4-wire fortin 2-way datalink port for data-to-data (rs-232) communication with datalink equipped remote-starters and security-systems.[2]
20-wire general purpose plug for wire-to-wire connections with non-datalink equipped remote-starters and security-systems.
self-learning algorithm automatically detects the vehicle during programming and adjusts accordingly.

communication ports
3x can-bus controllers.
3x general purpose controllers (j1850, class 2, encrypted key etc.).
2x on-board relays (spdt).
1x analog controller 0-12vdc @ 20mv steps (passlock, mux).
1x tb control port for tb-series transponder modules. [3]

parts included
1x evo-all control module (firmware preloaded). [4]
1x 44-page installation and programming guide. [4]
1x 20-pin general purpose harness [5].
1x 4-pin fortin 2-way data-link harness. [2]
1x 5-pin can-bus harness.
1x 6-pin relay harness. [5]

[1] a firmware update may be required for the module to support vehicles produced after the date of manufacture.
[2] using the 2-way datalink port with an equipped remote-starter and security-system greatly simplifies installation. Click here to learn more.
[3] tb-series modules sold separately.
[4] update firmware and installation guides are posted on a regular basis. We recommend that you update this module to the latest firmware and download the latest installation guide(s) prior to the installation of this product.
[5] secure clip harness. [single]
