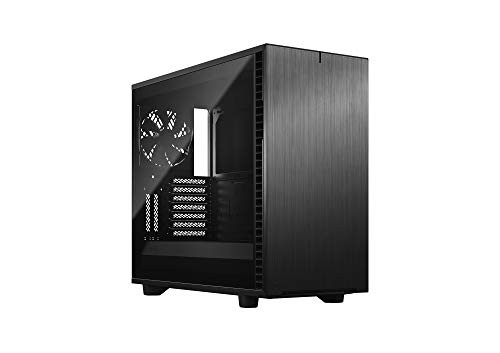

Fractal Design Case FD-C-DEF7A-03 Define7 Mid Tower E-ATX/ATX/MicroATX/Mini-ITX Black

(No reviews yet) Write a Review
SKU:
18058724
MPN:
241316_51
Availability:
Usually ships the same or next business day.
Shipping:
Calculated at Checkout
Stock Update:
02/01/2023 03:27:34 PM PST
  • Main
  • Top
  • Right
  • Rear
  • Life-Style
  • Left
  • Front
  • Alternate-Image3
  • Alternate-Image28
  • Alternate-Image24
  • Alternate-Image23
  • Alternate-Image22
  • Alternate-Image2
  • Alternate-Image19
  • Alternate-Image18
  • Alternate-Image17
  • Alternate-Image16
  • Alternate-Image15
  • Alternate-Image14
  • Alternate-Image13
  • Alternate-Image12
  • Alternate-Image11
  • Alternate-Image10
$205.80
Stock Update:
02/01/2023 03:27:34 PM PST

Description

This item is brand-new, factory sealed.

Define 7

The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use.

New chassis design opens up to fully expose the case interior

Anodized aluminum front panel with reversible dual-handed hinges

Multibracket converts unused fan positions to HDD, SSD or pump mounts


Open and interchangable

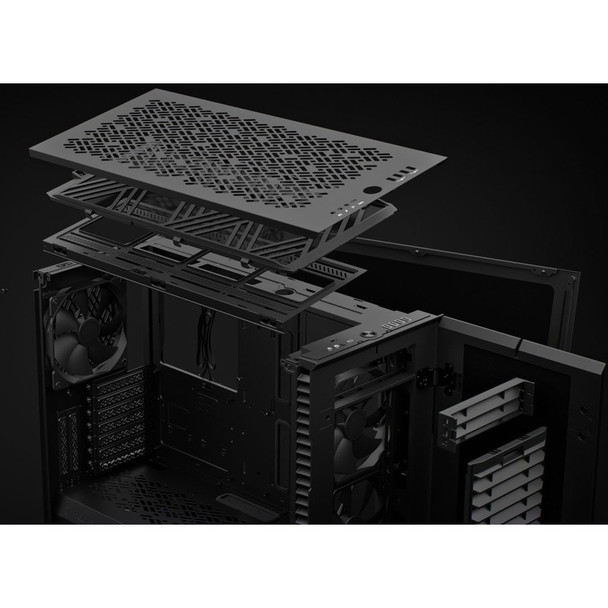

Swap in the ventilated panel to add three filtered fan positions;

remove the entire top to build and route with zero hindrance

Superior airflow by design

Three Dynamic X2 GP-14 fans come preinstalled with room to expand up to a total of nine fans.

Impressive cooling capacity with a total of nine 140 mm or 120 mm fan mounting positions

Easy-to-clean high airflow nylon filters with full PSU coverage and convenient front access

The single 5.25 ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering

Open layout for massive headroom

Youll find more than enough space for your custom water loop with large reservoirs and radiators up to 420 mm in the default Open Layout.

Adaptable dual-layout interior design fits large motherboards up to 285 mm E-ATX

Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base

Exceptionally silent

Silence-optimized construction with industrial sound-damped front, top, and side panels


Specifications
3.5"/2.5" Universal drive brackets
6 included, 14 positions total
Dedicated 2.5" drive brackets
2 trays included, 4 positions total
5.25" drive mounts
1
Expansion slots
7 + 2
Front ports
1 x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, 2 x USB 2.0, Audio I/O, Power button, Reset button
Total fan mounts
9 x 120/140 mm
Front fan
3 x 120/140 mm (2 x Dynamic X2 GP-14 included)
Top fan
3 x 120/140 mm
Rear fan
1 x 120/140 mm (1 x Dynamic X2 GP-14 included)
Bottom fan
2 x 120/140 mm
Dust filters
Top, 2 x front, full length bottom
Fixed straps
Yes
Cable routing grommets
Yes
Captive thumbscrews
HDD brackets, SSD brackets, PSU bracket
Left side panel
Tempered glass
Right side panel
Industrial sound-damped steel or Tempered glass
Compatibility
Motherboard compatibility
E-ATX (max 285 mm) / ATX / mATX / mITX
Power supply type
ATX
PSU max length
250 mm (with HDD cage installed)
GPU max length
Storage layout: 315 mm - Open layout: 491 mm (467 mm w/ front fan)
CPU cooler max height
185 mm
Front radiator
Up to 360/280 mm
Top radiator
Up to 360/420 mm
Rear radiator
120 mm
Bottom radiator
Up to 240/280 mm
Cable routing space
30 mm
Other
Package contents
Define 7 case. Accessory box. User manual. Ventilated top. 4 x HDD/SSD trays (for a total of 6)
Item Dimension (L"xW"xH")
22 x 15 x 26
Weight
62.00 LB
Warranty Information
2 YEARS


Package Contents:
  • Define 7 Black TG Dark Tint
  • Accessory Box
  • User Manual
  • Ventilated Top
  • 4 x HDD/SSD Trays

Features

Package Contents:
  • Define 7 Black TG Dark Tint
  • Accessory Box
  • User Manual
  • Ventilated Top
  • 4 x HDD/SSD Trays



Country of Origin:
China



Specs

Power Description
Power Supply InstalledNo
Number of Power Supplies Supported1
Number of Power Supplies Installed0
Physical Characteristics
Product Material
Form FactorMid-tower
Weight (Approximate)29.65 lb
Product ColorBlack
Height18.7"
Width9.4"
Depth21.5"
Warranty
Limited Warranty2 Year
I/O Expansions
Number of Total Expansion Slots9
Interfaces/Ports
Total Number of Audio Out Ports1
Total Number of USB Ports5
Total Number of Audio In Ports1
Bays
Number of Internal 5.25" Bays1
Number of Internal 2.5" Bays2
Number of Total Expansion Bays9
Number of Internal 2.5"/3.5" Bays6
General Information
Brand NameFractal Design
Manufacturer Website Addresshttp://www.fractal-design.com
Marketing InformationDefine 7
Re-defining versatility.
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use. The dual-layout interior, industrial sound damping, and classic styling make it an easy choice for any design-conscious PC builder in need of a versatile and dependable case that accommodates ambitious builds and leaves you room to grow.
Product TypeComputer Case
Product NameDefine 7 Black TG Dark Tint
ManufacturerFractal Design
Manufacturer Part NumberFD-C-DEF7A-03
Product LineDefine 7
Technical Information
Motherboard Supported
Installed Fan Size5.51"
Number of Fans Supported9
Number of Fans Installed4
