Fractal Design
Fractal Design Define Mini C TG Computer Case with Windowed Side Panel (fd-ca-def-mini-c-bk-tg)
(No reviews yet)
Write a Review
- SKU:
- 18058717
- MPN:
- fd-ca-def-mini-c-bk-tg
- Availability:
- Out of stock
- Stock Update:
- 01/10/2022 03:33:14 AM PST
- Stock Update:
- 01/10/2022 03:33:14 AM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: FD-CA-DEF-MINI-C-BK-TG
- Features:
- Define Series sound dampening with ModuVent technology for silent operation in a compact full ATX or Micro ATX form factor
- Optimized for high airflow and silent computing
- Tempered glass side panel for a clean looking exterior with full interior visibility
- Side and front panels are lined with industrial-grade sound dampening material
- Flexible storage options with room for up to 5 drives
- Comes with two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans optimized to deliver maximum airflow while still maintaining a low noise level
- Equipped with 5 PCI expansion slots for powerful dual GPU setups.
- Open air designed interior creates an unobstructed airflow path from the front intake to the rear exhaust
- Easy-to-clean high airflow nylon filters on the front and base with full PSU coverage and front access for convenience
- Includes optional top filter to prevent dust buildup when ModuVent is removed for additional fan slots

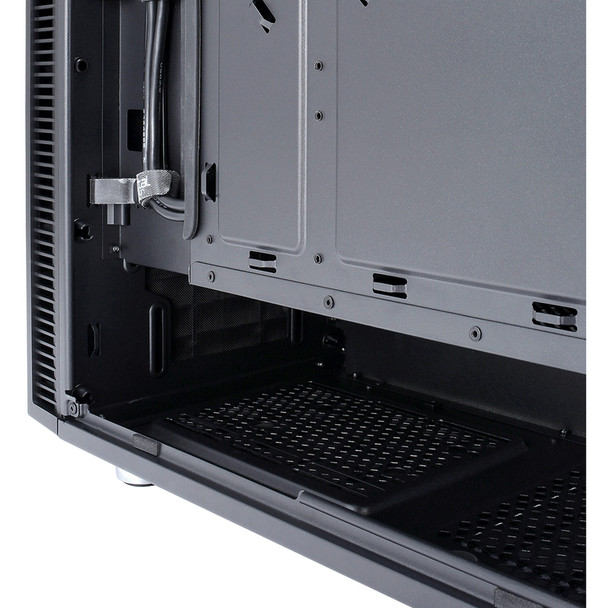

- Power supply shroud conceals drive cage and excess cabling for an even quieter and cleaner looking interior free of airflow obstructions
- Case Type: MicroATX Case
- Material: N/A
- M/B Type: MicroATX, ITX
- Drive Bays: 5
- Internal Bay: 2x 3.5" or 2.5" drive, 3x Dedicated 2.5" drive
- Expansion Slots:7
- Cooling System:
- Top: 2x 120/140mm Fan Vents (Fans not Included)
- Front:2x 120 or 2x 140mm Fan Vents (1x Dynamic X2 GP-12 included)
- Rear: 1x 120mm Fan Vent (1x Dynamic X2 GP-12 included)
- Bottom: 1x 120mm Fan Vent (Fan not Included)
- Dust Filters: Bottom fan + PSU Front fans Top panel
- Radiator:
- Front: 120/240mm 140/280mm (max width 144mm)
- Top: 120/240mm (max component height on motherboard 40mm)
- Rear: 120mm (max width 125mm)
- Side Windows: Yes
- Maximum Compatibility:
- VGA Card Length: 315 mm (w/ front fans mounted)
- CPU Cooler Height: 172 mm
- Cable Routing: 15-35mm space
- Power Supply: None, 175mm Max ATX PSU Length
Features
Package Contents:
- Define Mini C TG Computer Case with Windowed Side Panel
- User Manual
- Accessory Box
- Optional Top Filter
Specs
| Power Description | |
| Power Supply Installed | No |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | No |
| Physical Characteristics | |
| Product Material | Tempered Glass |
| Form Factor | Mini-tower |
| Weight (Approximate) | 14.99 lb |
| Product Color | Black |
| Height | 15.7" |
| Color Family | Black |
| Width | 8.3" |
| Depth | 15.7" |
| I/O Expansions | |
| Total Number of Expansion Slots | 6 |
| Bays | |
| Number of Internal 2.5" Bays | 3 |
| Number of Total Expansion Bays | 5 |
| Number of Internal 3.5" Bays | 2 |
| General Information | |
| Brand Name | Fractal Design |
| Manufacturer Website Address | http://www.fractal-design.com |
| Marketing Information | So many cases on the market today are made to be all things to all people. However, for many this results in a chassis full of empty bays, unused mounts and excess bulk. Created for those who demand a flexible platform for a powerful ATX or Micro ATX build that wastes no space, the Define C TG Series is the perfect solution to satisfy this balance of capacity and efficiency while opening up the side thanks to a full tempered glass side panel. Smaller than the usual ATX and Micro ATX case, the Define C TG and Define Mini C TG with its optimized interior provides the perfect base for users. The open air design offers unobstructed airflow across your core components with high performance and silent computing in mind at every step. Extensive cooling support via both air and water are offered to make sure even the most powerful systems can be cooled effectively. Carrying signature Define series traits, the Define C TG Series brings with it that iconic front panel design, dense sound dampening material throughout and ModuVent technology in the top panel. Those wanting to remove the ModuVent to add more fans or a radiator can install in its place the new magnetic dust filter and a built in power supply shroud helps offer an unmatched level of cable management. Our team of engineers in Sweden made sure performance without restrictions was paramount. With innovative design, the Define C TG Series brings your system together in a truly exquisite way, reminding us why we choose Fractal Design. |
| Product Type | Computer Case |
| Product Name | Define Mini C TG Computer Case with Windowed Side Panel |
| Manufacturer | Fractal Design |
| Manufacturer Part Number | FD-CA-DEF-MINI-C-BK-TG |
| Product Line | Define Mini C TG |
| Technical Information | |
| Motherboard Supported |
|
| Installed Fan Size | 4.72" |
| Number of Fans Supported | 5 |
| Number of Fans Installed | 2 |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
