Fractal Design

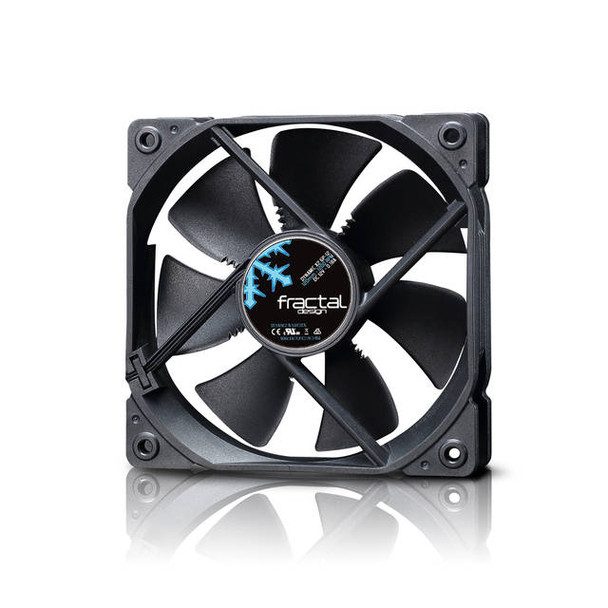

Fractal Design Dynamic X2 GP-12 Black (FD-FAN-DYN-X2-GP12-BK)
(No reviews yet)
Write a Review
- SKU:
- 18252867
- MPN:
- fd-fan-dyn-x2-gp12-bk
- Availability:
- Usually ships the same or next business day. In stock at our CA warehouse.
- Shipping:
- Calculated at Checkout
- Stock Update:
- 07/07/2025 10:39:16 PM PST
Bulk discount rates
Below are the available bulk discount rates for each individual item when you purchase a certain amount
| Buy 2 | and pay only $25.45 each 25.45 |
| Buy 3 | and pay only $23.25 each 23.25 |
| Buy 4 | and pay only $21.68 each 21.68 |
| Buy 5 - 9 | and pay only $21.02 each 21.02 |
| Buy 10 or above | and pay only $19.23 each 19.23 |
- Stock Update:
- 07/07/2025 10:39:16 PM PST
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: FD-FAN-DYN-X2-GP12-BK
- Features:
- High grade LLS bearing with class leading 100,000 hours MTBF
- Equipped with a counter-pull magnet that reduces the axial tension on the bearing
- Fan geometry optimized for a good balance between static pressure and maximum airflow, resulting in good performance in all usage scenarios
- Aerodynamically shaped stator struts including the wire strut. Helps reduce noise and unwanted turbulence
- Stator struts sit on a wide angle to the trailing edge of the blades which result in a lower noise level and smoother noise profile
- Strategically placed notches near the fan hub on the trailing edge of the blades further reducing the humming noise produced when the blades pass the stator struts
- A "trip wire" on the rear side of the blades near the leading edge. The trip wire introduces a larger turbulent boundary layer at an earlier stage, this delays the layer separation and improves both airflow and noise characteristics.
- The customized design of the Dynamic Series fans contributes to a beautiful, cool build
- Rotational Speed: 1200 RPM
- Acoustical Noise: 19.4 dB (A)
- Maximum Air Flow: 52.3 CFM
- Maximum Pressure: 0.88 mm H2O
- Actual Input Power: 1.32 W
- Maximum Rated Input Current: 0.18 A
- Nominal Input Voltage: 12 V
- Minimum Startup Voltage: 4 V
- Screw Hole Pattern: 105 x 105 mm
- Connector: 3-pin fan header
- Bearing: LLS
- Number of Blades: 7
- MTBF: 100,000 hours
- Cable Length: 500 mm
- Cable Type: Black Ribbon Cable
- Color: Black blades, Black frame
- Dimensions: 120.0 x 120.0x 25.0mm
- Weight:119.0 g
- Package Contents: Dynamic X2 Series fan; Screw pack with 4 metal fan screws
Features
Package Contents:
Yes
Case
Waste Electrical and Electronic Equipment Directive (WEEE)
China
- Dynamic X2 GP-12 Black
- 4 x Metal Fan Screws
Environmentally Friendly:
Yes
Application/Usage:
Case
Environmental Compliance:
Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin:
China
Specs
| Physical Characteristics | |
| Weight (Approximate) | 4.20 oz |
| Maximum Fan Diameter | 4.72" |
| Fan Width | 4.72" |
| Fan Depth | 0.98" |
| Fan Height | 4.72" |
| Interfaces/Ports | |
| Connectors | 3-pin |
| Fan Information | |
| Fan Bearing Type | LLS Bearing |
| Maximum Airflow | 52.30 CFM |
| Fan Speed (Max) | 1200 rpm |
| Noise Levels (A-Weighted) | 19.4 dB(A) |
| General Information | |
| Brand Name | Fractal Design |
| Manufacturer Website Address | http://www.fractal-design.com |
| Marketing Information | Fractal Design Dynamic X2 GP-12 and GP-14 are true all-purpose fans, offering good airflow and best in class 100,000 hours MTBF thanks to the new LLS bearing. Their customized design creates a beautifully aesthetic fan to help keep your system cool, yet quiet. Designed together with our high-end Venturi Series, the Dynamic X2 Series fans feature aerodynamic elements, similarly found in airplane wing designs, with significant noise-reducing elements. Available in two color combinations: pure black, or the classic Fractal Design signature color scheme with white blades and black frame. The Dynamic X2 series are the perfect companion for users looking to make use of an all-purpose fan with an exceptional lifespan. |
| Product Type | Cooling Fan |
| Product Name | Dynamic X2 GP-12 Black |
| Manufacturer | Fractal Design |
| Manufacturer Part Number | FD-FAN-DYN-X2-GP12-BK |
| Product Model | X2 GP-12 |
| Product Line | Dynamic |
Warranty Information
All Items are Brand New, Factory Sealed and come with a standard warranty. [Read our policies]
