Fractal Design Ion Gold FD-P-IA2G-550 Power Supply (FD-P-IA2G-550)
(No reviews yet)
Write a Review
- SKU:
- 18047873
- MPN:
- fd-p-ia2g-550
- Availability:
- Out of stock
- Stock Update:
- 01/02/2026 08:58:19 PM PST
- Stock Update:
- 01/02/2026 08:58:19 PM PST
Frequently bought together:
Description
This item is brand-new, factory sealed.
Specifications
- Mfr Part Number: FD-P-IA2G-550
- Features:
- 80PLUS Gold Efficiency rating
- ATX 2.52 compatible, including tighter timing limits
- DC-DC design for more precise output and modern compatibility
- Fully compatible with modern components

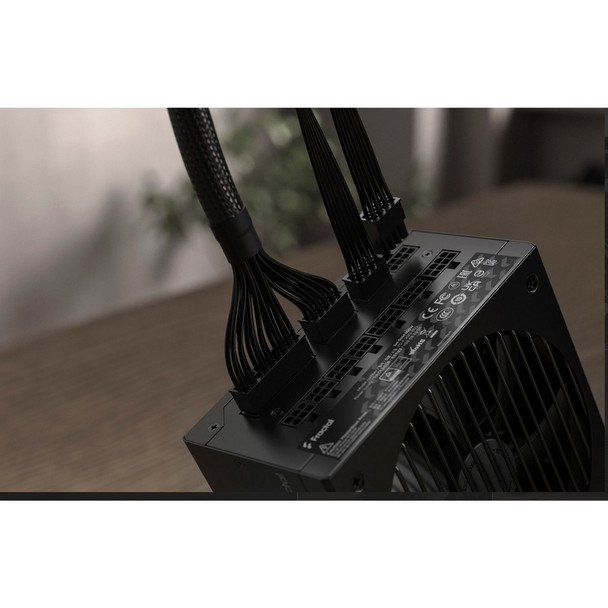

- Fully modular design for reduced clutter and maximum ease of installation

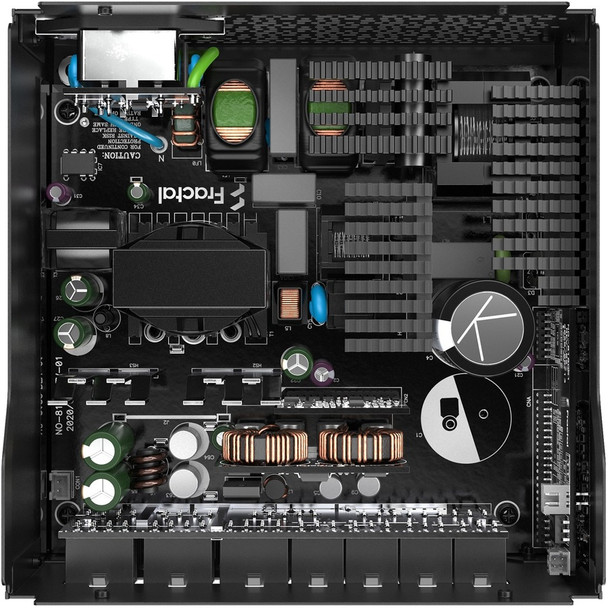

- Capacitors include Premium Japanese 105C for reliability and durability
- Large custom-tailored 140 mm fan with exceptionally low minimum speed
- 150 mm depth allows for compact installation or extra cable room
- 7-year warranty and a full electrical protection suite for peace of mind
- Input:
- Voltage: 100 ~ 240 VAC
- Current: 10-5 A
- Frequency Range: 50 ~ 60 Hz
- MTBF: 100,000 hours
- PSU specification compliance:ATX12V 2.52 / EPS12V 2.92
- Maximum power: 550W

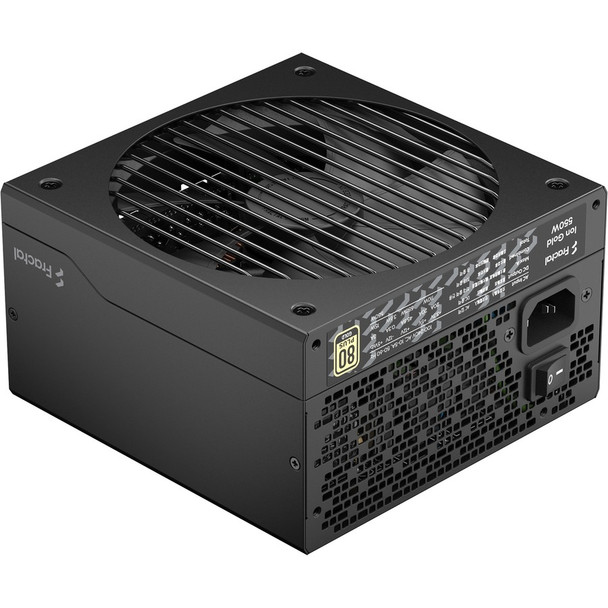

- Fan: 140 mm LLS bearing Fractal Design Dynamic series fan
- PFC: Active
- PSU color:Black
- Cable color: Black
- Modular cables:Fully modular
- 80 PLUS Certification:80 PLUS GOLD Certified

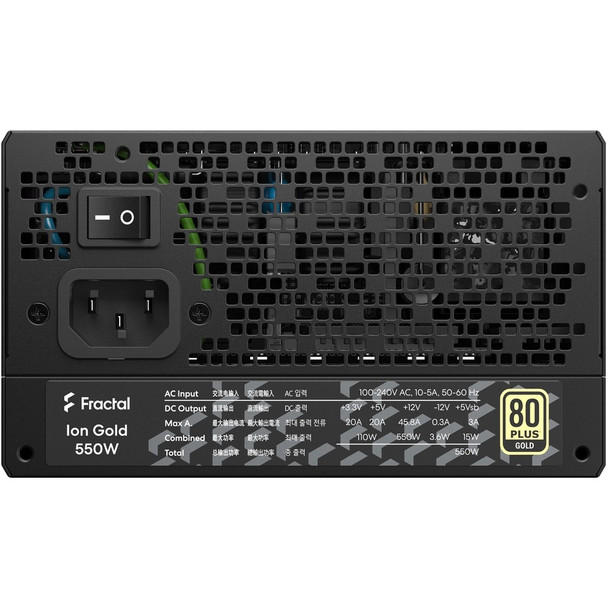

- Output: +3.3V @ 20A, +5V @ 20A, +12V @45.8A, +5VSB @ 3A, -12V @ 0.3A

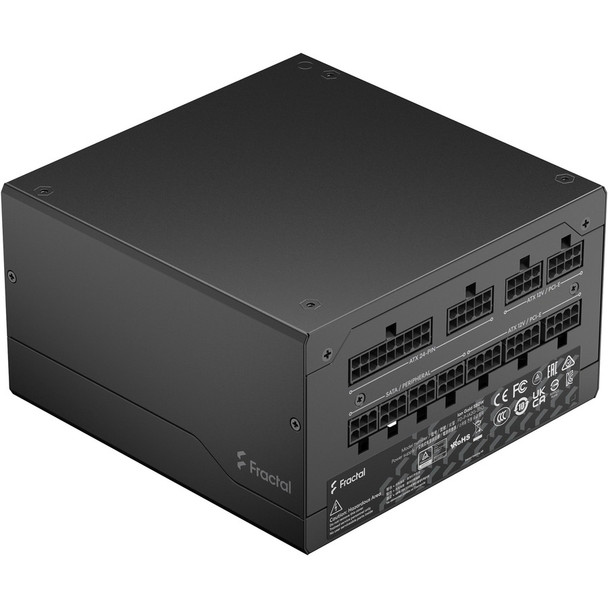

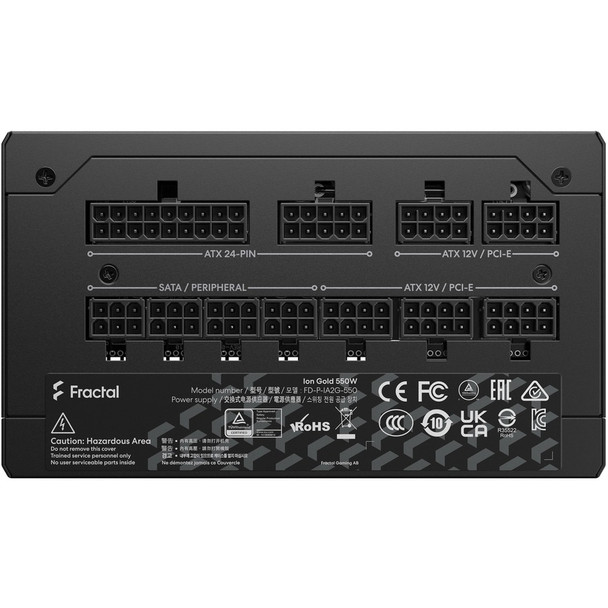

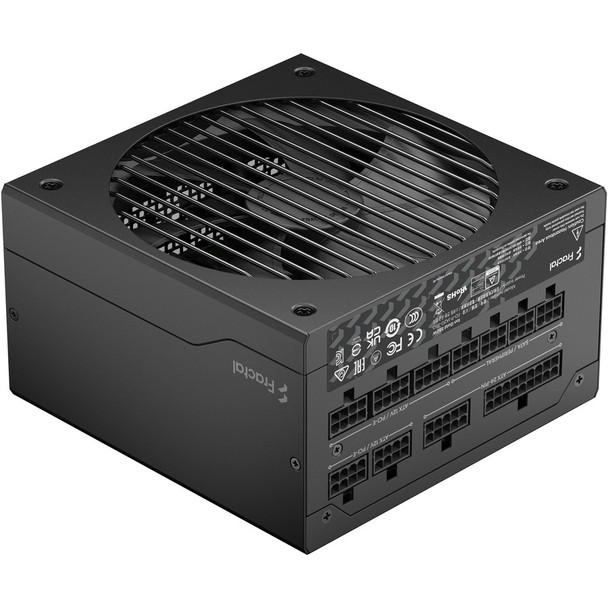

- Connectors: 1x 24pin ATX Main Connector, 1x 8pin (4+4) EPS Power Connector, 2x 8pin(6+2)PCI-Express Connector, 6x SATA Connectors, 3x Peripheral,
- Approvals: CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
- Standby efficiency:ErP 2013 (<0.45W @230 VAC, 45 mA load on +5Vsb)
- +12V Rails:Single
- Sleep State Compliance:C6/C7
- Safeguards:
- ?Over voltage protection
- Under voltage protection
- Over power protection
- Short circuit protection
- Over current protection
- Over temperature protection
- Unit Dimensions (LxWxH): 150 x 150 x 86 mm
- Unit Weight: 2.06 kg
- Package Dimensions (LxWxH): 325 x 110 x 210 mm
- Package Weight: 2.46 kg

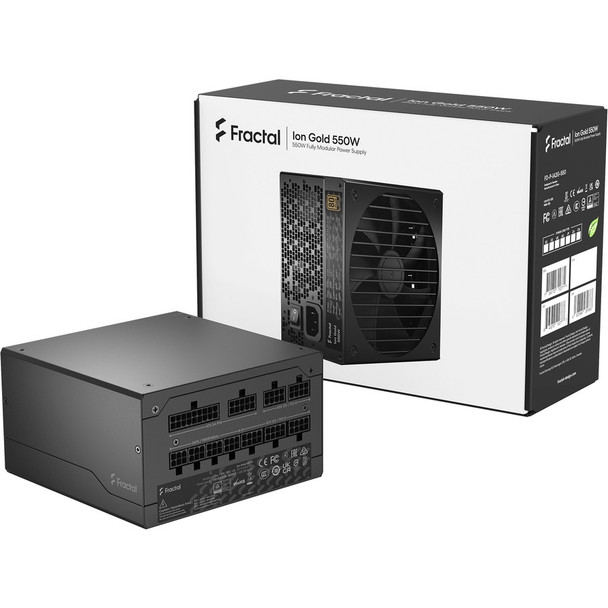

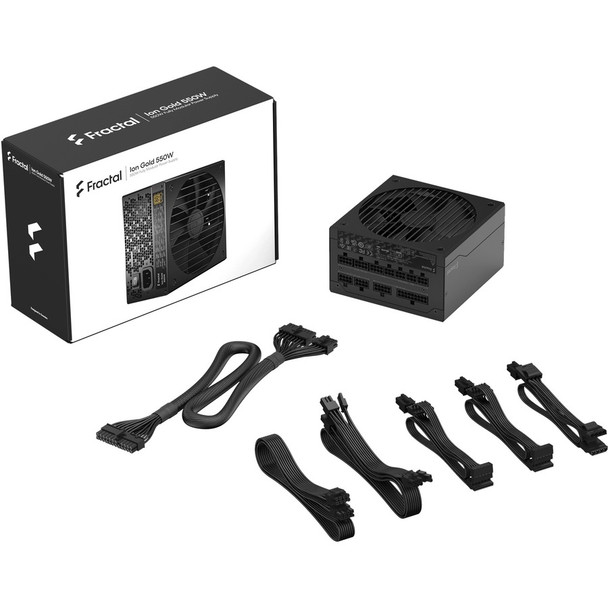

Package Contents:
- Ion Gold FD-P-IA2G-550 Power Supply
- Modular Cables
- Screw Pack
- Cable Ties
- AC Power Cord (localized)
- User Manual
Features
Package Contents:
Yes
Energy-related Products Directive (ErP)
80 Plus Gold
China
- Ion Gold FD-P-IA2G-550 Power Supply
- Modular Cables
- Screw Pack
- Velcro Cable Ties
- AC Power Cord (localized)
- User Manual
Environmentally Friendly:
Yes
Energy Efficiency Compliance:
Energy-related Products Directive (ErP)
Energy Efficiency Certification:
80 Plus Gold
Compatibility:
Fractal Design Tower Cases:
- Meshify 2
- Meshify 2 Compact
- Define 7
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Waste Electrical and Electronic Equipment Directive (WEEE)
China Restriction of Hazardous Substances (China RoHS)
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
Country of Origin:
China
Specs
| Power Description | |
| Output Power | 550 W |
| Output Current |
|
| Input Voltage |
|
| Output Voltage Detail |
|
| Output Voltage |
|
| Physical Characteristics | |
| Form Factor |
|
| Weight (Approximate) | 4.54 lb |
| Height | 3.4" |
| Width | 5.9" |
| Warranty | |
| Limited Warranty | 7 Year |
| General Information | |
| Brand Name | Fractal Design |
| Manufacturer Website Address | http://www.fractal-design.com |

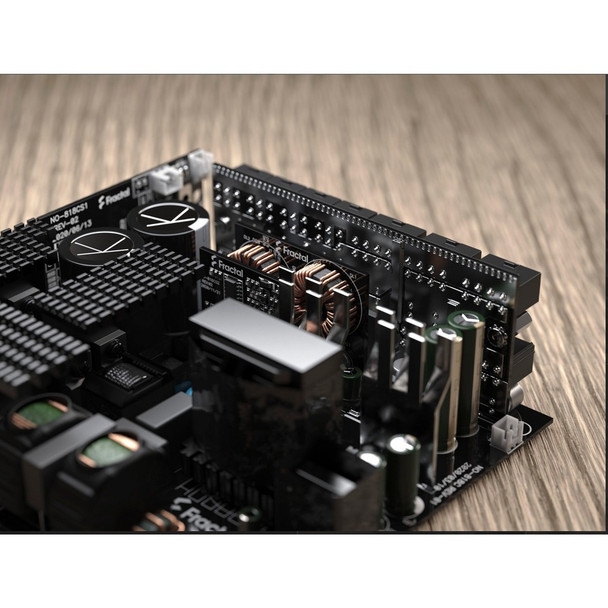

| Marketing Information | The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability. 80PLUS® Gold Efficiency rating for reduced noise and energy consumption Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability Fully modular design for reduced clutter and maximum ease of installation The power of balance Great performance. Fully modular. Quiet operation. 80 PLUS® Gold certified High-efficiency performance wastes less energy and reduces heat generation More precise electrical output and full compatibility with modern components through DC-DC design Quality components consistently deliver tight voltage regulation with low ripple and noise Premium capacitor(s) Premium Japanese 105°C capacitor(s) on the primary side provide superior reliability and durability Fully modular design Reduced clutter results in a clean and simple installation Compact 150 mm depth allows for installation in compact cases Provides additional cable management room in larger cases Large low-speed fan Ion Gold comes equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed Take a closer look at the Ion Gold DC-DC design for more precise electrical output. ATX 2.52 compatible for tighter timing limits. Full protection suite and 7-year warranty. |
| Product Type | Power Supply |
| Product Name | Ion Gold FD-P-IA2G-550 Power Supply |
| Manufacturer | Fractal Design |
| Manufacturer Part Number | FD-P-IA2G-550 |
| Product Model | FD-P-IA2G-550 |
| Product Line | Ion Gold |
| Technical Information | |
| Specification Compliance | ATX12V/EPS12V |
| Number of Fans | 1 |
| Modular | Yes |
