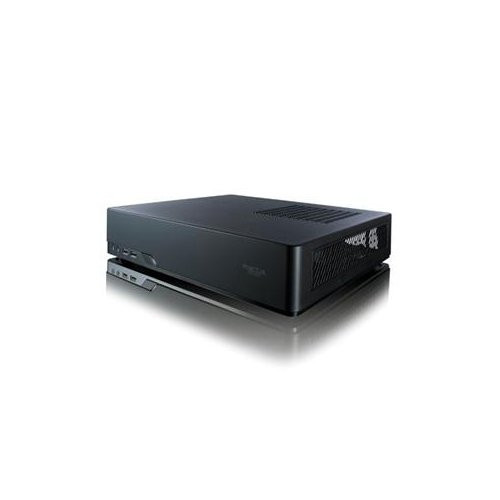

Fractal Design Node 202 Computer Case - Black - 2 X Bay - 1 X 450 W - Power Supply Installed - Mini Itx Motherboard Supported - 7.72 Lb - 2 X Fan[s] Supported - 2 X Internal (fd-mca-node-202-aa-us)

This item is brand-new, factory sealed.

The Node 202 is the ultimate PC case for those looking for a beautifully designed, compact chassis that can house a capable gaming build.

This small footprint is an intelligently built unit where extreme detail was placed into the design phase to get every line and spec in perfect harmony. With both horizontal and vertical orientation possibilities, the Node 202 can be placed anywhere in the house. The sleek design makes it very attractive next to the TV in the living room or on your desk in the office.

The internal layout of the Node 202 keeps the hot components separate and has them all placed in proximity of free-flow air so the case will run cool despite not having any extra case fans.

The Integra SFX 450W PSU that comes inclusive with the enclosure provides stable power to the most demanding systems. It comes with customized connectors and tailored cables perfectly fitted for use within the Node 202, contributing to hassle-free installation and cable management.

Key features

Featuring a sleek and elegant design that will fit in any space or room

Extremely small footprint with a volume of only 10.2 liters

A highly versatile case that can be set up both vertically and horizontally

Supports Mini-ITX motherboards, SFX power supplies and graphics cards up to 310mm in length

Provides a smart thermal interior design highlighting separate motherboard and graphics card chambers

Strategically placed air filters for a dust free interior

Includes a Fractal Design Integra SFX 450W power supply with specialized cables for the Node 202 case, providing the right connectors with precise cable lengths

Quiet and efficient operation at 80PLUS Bronze efficiency with a 3 year warranty
Specifications
Mini ITX motherboard compatibility
2 - 2.5 SSD unit positions (height limitation 10.5mm)
2 expansion slots
2 - 120mm optional fan positions in graphics card chamber
CPU coolers up to 56 mm in height
PSU compatibility: SFX PSUs up to 130mm long
Graphics card compatibility: Maximum dimension of graphics card is 310x145x47mm (LxHxD)
Can be placed both vertical and horizontal position
3 dust filters included (for CPU, GPU and PSU)
Case volume: 10.2 litres
Colors available: Black
Specifications - Integra SFX 450W
80PLUS Bronze certification
80mm, temperature controlled fan
Maximum operating temperature at full load: 50^oC (50^oC at 100%)
Fully Intel Haswell C6/C7 compliant
3 years warranty
Taiwanese capacitors
OPP / OVP / UVP / SCP / OCP Protection
Can be placed both vertical and horizontal position
100,000 hours life expectancy (MTBF)
SFX 3.3 PSU specification compliance
ErP 2013 compliant (<0.5W system power draw)
Colors available: Black
Cable configuration
1xATX 24-pin (20+4) 300 mm
1xATX 12V 8-Pin (4+4) 400 mm
2xPCI-E 8-pin (6+2) 400 + 100 mm
2xSATA 150 + 100 mm
DC Output - Integra SFX 450W
3.3V
21A
5V
22A
3.3 and 5V combined
120W
12V1
18A
12V2
18A
-12V
0.5A
5V Standby (+5Vsb)
2.5A
Total power
450W
Front interface
2 - USB 3.0
Audio in/out
Power button with LED (white)
Package contents
Node 202 compupter case
Integra SFX 450W power supply
Accessory box
User manual
Vertical stand
Riser card for graphics card
Item Dimension (L"xW"xH")
16 x 6 x 19
Weight
14.00 LB
Warranty Information
2 years
