Fractal Design Venturi HF-14 Cooling Fan (fd-fan-vent-hf14-wt)

(No reviews yet) Write a Review
SKU:
18259682
MPN:
fd-fan-vent-hf14-wt
Availability:
Out of stock
Stock Update:
01/03/2023 12:37:55 PM PST
  • Main
  • Alternate-Image5
  • Alternate-Image4
  • Alternate-Image3
  • Alternate-Image2
  • Alternate-Image1

Out of stock

Stock Update:
01/03/2023 12:37:55 PM PST

Description

This item is brand-new, factory sealed.

Specifications

  • Mfr Part Number: FD-FAN-VENT-HF14-WT
  • Features:
    • Featuring true FDB-bearings, providing silent operation coupled with a long lifespan
    • Equipped with a counter-balanced magnet that reduces the axial tension on the bearing
    • Features integrated vibration-dampening corners, made from solid high-quality synthetic rubber
    • Dense, sturdy construction, made from high grade glass fiber reinforced thermoplastic polymer
    • Fan geometry is optimized for high pressure, delivering high performance results in high restriction usage scenarios, such as in use with large dense heatsinks or water cooling radiators.
    • Featuring PWM control with a very wide speed range, starting at only 400RPM (400 +/- 100 RPM), ideal for CPU heatsinks or radiators, where the motherboard can control the fan speed based on the CPU temperature. (HP PWM Version only)
    • Aerodynamically shaped thin stator struts reduce noise and unwanted turbulence.
    • Strategically placed notches on the blades further reduce and diffuse any humming noise produced when the blades pass the stator struts
    • The trip wire technology introduces a micro-turbulent layer that combats elements that negatively affect performance, resulting in quieter operation

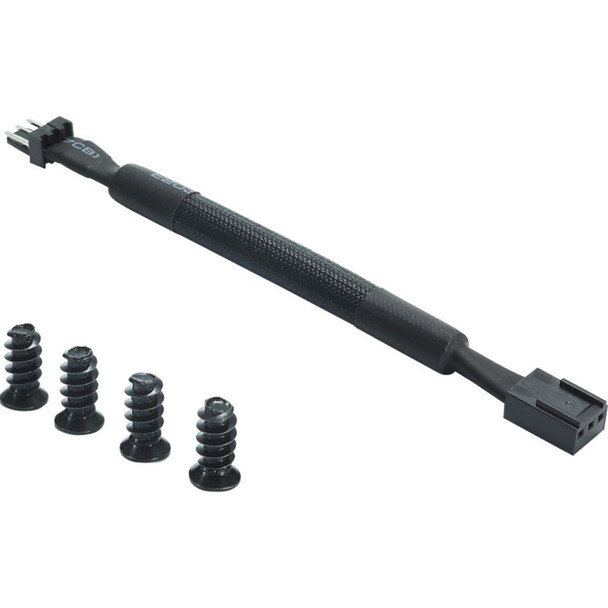

    • Comes with a PWM Y-cable, for connecting additional fans to a single PWM header on your motherboard or PWM fan controller
    • 140mm fans come with an additional set of vibration-dampening corners are included that lends compatibility with 120mm fan mounts (105mm screwspacing). This enables the use of 140mm fans on many CPU coolers.
    • Available in 120mm and 140mm fan sizes
    • Available in two color combinations, Black blades, black corners, dark grey ("Gunmetal") frame and White blades, black corners, black frame
  • Rotational Speed: 1200 RPM
  • Acoustical Noise: 26.5 dBA
  • Maximum Air Flow: 118.2 CFM / 200.8 m3/h
  • Maximum Pressure: 0.95 mm H2O
  • Actual Input Power: 2.2 W
  • Maximum Rated Input Current: 0.3 A
  • Nominal Input Voltage: 12V
  • Minimum Startup Voltage: 4V
  • Low Speed Adapter:
    • Speed: 850 RPM
    • Static Pressure: 0.59 mm H2O
    • Air Flow: 78.5 CFM / 133.4 m3/h
    • Noise Level: 18.3 dBA
  • Screw Hole Pattern: 125 x 125 mm; 105 x 105 mm
  • Connector: 3-pin fan header
  • Bearing: FDB
  • Number of Blades: 11
  • MTBF: 150,000 hours
  • Cable length: 500 mm
  • Cable Type: Braided all-black ribbon wire
  • Color: Whiet
  • Dimensions: 140.0 x 140.0 x 25.0 mm
  • Weight: 202.0 g
  • Package Contents:
    • Venturi Series fan
    • Screw pack with 4 metal screws
    • Low speed adapter
    • 4 additional rubber corners, with 105mm hole pattern

Features

Package Contents:
  • Venturi HF-14 Cooling Fan
  • Screw Pack with 4 x Metal Screws
  • Low-speed Adapter
  • 4 x Additional Rubber Corners, with 105mm Hole Pattern



Environmental Certification:
WEEE



Environmentally Friendly:
Yes



Application/Usage:
Case



Country of Origin:
China



Specs

Physical Characteristics
Product Material
Fan Diameter Details<p>1 x 140mm</p>
Weight (Approximate)7.04 oz
Maximum Fan Diameter5.51"
Fan Width5.51"
Fan Depth0.98"
Height5.5"
Fan Height5.51"
Width5.5"
Interfaces/Ports
Connectors3-pin
Fan Information
Airflow Details<p>1 x 118.2CFM</p>
Fan Life17.1 Year
Number of Fans1
Fan Bearing TypeFluid Dynamic Bearing
Maximum Airflow884.2 gal/min
Fan Speed (Max)1200 rpm
Noise Levels (A-Weighted)26.5 dB(A)
General Information
Brand NameFractal Design
Manufacturer Website Addresshttp://www.fractal-design.com
Marketing InformationThe Venturi High Flow Series fans, HF-14, are optimized for low-restriction airflow environments, making them an excellent choice for computer case fans, or other low-restriction usage scenarios.
Designed with a variety of performance-increasing and noise-reducing features, these fans can move an amazing amount of air compared to other fans at the same, minimal noise level.
The HF-14 comes with two sets of solid vibration-dampening rubber corners: one for standard 140mm fan hole spacing (125mm) and one compatible with the standard 120mm hole spacing (105mm). The Venturi High Flow Series fans are ideal for those looking for a perfect balance between high performance and low noise built from sturdy, high quality materials.
Product TypeCooling Fan
Product NameVenturi HF-14 Cooling Fan
ManufacturerFractal Design
Manufacturer Part NumberFD-FAN-VENT-HF14-WT
Product ModelVenturi HF-14
Product LineVenturi
