Geovision

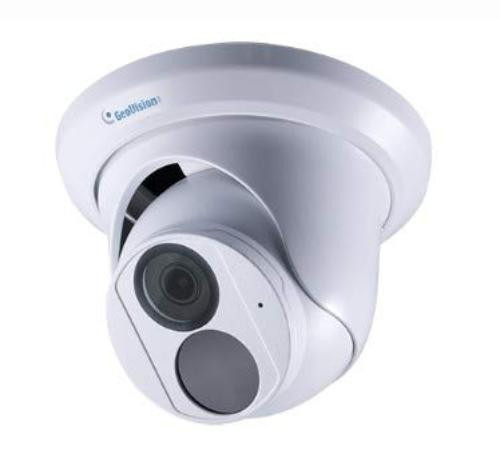

Geovision GV-EBD4701 2688x1520 Eyeball Dome 4mp Perp 2.8mm Low Lux Wdr 100ft
- SKU:
- 18214711
- MPN:
- gv-ebd4701
- Availability:
- Out of stock
- Stock Update:
- 07/03/2025 11:50:07 AM PST
- Stock Update:
- 07/03/2025 11:50:07 AM PST
Description
This item is brand-new, factory sealed.
Geovision GV-EBD4701 4MP IR WDR Pro 3DNR Outdoor Network Built-in Microphone Eyeball Dome Camera with 2.8mm Lens, RJ45 Connection- 1/3" progressive scan super low lux CMOS
- Lens: 2.8mm fixed Lens - Wide Dynamic Range Pro (WDR Pro)
- Intelligent IR - IR distance up to 30 m (100 ft)
- Built-in microphone - Defog - 3D noise reduction - Motion detection
- IP67 weatherproof - 3-axis mechanism
- Product Dimensions: 5 x 5 x 3.7 inches
- Item Weight: 15.8 ounces
GV-EBD4701 4MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera is an outdoor, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image.
Package Contents:
- GV-EBD4701 Eyeball Dome
- Waterproof Rubber Set
- Screw kit
- Drill Template Paster
- Download Guide
- Warranty Card
Features
- GV-EBD4701 Eyeball Dome
- Waterproof Rubber Set
- Screw kit
- Drill Template Paster
- Download Guide
- Warranty Card
Environmentally Friendly:
Yes
Indoor/Outdoor:
Outdoor
Features:
Removable IR Cut-off Filter
Day/Night
Multi-view Stream
Wide Dynamic Range
Built-in Microphone
SD Card Local Storage
Ingress Protection
Defog
3D Noise Reduction
Motion Detection
Tampering Alarm
Privacy Masking
Built-in IR LED
Automatic White Balance
Auto Gain Control
Audio Detection
Human Detection
Audio Compression
Environmental Compliance:
Restriction of Hazardous Substances (RoHS)
Country of Origin:
Taiwan
Ingress Protection Rating:
IP67
Specs
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Form Factor | Eyeball |
| Weight (Approximate) | 15.87 oz |
| Mount Type |
|
| Diameter | 5" |
| Display & Graphics | |
| Effective Camera Resolution | 4 Megapixel |
| Image Sensor Type | CMOS |
| Field of View | 107° |
| Color Supported | Color |
| General Information | |
| Brand Name | GeoVision |
| Manufacturer Website Address | http://www.geovision.com.tw |
| Marketing Information | Introduction: GV-EBD4701 is an outdoor, network camera equipped with an automatic IR-cut filter and an IR LED for day and night surveillance. The camera adheres to IP67 standards. The camera supports H.265 video codec to achieve better compression ratio while maintaining high quality pictures at reduced network bandwidths. With its WDR Pro, it can process scenes with contrasting intensity of lights and produce clear image. |
| Product Type | Network Camera |
| Product Name | 4MP H.265 Super Low Lux WDR Pro IR Eyeball Dome IP Camera |
| Manufacturer | GeoVision, Inc |
| Manufacturer Part Number | GV-EBD4701 |
| Product Model | GV-EBD4701 |
| Exposure | |
| Shortest Shutter Speed | 1/100000 Second |
| Longest Shutter Speed | 1/6 Second |
| Technical Information | |
| Number of IR LEDs | 1 |
| HD Recording | Yes |
| Recording Formats | HD |
| Night Vision Distance | 98.43 ft |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Video | |
| Maximum Frame Rate | 30 fps |
| Maximum Video Resolution | 2688 x 1520 |
| Video Formats |
|
| Lens | |
| Maximum Aperture | f/2 |
| Lens Type | Fixed |
| Lens Included | Yes |
| Lens Mount Type | M12-mount |
| Maximum Focal Length | 2.80 mm |
| Network & Communication | |
| Remote Management | Yes |
| Connectivity Technology | Wired |
| Environmental Conditions | |
| Maximum Operating Humidity | 95% |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -22°F (-30°C) |
